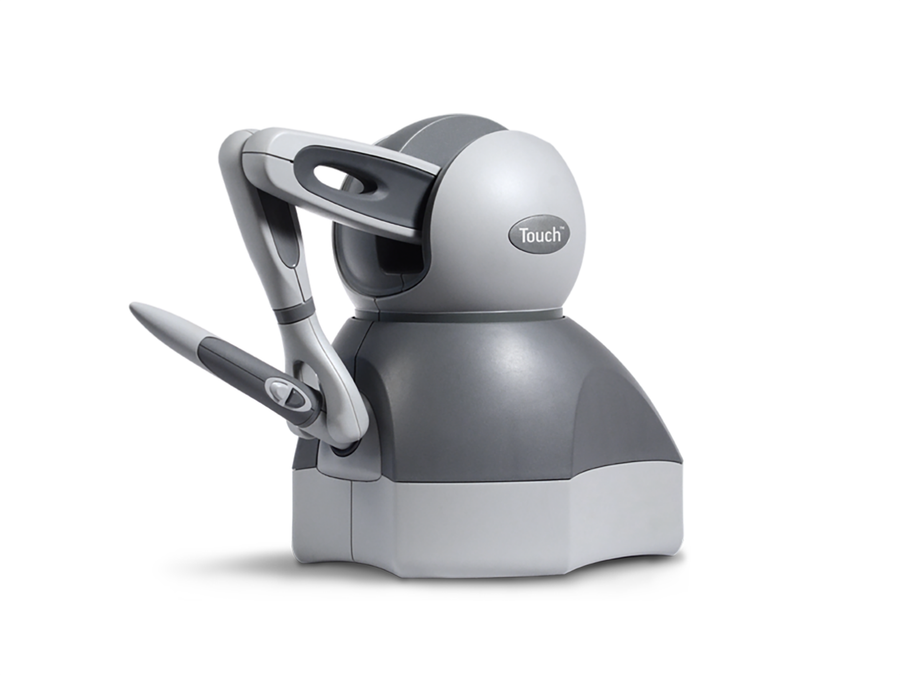

3D Systems 3D Systems Touch Haptic Device

The Touch Haptic Device from 3D Systems is a mid-range professional haptic device that enables users to seamlessly interface with 3D modeling software, and to freely sculpt “3D Clay.” It also enhances scientific or medical simulations, interacts directly with 3D modeled objects on screen, and is perfect for easily maneuvering mechanical components to produce higher quality designs. The built-in motor applies force feedback on the user’s hand, allowing them to actually feel virtual objects and produces true-to-life touch sensations as the user manipulates on-screen 3D objects.

When used with the Geomagic software suite, the Touch enables users to solve complex design and manufacturing challenges, 3D model highly detailed organic shapes, and mashup into existing applications. Its perfect for prototyping new ideas, and creating haptically-enabled products. Touch is also sold as a component of Geomagic Freeform and Geomagic Sculpt, making the entire interface setup just a click away.

List Price:	$2,800.00

Product No. M-12P-CJ5U

The Touch model is the most cost-effective haptic device available on the market today. Featuring a portable design, compact footprint, and USB connectivity to ensure quick installation and ease of use.

Please contact our sales team or stop by the MatterHackers Southern California showroom for a demo session!

ADD THE SENSE OF TOUCH TO YOUR DIGITAL DESIGNS

The Touch Haptic device from 3D Systems provides users with true three-dimensional navigation and force feedback experience, pushing past our sense of sight and integrating the sense of touch into the Geomagic Freeform and Geomagic Sculpt 3D modeling software solutions. Touch Haptic device can accurately measure the 3D Spatial position (along x-, y- And z-axis) and the orientation (roll, pitch, and yaw) of its handheld stylus.

USE TOUCH FOR A DIVERSE RANGE OF APPLICATIONS

Touch Haptic Devices are used in every industry that requires accurate organic designs. Using the sense of touch, users are able to build 3D models faster and with more precision than ever before.

Geomagic software and haptic devices have been successfully used in the following applications:

3D Modeling and Manufacturing
Jewelry, Automotive, Toy and Shoe Design
Medical Surgery and Rehabilitation Simulations
Artwork and Sculpting
Forensic Reconstruction
Training, Simulations, and Skills Assessment
Gaming, Entertainment, and Virtual Reality
Bakeware and Cookery molds and Dies
Teleoperation and Robotic Control
Virtual Assembly and Collision Detection
Applications for the Visually Impaired
Molecular Modeling
Nano Manipulation

SPECIFICATIONS:

Workspace: ~6.4” W x 4.8” H X 2.8” D in ; > 160 W x 120 H x 70 D mm
Range of motion: Hand movement, pivoting at wrist
Nominal position resolution: > 450 dpi ; ~0.055mm
Maximum exertable force and torque at nominal position: 0.75 lbf/3.3 N
Stiffness: x-axis > 7.3 lb/in (1.26 N/mm); y-axis > 13.4 lb/in (2.31 N/mm); z-axis > 5.9 lb/in (1.02 N/mm)
Force feedback (3 Degrees of Freedom): x, y, z
Position sensing/input (6 Degrees of Freedom) [Stylus gimbal]: x, y, z (digital encoders); [Roll, pitch, yaw (±5% linearity potentiometers)]
Interface: USB 2.0

FEATURES:

Portable design and compact footprint
Compact force feedback workspace
6-degree-of-freedom positional sensing
3-degree-of-freedom force feedback
RJ45 compliant onboard Ethernet Port or USB Port
Comfortable molded-rubber stylus with textured paint
Removable stylus
Two integrated momentary stylus switches
Stylus-docking inkwell
Ergonomic design
Supports OpenHaptics toolkit with QuickHaptics micro API
Made of metal components and injection-molded plastics
CE certified
