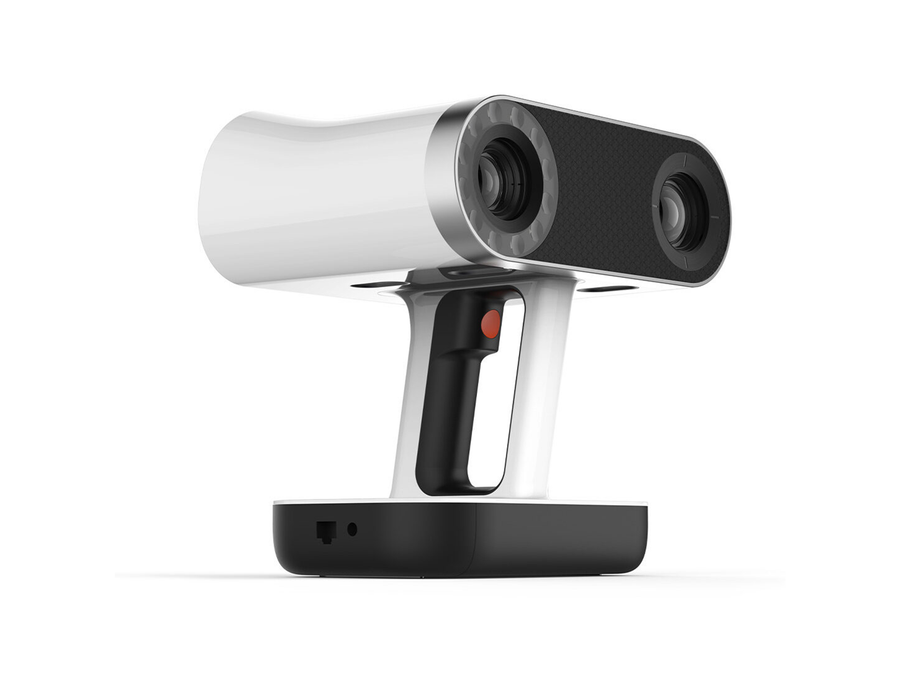

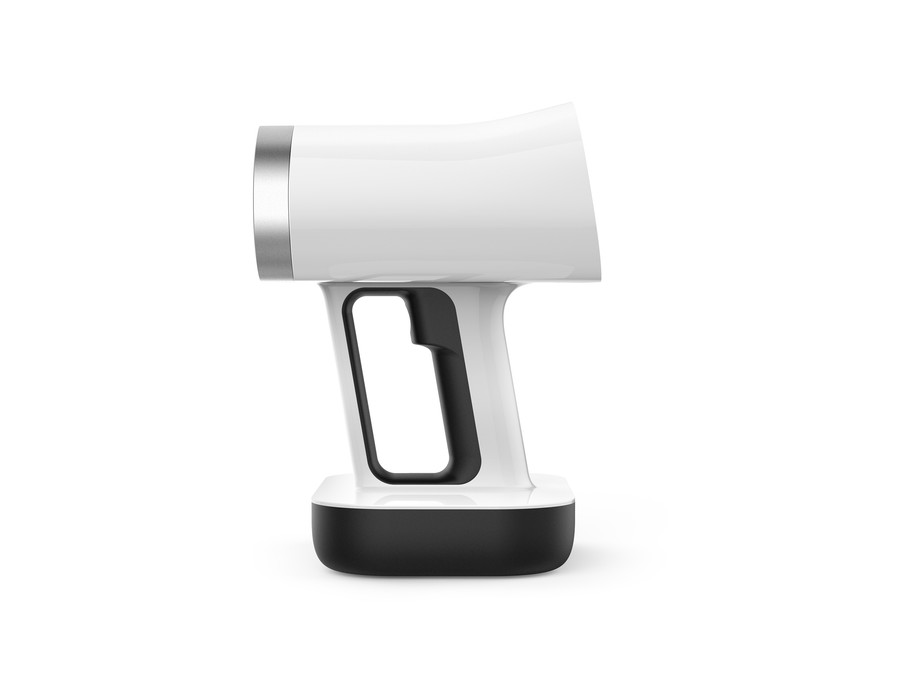

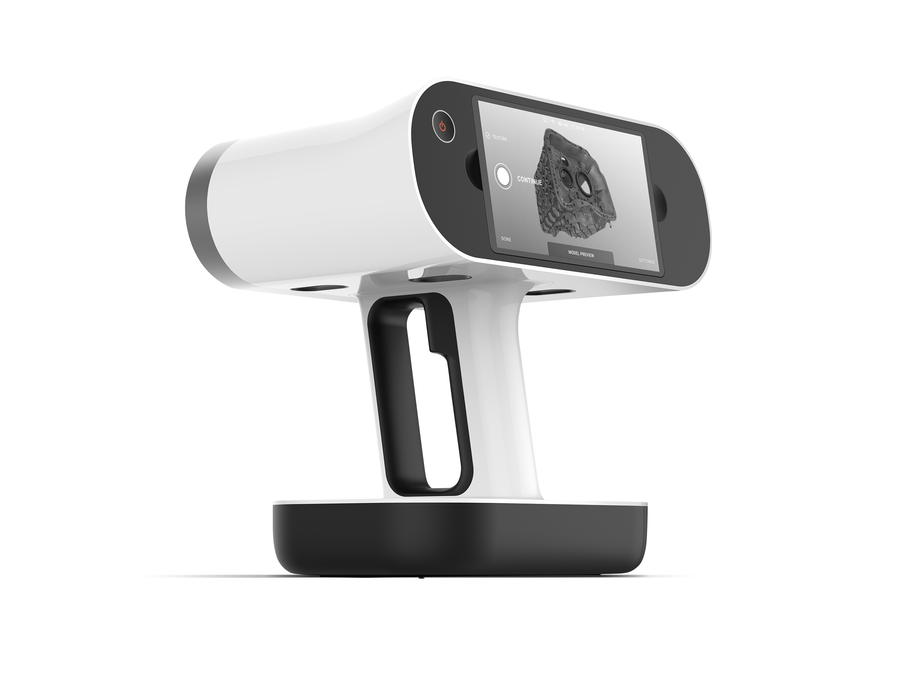

Artec Artec Leo 3D Scanner

The Artec Leo is the world’s first AI-driven, wireless 3D scanner, featuring a built-in powerful NVIDIA processor, 5" HD display, and long-lasting battery for cable-free, computer-free operation. It allows for high-quality 3D scanning of various sized objects with advanced texture and geometry capture, smart data capture, and WiFi connectivity for immediate scan-to-cloud transfer.

  • Fully wireless with AI-driven technology
  • Built-in NVIDIA processor and HD display
  • Advanced texture and geometry capture
loading...
Product No. loading...

Artec Leo

WIRELESS, AI-DRIVEN SCANNER

Meet Artec Leo, the world's first AI-driven, wireless 3D scanner, revolutionizing data capture with its unparalleled ease and accuracy. No cables, no computer—3D scan anything, anywhere with this all-in-one solution that features a built-in NVIDIA Jetson TX2 processor, 5" HD display, and a long-lasting battery. Capturing high-quality 3D data is simpler than ever with the Artec Leo.

Click here to book a demo or consultation with our expert team.

Key Features of the Artec Leo 3D Scanner:

  • Fully wireless 3D scanning, AI-driven
  • Powerful on-board real-time processing
  • Wide object size and range compatibility
  • Advanced texture and geometry capture technology
  • Smart, target-free data capture
  • Scan-to-cloud and WiFi connectivity

CABLE-FREE 3D SCANNING

Experience unparalleled freedom with Artec Leo's wireless, standalone operation. This cutting-edge 3D scanner liberates you from cables and PCs, allowing you to scan anywhere with ease. Its self-contained design ensures mobility and convenience, making it the perfect tool for capturing high-quality data in any setting. Features that make the Leo wire-free include:

  • Exchangeable long-lasting battery
  • Scan-to-cloud data transfer
  • Remote scanner monitoring and controling

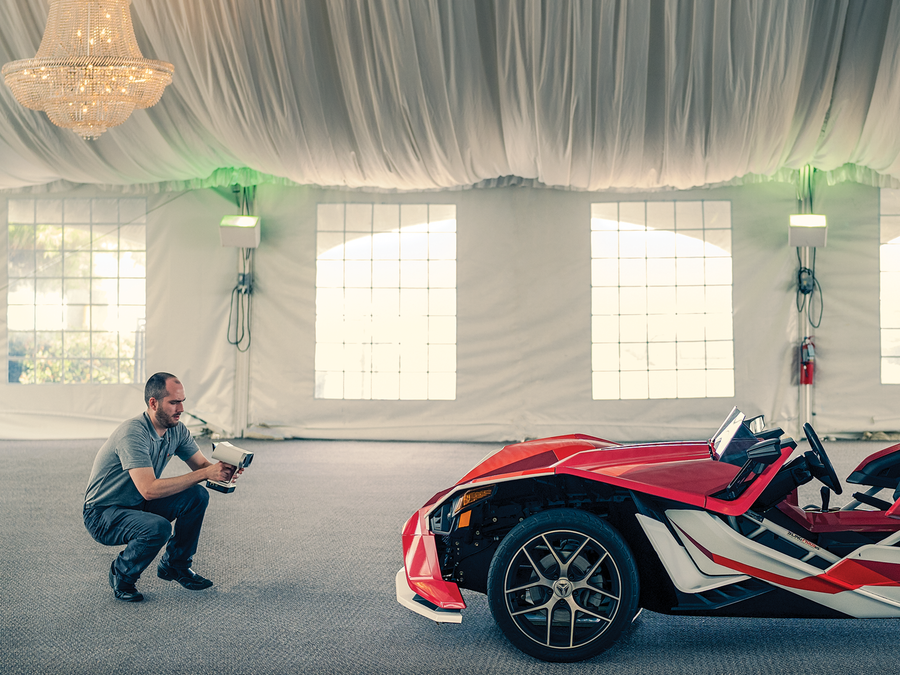

Scan object, environments, and more with the Artec Leo scanner.
Scanning with an Artec Leo means a convenient, streamlined workflow that makes capturing data easier than ever.

CAPTURE SMARTER NOT HARDER

Artec Leo's smart capture capabilities unlocks precision and efficiency, harnessing AI for flawless, target-free scanning. This intelligent technology simplifies data acquisition, delivering superior results effortlessly.

  • AI-Driven Accuracy ensures precise scans every time
  • Target-Free Scanning simplifies the process
  • Quick Process Data captures only the data you need

PREVIEW IN REAL TIME

Artec Leo's real-time preview brings unmatched efficiency to 3D scanning. Accessible via an HD 5" touchscreen display, this powerful feature allows for live feedback directly on the device, quick adjustments, and flawless captures every time.

  • See scans directly on the device
  • Minimize post-scan adjustments on-the-fly
  • Intuitive UI for all skill levels
  • Tiltable screen for the right view at any angle

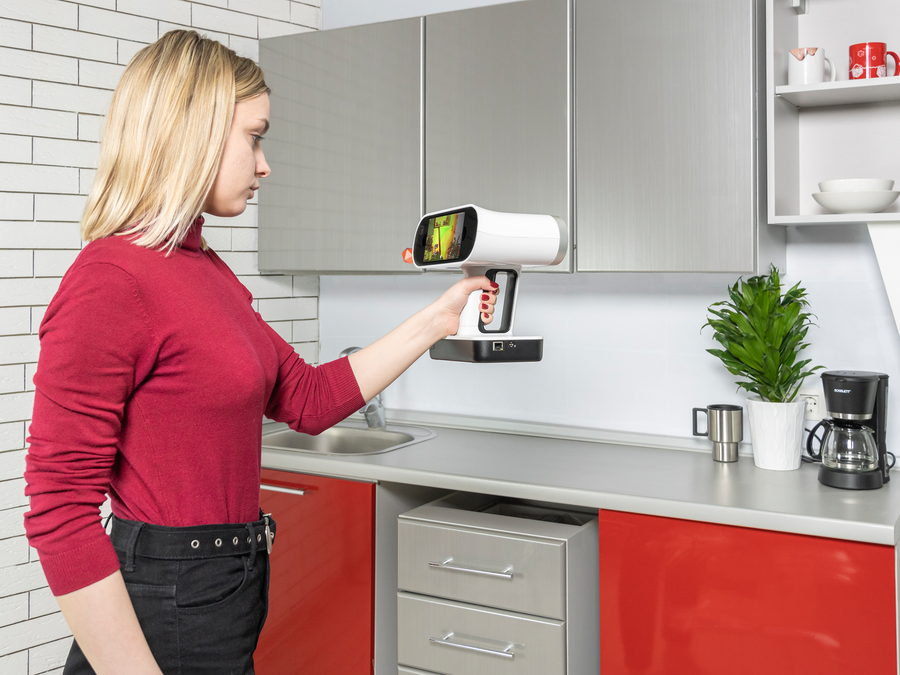

Preview your scans in real time for convenience and tether-free scanning.
Artec Leo can safely scan human anatomy, environments, and objects.

WIDE SCANNING VERSATILITY

Scan a vast array of object and sizes with Artec Leo. Designed to capture everything from intricate details to expansive spaces, its versatility ensures precision across a diverse range of objects and environments making it the ultimate tool for professionals in any field.

  • Capture Zone: 160,000 cm3
  • Excels at capturing medium to large objects/surfaces
  • Pair with a computer to capture entire spaces

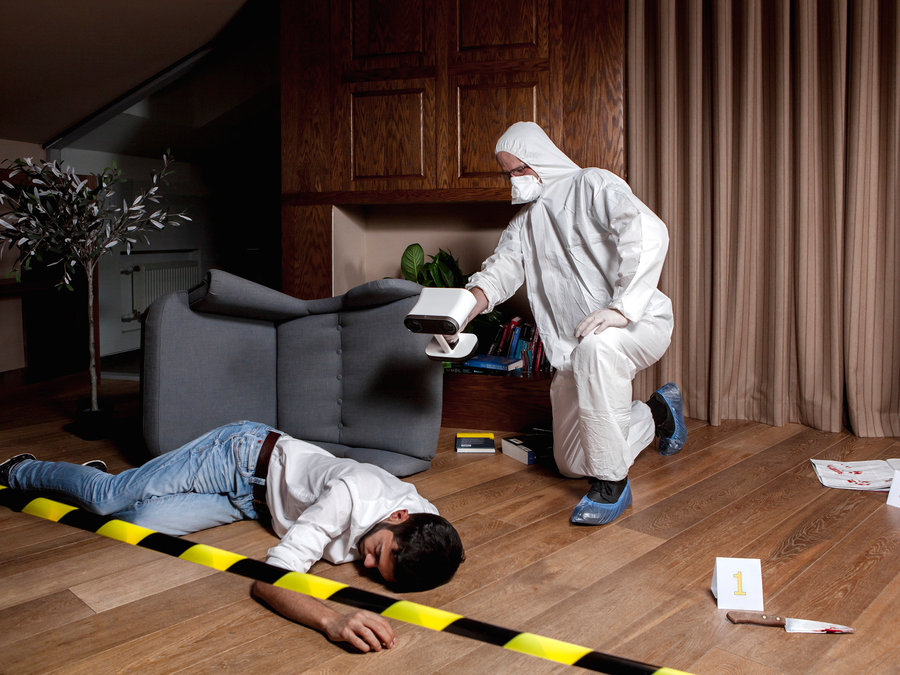

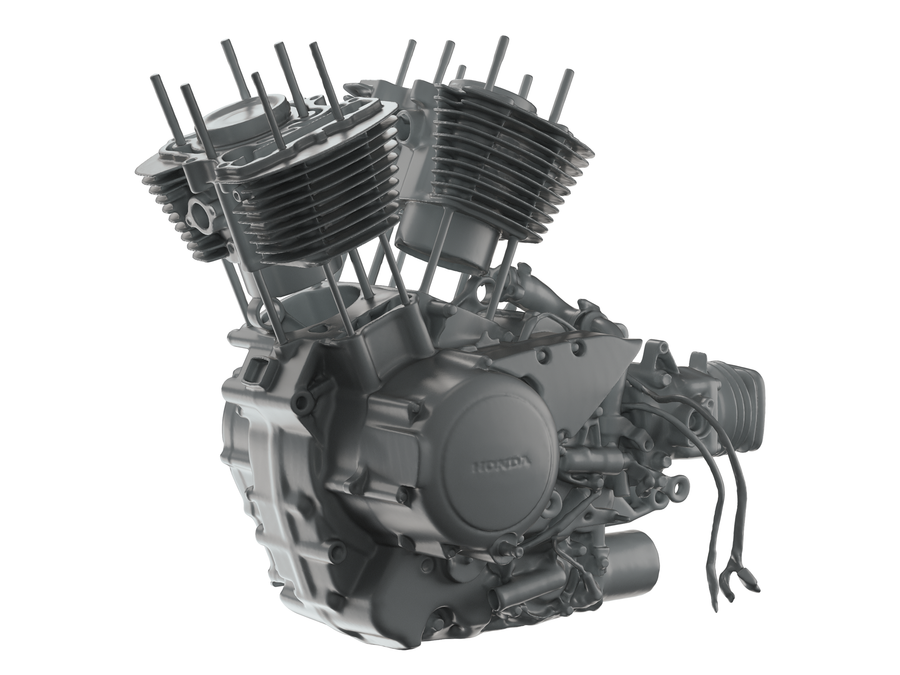

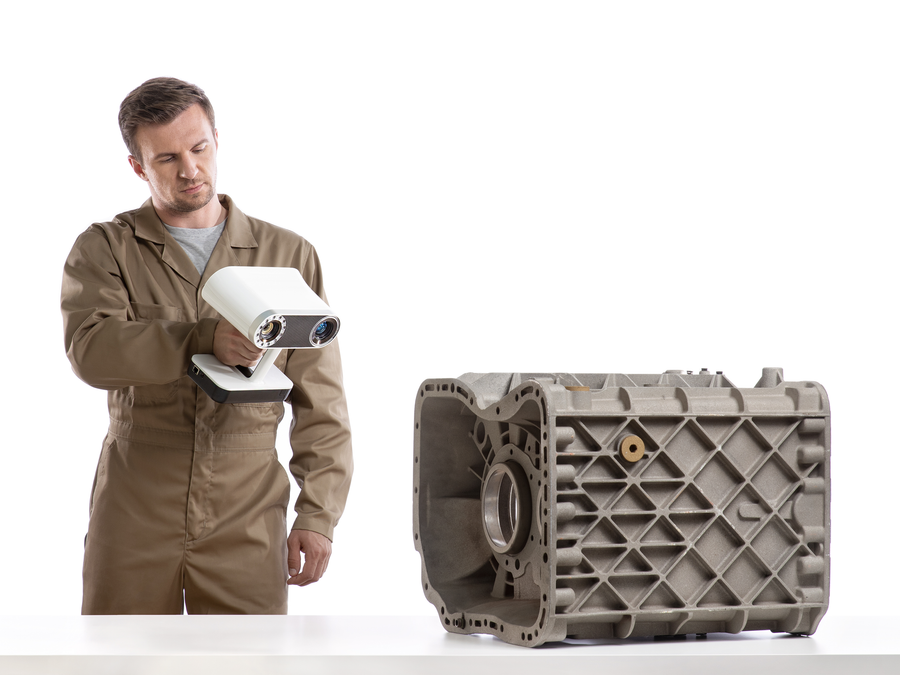

  • Ideal Applications: Gearboxes, car parts, statues, human anatomy, furniture, crime scenes, etc.

POWERFUL PROCESSING FOR HD RESULTS

Artec Leo's processing prowess, powered by the NVIDIA Jetson TX2, redefines speed and accuracy in 3D scanning. Packed with a variety of advanced tech and algorithms, Artec Leo delivers reliable performance, accuracy, and durability uncomparable to any other 3D scanner.

  • 3D Resolution: Up to 0.2mm
  • 3D Reconstruction Rate: Up to 28 FPS
  • Easily scan in sunlight
  • Capture excellent color, texture, and geometry
  • HD Mode removes noise for a tidy 3D model
Artec Leo utilizes a Nvidia processor to keep up with the intense data capturing and transfer required to deliver high quality scan results.
Artec Studio 18 maximizes the full benefits of 3D scanning with an Artec Leo scanner

RELIABLE DOWN TO THE SOFTWARE

Leo works with Artec Studio and Artec Cloud, from data capture to processing, to provide an intuitive, streamlined workflow. Useful, reliable features include:

  • Cloud-based collaboration
  • Control scanner from browser
  • Customizable functionality with dedicated API and SDK
  • Regularly updated with enhancements and improvements

What's Included with the Artec Leo?

Artec Leo scanner Artec Leo Premium Pack
Scanner Only Premium Pack

1 × Artec Leo

  • 1 × Battery
  • 1 × USB Cable
  • 1 × Power Supply
  • 1 × Two-Year Warranty

1 × Artec Leo

  • 1 × Battery
  • 1 × USB Cable
  • 1 × Power Supply
  • 1 × Five-Year Warranty

1 × Battery Charger
1 × Spare Battery
1 × Artec Calibration Kit
1 × Backpack
1 × Protective Case
1 × Artec Studio Subscription
      License (5 Years)
1 × Artec Care (5 Years)

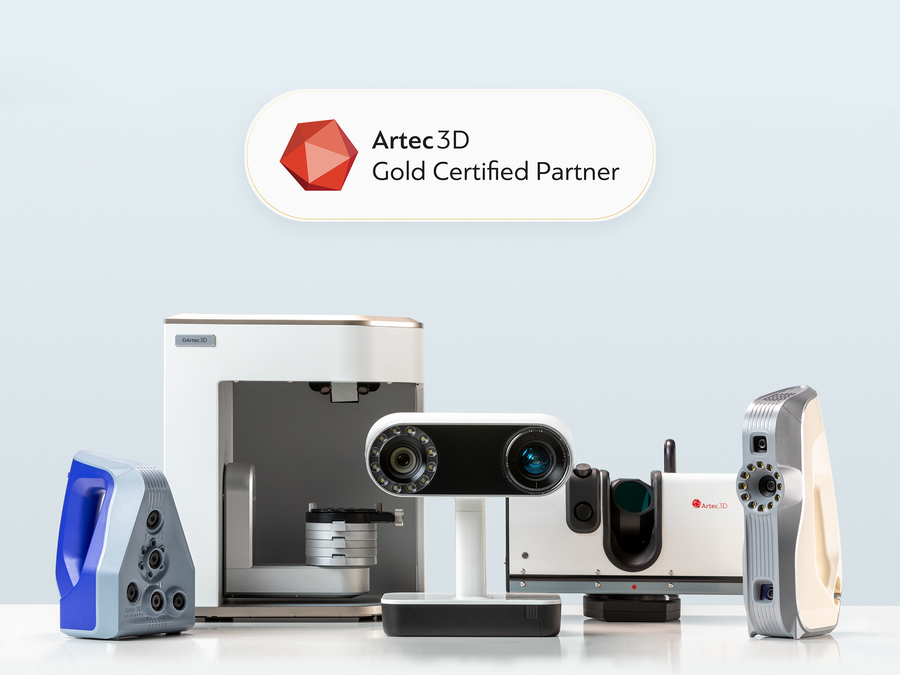

Which Artec 3D Scanner is Right for Me?

Artec Eva Lite scanner Artec Eva scanner Artec Space Spider scanner
Model Artec Eva Lite Artec Eva Artec Space Spider
Starting Price* $9,800 $19,800 $24,800
Scanner Type Handheld Handheld Handheld
Object Size 20 - 50 cm
(Medium)
20 - 50 cm
(Medium)
5 - 20 cm
(Small)
Accuracy, up to 0.1mm 0.1mm 0.05mm
Resolution, up to 0.5mm 0.2mm 0.1mm
Target-Free Tech
Color + Geometry
Tracking
Scanning Software Artec Studio Artec Studio Artec Studio
3D Mesh Export
Formats
OBJ, PLY, WRL, STL, AOP,
ASC, Disney PTX (PETX),
E57, XYZ, RGB, OBC
OBJ, PLY, WRL, STL, AOP,
ASC, Disney PTX (PETX),
E57, XYZ, RGB, OBC
uOBJ, PLY, WRL, STL, AOP,
ASC, Disney PTX (PETX),
E57, XYZ, RGB, OBC
Features Affordable and
accurate.
Best-seller.
Fast, versatile, and
accurate.
A metrological
structured-light 3D
scanner, set apart with
its ability to render
complex geometry, sharp
edges, and thin ribs in
high precision.
Artec Leo scanner Artec Micro II scanner Artec Metrology Kit
Model Artec Leo Artec Micro II Artec Metrology Kit
Starting Price $34,800 $22,500 $27,400
Scanner Type Handheld, Tetherless Desktop Photogammetry
Object Size 20 - 200 cm
(Medium to Large)
<90×60×60mm - 20 cm
(Extra Small to Small)
>20 cm
(Medium to XL)
Accuracy, up to 0.1 mm 0.005mm | 0.002mm
repeatability
0.002mm
Resolution, up to up to 0.2mm TBC N/A
Target-Free Tech Yes
Color + Geometry
Tracking
Yes
Scanning Software
Onboard Software Artec Studio Artec Metrology Kit
Plugin for Artec Studio
3D Mesh Export
Formats
OBJ, PLY, WRL, STL, AOP,
ASC, Disney PTX (PETX),
E57, XYZ, RGB, OBC
OBJ, PLY, WRL, STL, AOP,
ASC, Disney PTX (PETX),
E57, XYZ, RGB, OBC
OBJ, PLY, WRL, STL, AOP,
ASC, Disney PTX (PETX),
E57, XYZ, RGB, OBC
Features User-friendly portable
3D scanner with a built-
in touchscreen and
intuitive UI for easy
3D scanning.
High-accuracy desktop
3D scanner for an
automated, one-click
solution for small to
tiny objects.
Photogrammetry kit w/
metrology-grade
precision & volumetric
accuracy for inspection,
reverse engineering, and
other industrial
measurement
applications.
Artec Ray II scanner
Model Artec Ray II
Starting Price $88,000
Scanner Type Long-Range
Object Size >50 cm
(Large to XL)
Accuracy, up to 1.9mm @ 10m
Resolution, up to 3 / 6 / 12mm
@ 10m
Target-Free Tech
Color + Geometry
Tracking
Scanning Software
Onboard Software
Artec Remote App
Artec Studio
3D Mesh Export
Formats
OBJ, PLY, WRL, STL, AOP,
ASC, Disney PTX (PETX),
E57, XYZ, RGB, OBC
Features Powerful long-range
laser 3D scanner for
precise capture of
massive objects with
remarkable speed and
high accuracy.

* When comparing 3D scanners, keep in mind that price can be reflective of the number of convenient and useful features available, as well as the quality and speed of data capture. While you should consider your budget when looking at price, you should also consider if the technology has everything you need and if the workflow will serve you well in the long run.


What are the Technical Specifications of the Artec Leo Scanner?

GENERAL
Technology 3D Scanner
Type Handheld
Product Dimensions
(W × D × H)
231×162×230mm
(9.09"×6.38"×9.06")
Product Weight 2.6kg (5.7lb)
ACCURACY & RESOLUTION
3D Point Accuracy Up to 0.1 mm
3D Resolution Up to 0.2 mm
3D Accuracy Over Distance Up to 0.1 mm + 0.3 mm/m
ALGORITHMS
Algorithms HD Mode
Hybrid Geometry and Texture Tracking
Geometry and Texture Based Data Processing Algorithms
Auto Background Removal
FIELD OF VIEW
Working Distance 0.35 – 1.2m
Volume Capture Zone 160,000 cm³
Linear Field of View
H × W @ Closest Range
244 × 142mm
Linear Field of View
H × W @ Furthest Range
838 × 488mm
Angular Field of View
H × W
38.5 × 23°
TEXTURE
Texture Resolution 2.3 mp
Colors 24 bpp
Photo Texture Yes
CAPTURE RATE
3D Reconstruction Rate
for Real-Time Fusion
up to 22 fps
3D Reconstruction Rate
for 3D Video Recording
up to 44 fps
3D reconstruction rate for
3D video streaming
up to 80 fps
Data Acquisition Speed up to 35 mln points/s
3D Exposure Time 0.0002 s
2D Exposure Time 0.0002 s
LIGHT SOURCE
3D Light Source VCSEL
2D Light Source White 12 LED Array
HARDWARE
Position Sensors Built-in 9 DoF inertial system
Display/Touchscreen Integrated 5.5" half HD, CTP,
Optional Wi-Fi/Ethernet video streaming to external device
Multi-Core Processing Yes
Embedded Processors NVIDIA® Jetson™ TX2
Quad-core ARM® Cortex®-A57 MPCore Processor
NVIDIA Maxwell™ 1 TFLOPS GPU
with 256 NVIDIA® CUDA® Cores
Interface Wi-Fi, Ethernet
Internal Hard Drive 512 GB SSD
COMPUTER REQUIREMENTS
Scanning No computer required
Data Processing Windows 8.1, 10 (x64), Windows 11
Recommended Intel Core i7 or i9
64+ GB RAM
NVIDIA GPU with 8+ GB VRAM
CUDA 6.0+
Minimum Requirements (HD) Intel Core i7 or i9
32 GB RAM
NVIDIA GPU with CUDA 6.0+
and at least 4 GB VRAM
Minimum Requirements (SD) Intel Core i5, i7 or i9
32GB RAM
GPU with 2 GB RAM

A computer is needed only for data processing.
Scanning does not require a computer.
OUTPUT FORMATS
3D Mesh OBJ, PLY, WRL, STL, AOP, ASC, PTX, E57, XYZRGB
CAD STEP, IGES, X_T
Measurements CSV, DXF, XML
POWER SOURCE
Power Source Built-in exchangeable battery
Optional AC power

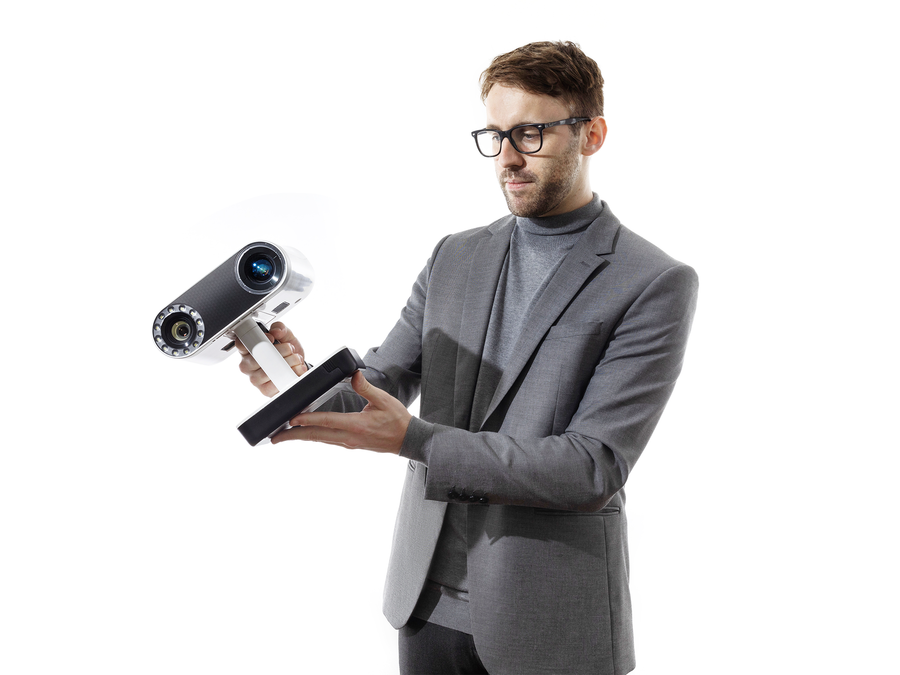

Artec Leo makes 3D scanning accessible. Just point and shoot the object, environment, or person you would like to scan.

FAQ

Is there a brochure or leaflet for the Artec Leo and all of Artec's 3D scanners?

Yes! You can download the brochure for the Artec Leo here and the brochure for all of Artec's 3D scanners here.

Do you offer demos, training, maintenance services, etc for this 3D scanner?

Yes! Request a quote and a sales representative can provide more information on these services.

Are there any special government or educational discounts for this 3D scanner?

Request a quote and our sales representative will get back to you on any special discounts and promotions that may be available for this 3D scanner.

What is HD Mode for Artec Leo?

HD is a scanning mode powered by artificial intelligence algorithms that allows you to create sharper, cleaner, and far more detailed 3D models with a resolution 2X higher than that of the original SD data. In HD Mode, a resolution of up to 0.2 mm can be achieved and your Leo can capture much smaller and thinner elements, hard-to-reach areas, black and shiny surfaces and other parts that were difficult or impossible to capture before. HD Mode is available for Leo and Eva scanners running Artec Studio 15.1 or higher.

What types of objects can I scan with Artec Leo?

Thanks to its extended field of view, Leo excels at capturing both medium-sized objects such as gearboxes, castings, furniture, statues, and the human body, as well as large objects like automotive parts, turbines, ship propellers, small boats, and room interiors.

How is Artec Leo different from other scanners?

Leo is completely wireless. While other 3D scanners need to be connected to a computer or tablet to display scanning results, Leo has an integrated computer and touch screen onboard where you can see results in real time.

Why is it important that Artec Leo is completely wireless?

Portability is key when 3D scanning medium and large objects, such as cars or airplanes. A regular 3D scanner connected to a PC for scanning can be inconvenient to carry around and maneuver, especially for hard-to-reach areas. ou can walk around the object holding the Leo like you would a video camera, without worrying about the wires that could get in your way, or needing to switch to a different screen to see the results. It’s all there, conveniently combined in one single unit.

Can I scan people / anatomy with the Artec Leo?

Yes. Artec Leo can scan people and anatomy among many other versatile applications.
