Artec Artec Metrology Kit: Professional
The Artec Metrology Kit is a high-precision photogrammetry tool offering up to 2µ optical measuring and DAkkS-certified accuracy, designed for industrial applications such as inspection and reverse engineering. It features dynamic referencing, compatibility with major software, and is available in Entry and Professional versions. It's ideal for enhancing measurement accuracy and efficiency in demanding environments.
- Up to 2 optical measuring precision
- DAkkS-certified, portable design
- Dynamic referencing captures motion
To learn about available discounts, training, and maintenance options, please use the form below and a MatterHackers Expert will contact you within one business day. Alternatively, you can always feel free to give us a call at +1 (800) 613-4290 or email sales@matterhackers.com.
Artec Metrology Kit
PROFESSIONAL PHOTOGRAMMETRY WITH METROLOGY-GRADE PRECISION
Experience unparalleled precision with the Artec Metrology Kit, a metrology-grade photogrammetry solution designed for high-accuracy industrial applications. Offering up to 2µ optical measuring, this flexible system integrates seamlessly into your workflow for inspection, reverse engineering, and more. Compatible with leading software, it ensures perfect results in any setting. Enhance your measurement capabilities with its portable, DAkkS-certified design, achieving confidence in your data's precision.
Click here to book a demo or consultation with our expert team.
Key Features of the Artec Metrology Kit:
- Up to 2µ optical measuring
- DAkkS-certified 6DoF optical measurement system
- Dynamic referencing captures objects in motion
- Increases range and accuracy of smaller scanners
- High-end volumetric accuracy for diverse industrial applications
- Short measuring time, ideal for demanding environments
- Compatible with major software like Geomagic Control X, PolyWorks, and more
- Two versions available based on your needs: Entry and Professional
WHAT'S METROLOGY?
Metrology, the scientific study of measurement, plays a vital role in achieving accuracy across industries. The Artec Metrology Kit is the sophisticated photogrammetry solution that exemplifies this, offering precise 3D optical measurements for applications like inspection and analysis, adaptable to various environments, and compatible with key software in the industry.
- Optical Measuring System: up to 2 microns
- Use it indoors, outdoors, on moving objects, etc.
- Works with Control X, PolyWorks, and more
APPLY TO A VARIETY OF APPLICATIONS

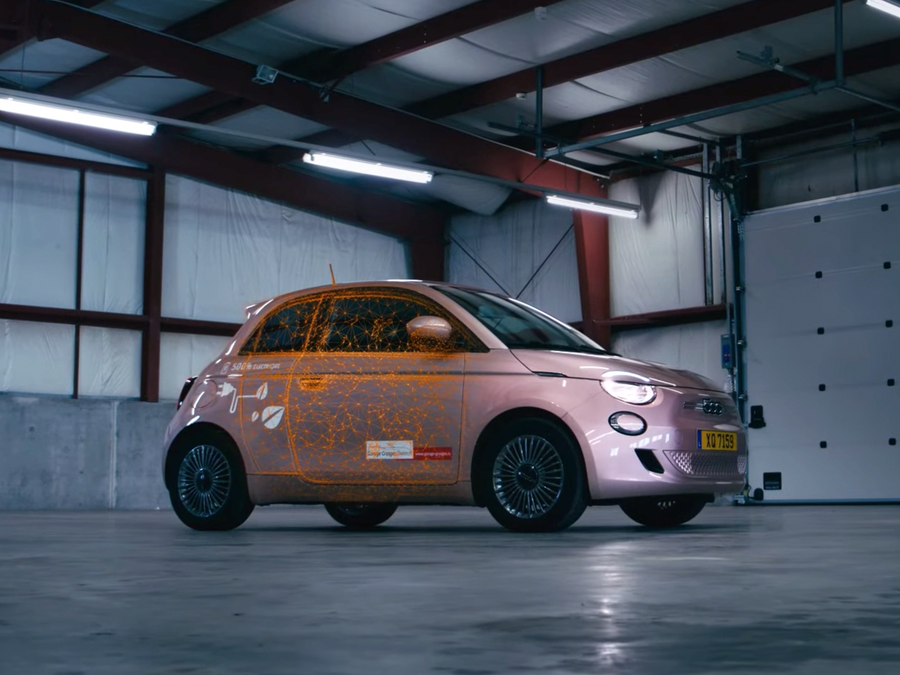

Use the Artec Metrology Kit for various industries like Automotive, Aerospace, and R&D for purposes such as:
- Inspections
- Industrial Measurements
- Reverse Engineering
- Material Deformation Analysis
- Referencing for 3D Scanning
- and more!
STRAIGHTFORWARD WORKFLOW
Make the most out of your Artec Metrology Kit with a straightforward workflow.

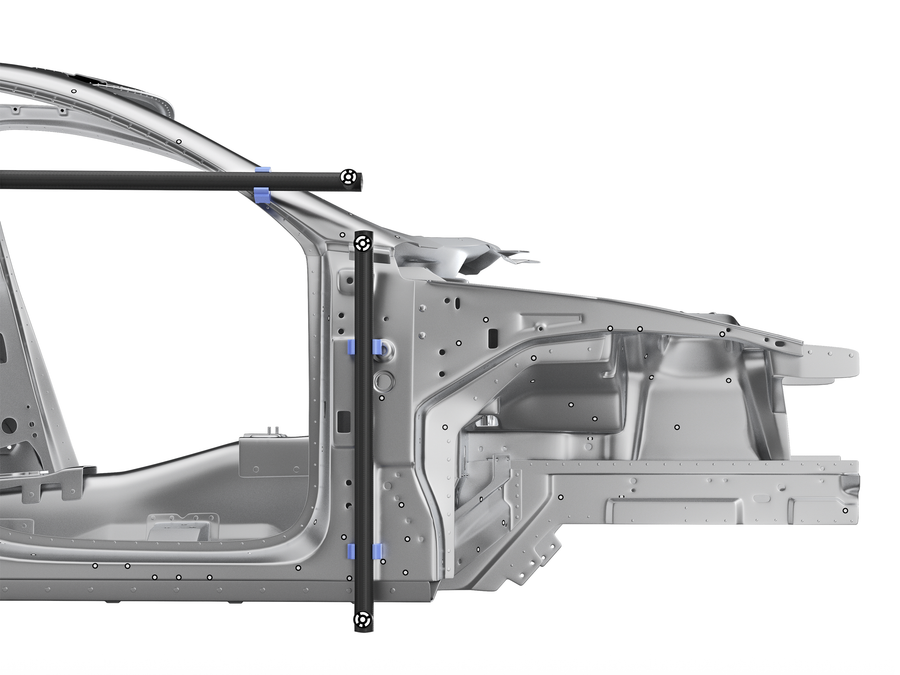

- Prepare Object
- Place targets, crosses, etc. on object
- Ensure these don't move relative to object

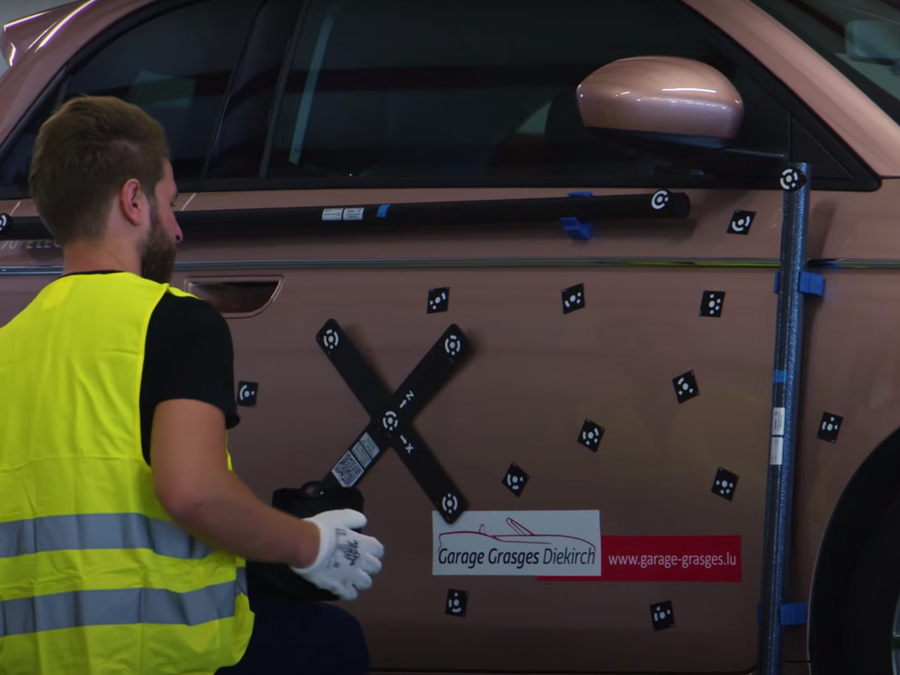

- Capture Object
- Take photos from different heights / angles
- Capture each target at least 6 times and reference crosses from 4 perpendicular angles
- Process Images
- Generate target cloud via Artec Studio w/ Metrology Kit plugin or your favorite photogrammetry software
- View Report
- Use resultant point cloud for your specific engineering use case
DESIGNED FOR YOUR NEEDS
Available in Entry and Professional models, the Artec Metrology Kit caters to a range of engineering applications. The Entry model suits basic engineering needs with adequate precision, whereas the Professional variant offers enhanced accuracy, tailored for complex photogrammetry tasks in challenging environments. This versatility ensures users can select the version that best aligns with their specific measurement and accuracy requirements.
TEAMWORK PRECISION
Combine the Artec Metrology Kit with a 3D scanner for unmatched precision and detail across large objects. This powerful duo enhances accuracy up to 14x across 15m, streamlines workflow, and delivers metrology-grade results with ease. Leveraging photogrammetry's accuracy for large-scale projects with high resolutions of smaller-frame 3D scanners to produce fine detail and metrology-grade accuracy that can only be achieved with this collaboration.

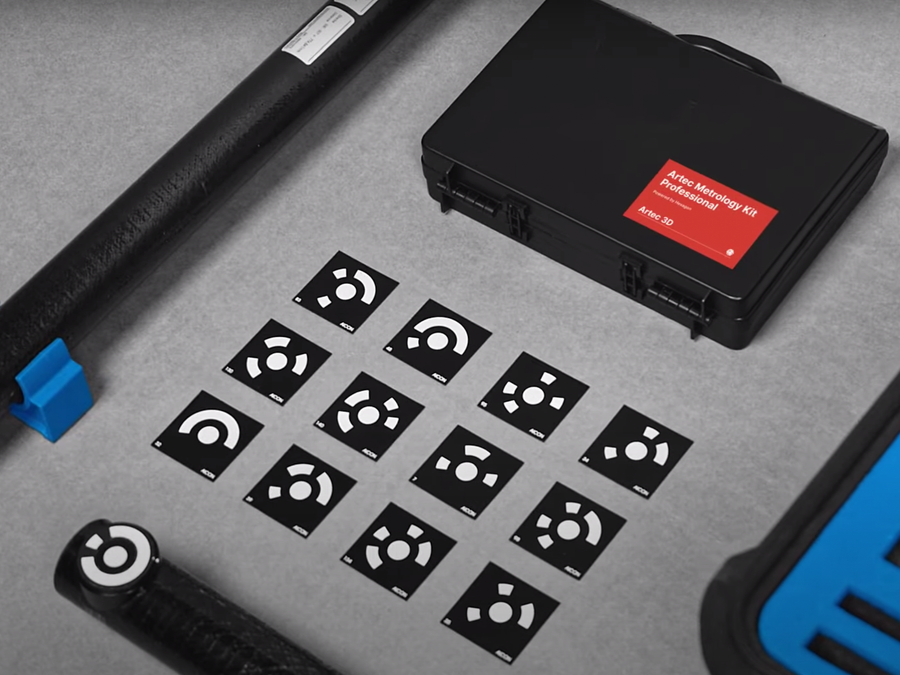

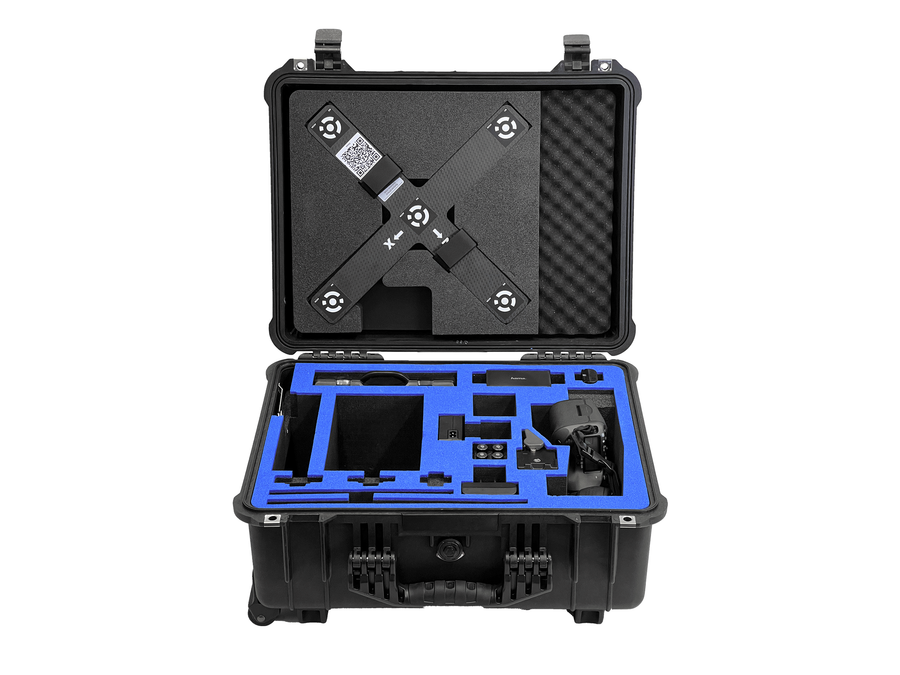

What's Included with the Artec Metrology Kit?
 |
|
| Entry | Professional |
|
1 × Artec Metrology Kit
|
1 × Artec Metrology Kit
|
*Ideal for larger and more complex parts
**For details on how specs differ between packages, see the tech specs below.
Which Artec 3D Scanner is Right for Me?
 |
|
 |
|
|---|---|---|---|
| Model | Artec Eva Lite | Artec Eva | Artec Space Spider |
| Starting Price* | $9,800 | $19,800 | $24,800 |
| Scanner Type | Handheld | Handheld | Handheld |
| Object Size | 20 - 50 cm (Medium) |
20 - 50 cm (Medium) |
5 - 20 cm (Small) |
| Accuracy, up to | 0.1mm | 0.1mm | 0.05mm |
| Resolution, up to | 0.5mm | 0.2mm | 0.1mm |
| Target-Free Tech | ✔ | ✔ | ✔ |
| Color + Geometry Tracking |
— | ✔ | ✔ |
| Scanning Software | Artec Studio | Artec Studio | Artec Studio |
| 3D Mesh Export Formats |
OBJ, PLY, WRL, STL, AOP, ASC, Disney PTX (PETX), E57, XYZ, RGB, OBC |
OBJ, PLY, WRL, STL, AOP, ASC, Disney PTX (PETX), E57, XYZ, RGB, OBC |
uOBJ, PLY, WRL, STL, AOP, ASC, Disney PTX (PETX), E57, XYZ, RGB, OBC |
| Features | Affordable and accurate. |
Best-seller. Fast, versatile, and accurate. |
A metrological structured-light 3D scanner, set apart with its ability to render complex geometry, sharp edges, and thin ribs in high precision. |
 |
 |
 |
|
| Model | Artec Leo | Artec Micro II | Artec Metrology Kit |
| Starting Price | $34,800 | $22,500 | $27,400 |
| Scanner Type | Handheld, Tetherless | Desktop | Photogammetry |
| Object Size | 20 - 200 cm (Medium to Large) |
<90×60×60mm - 20 cm (Extra Small to Small) |
>20 cm (Medium to XL) |
| Accuracy, up to | 0.1 mm | 0.005mm | 0.002mm repeatability |
0.002mm |
| Resolution, up to | up to 0.2mm | TBC | N/A |
| Target-Free Tech | ✔ | Yes | — |
| Color + Geometry Tracking |
✔ | Yes | — |
| Scanning Software |
Onboard Software | Artec Studio | Artec Metrology Kit Plugin for Artec Studio |
| 3D Mesh Export Formats |
OBJ, PLY, WRL, STL, AOP, ASC, Disney PTX (PETX), E57, XYZ, RGB, OBC |
OBJ, PLY, WRL, STL, AOP, ASC, Disney PTX (PETX), E57, XYZ, RGB, OBC |
OBJ, PLY, WRL, STL, AOP, ASC, Disney PTX (PETX), E57, XYZ, RGB, OBC |
| Features | User-friendly portable 3D scanner with a built- in touchscreen and intuitive UI for easy 3D scanning. |
High-accuracy desktop 3D scanner for an automated, one-click solution for small to tiny objects. |
Photogrammetry kit w/ metrology-grade precision & volumetric accuracy for inspection, reverse engineering, and other industrial measurement applications. |
 |
|||
| Model | Artec Ray II | ||
| Starting Price | $88,000 | ||
| Scanner Type | Long-Range | ||
| Object Size | >50 cm (Large to XL) |
||
| Accuracy, up to | 1.9mm @ 10m | ||
| Resolution, up to | 3 / 6 / 12mm @ 10m |
||
| Target-Free Tech | ✔ | ||
| Color + Geometry Tracking |
✔ | ||
| Scanning Software |
Onboard Software Artec Remote App Artec Studio |
||
| 3D Mesh Export Formats |
OBJ, PLY, WRL, STL, AOP, ASC, Disney PTX (PETX), E57, XYZ, RGB, OBC |
||
| Features | Powerful long-range laser 3D scanner for precise capture of massive objects with remarkable speed and high accuracy. |
* When comparing 3D scanners, keep in mind that price can be reflective of the number of convenient and useful features available, as well as the quality and speed of data capture. While you should consider your budget when looking at price, you should also consider if the technology has everything you need and if the workflow will serve you well in the long run.
What are the Tech Specs of the Artec Metrology Kit?
| Professional | Entry | |
| ACCURACY | ||
| Length Measurement Accuracy | MPE* |
0.015 mm + 0.015 mm × Length diagonal [m] |
0.025 mm + 0.025 mm × Length diagonal [m] |
| Point-Based Measurement Accuracy |
0.002 mm + 0.005 mm/m (RMS) 0.003 mm + 0.007 mm/m (3 sigma) |
0.004 mm + 0.006 mm/m (RMS) 0.005 mm + 0.009 mm/m (3 sigma) |
| VOLUMETRIC ACCURACY | (combined with 3D scanners) | |
| Artec Leo/Artec Eva | 0.115 mm + 0.015 mm/m | 0.125 mm + 0.025 mm/m |
| Artec Space Spider | 0.065 mm + 0.015 mm/m | 0.075 mm + 0.025 mm/m |
| CAMERA | ||
| Sensor Unit | Canon EOS R | Canon EOS 6D |
| Lens | 28 mm AICON metric wide-angle lens |
28 mm AICON metric wide-angle lens |
| Camera Resolution | 30.3 megapixels (6720 × 4480) | 20.2 megapixels (5472 × 3648) |
| Field of View (FoV) | 65 × 46° | 65 × 46° |
| Illumination | White-light flash | White-light flash |
| Speed | Up to 8 images per second | Up to 4 images per second |
| Viewfinder | Diopter | Diopter |
| Wireless Data Transfer | Optional | Not Supported |
| Power supply | Li-on Battery | Li-on Battery |
| PACKAGING | ||
| Dimensions | 215×120×140mm | 245×110×150mm |
| External Dimensions of Transportation Box |
520×430×250mm | 870×230×170mm |
| Sensor Weight | 1.7kg (3.7lb) | 1.4kg (3lb) |
| Weight of Transportation Box Including System |
Approx. 12kg (26.5lb) | Approx. 7.7kg (17lb) |
| Storage | Robust case with trolley | Robust case |
| OTHER SPECS | ||
| Recommended Operating Temperature |
+5 to +45°C | +5 to +45°C |
| Conformity | CE, RoHS | CE, RoHS |
| Calibration & Certification | DAkkS certificate for the complete measuring system including scale bars and sensor DAkkS-calibrated scale bars: 1 × 1430 mm, 1 × 830 mm VDI 2634 page 1 certified system |
DAkkS certificate for the complete measuring system including scale bars and sensor Factory-calibrated scale cross 800 Opt. VDI 2634 page 1 certified system |
*MPE (Maximum Permissible Error) of length measurement error, based on VDI/VDE 2634 part 1: defined as the maximum permissible deviation of a measured length, which is located between two measuring points, signalized with photogrammetric targets, in the entire measuring volume of the measuring object, regardless of the position and orientation.
FAQ
Is there a brochure or leaflet for the Artec Metrology Kit and all of Artec's 3D scanners?
Yes! You can download the brochure for the Artec Metrology Kit here and the brochure for all of Artec's 3D scanners here.
Do you offer demos, training, maintenance services, etc for this 3D scanner?
Yes! Request a quote and a sales representative can provide more information on these services.
Are there any special government or educational discounts for this 3D scanner?
Request a quote and our sales representative will get back to you on any special discounts and promotions that may be available for this 3D scanner.
What is the Artec Metrology Kit Used For?
The Metrology Kit is an optical coordinate measuring system that is mostly used for different types of inspection – roundness inspection, sheet-metal inspection, and fixture inspection. Analysis – deformation analysis, tolerance analysis, 3D process analysis. And also referencing for other measurement systems. It can also be used for part alignment, CAD comparison, and other optical measurement usage applications.
What is the general workflow when using the Artec Metrology Kit?
Working with the Artec Metrology Kit begins with object preparation using targets, reference bars, and other accessories required for measurement, and then image acquisition, image transfer, image processing, and 3D-coordinates calculation for the generation of a point cloud.
In what Industries is the Artec Metrology Kit used?
Because processes like reverse engineering and inspection occur in so many processes, the use of optical systems like the Artec Metrology Kit transcends any one particular industry. The Metrology Kit has found use in general industry, aerospace, automotive, wind energy, railway construction, and many more industries.
Which camera settings affect the performance of the Artec Metrology Kit?
The Artec Metrology Kit is shipped with the relevant settings already configured. These include focus, aperture, ISO, flash sensitivity, and exposure time. The measurement system is calibrated with these settings. To ensure that it works as intended, it is recommended that you do not adjust the factory settings as this could affect accuracy. Please refer to the support page for more information.
Can the Artec Metrology Kit be used as a substitute for a metrology-grade 3D scanner?
The Artec Metrology Kit provides very accurate measurements over distance. However, it does not produce dense point clouds like 3D scanners do. Depending on your use case, you may want to use one or the other, or in a combined workflow.
