Artec Artec Micro II 3D Scanner

Sale

The Artec Micro II is a high-precision, automated desktop 3D scanner with 5-micron accuracy, ideal for detailed scanning of small objects. It features four high-resolution cameras for full coverage, fast data capture, and a one-click workflow, making it perfect for applications like reverse engineering and quality inspection. Suitable for objects up to 20cm, it is designed for professional use in fields like dentistry, design and more.

  • 5-micron accuracy for metrology-grade precision
  • Quad-cam scanning captures intricate details
  • One-click workflow simplifies operation
SALE - Choose your deal: get a free additional year of Software Maintenance ($3,700 value) OR free Reverse Engineering Software ($9,300 value) with the purchase of a new Zeiss scanner. Request a quote or contact sales@matterhackers.com to learn more. Offer ends 3/31/25.
Request Quote
Add to wishlist
Available Add-ons (3)
Price $1,700.00 $1,700.00 View Addon »
Price $1,200.00 $1,200.00 View Addon »
Price $2,700.00 $2,700.00 View Addon »
Product No. M-1QU-PH4L
Warranty Levels: 2 Year Warranty (Included)

Artec Micro II

MIGHTY FINE 3D SCANNING

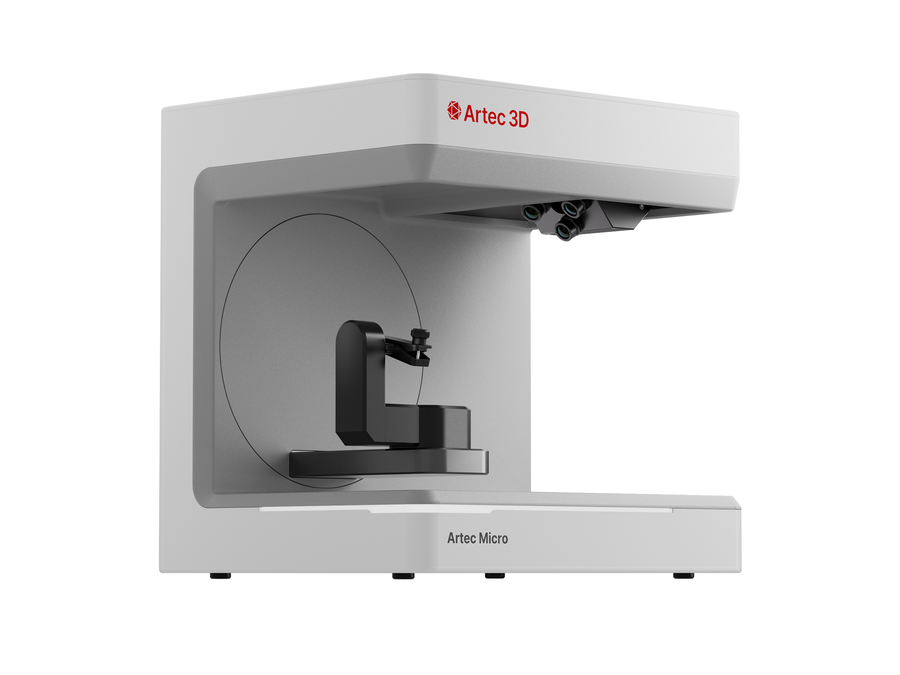

The Artec Micro II is a state-of-the-art desktop 3D scanner offering unparalleled precision with 5-micron accuracy, ideal for reverse engineering and quality inspection of small objects. This fully automated, compact device simplifies 3D scanning with a one-click workflow, capturing every detail with metrology-grade accuracy. Equipped with four high-resolution cameras, it ensures full coverage and deep views for hyper-realistic, full-color 3D models. Perfect for a range of applications from dentistry to design, the Micro II revolutionizes desktop 3D scanning.

Click here to book a demo or consultation with our expert team.

Key Features of the Artec Micro II 3D Scanner:

  • Achieve 5-micron metrology-grade accuracy for small parts
  • Captures color and uses quad-cam scanning for detailed coverage
  • Fast data capture with 1,000,000 calculations/second
  • Makes professional reverse engineering and quality inspection effortless
  • Fully automated desktop size for convenience
  • Scans objects up to 200mm in size
  • One-click workflow for ease of use

CAPTURE THE SMALLER THINGS IN LIFE

With its 5-micron 3D accuracy, the Artec Micro II is the ultimate tool for scanning small parts, offering metrology-grade accuracy for objects up to 20 cm. It delivers top-quality, detailed scans directly from your desktop, streamlining reverse engineering and quality checks without requiring targets.

  • Capture small items in crystal clear quality
  • 3D Accuracy: Up to 5 microns
    • Repeatability: 2 microns
  • Scan Object Size:  Up to 20×20×15cm

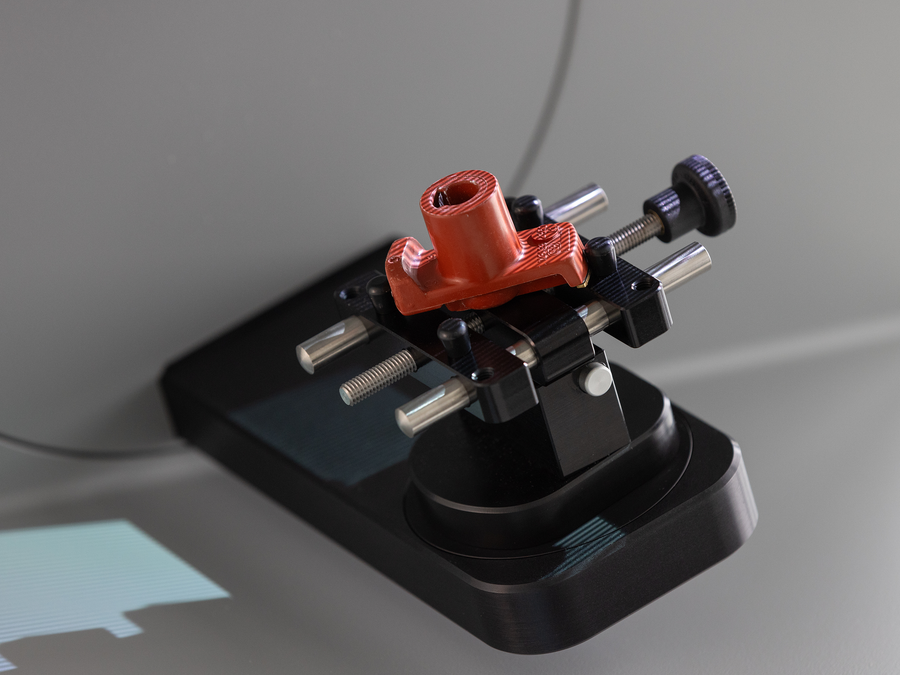

Capture high detail scans of small objects with the Artec Micro II 3D scanner
Scanning with the Artec Micro II 3D scanner is quick

FAST & EASY SCANNING

Simplify your scanning process with the Artec Micro II's one-click operation, ensuring rapid, comprehensive digitization. It's designed for speed, processing vast amounts of data instantly, making it perfect for efficient, high-speed scanning tasks.

  • 1-Click Workflow
  • Capture & process >140 million image points / sec
  • Automatically positions your object to follow the ideal scanning trajectory
  • Thoroughly scans object from all sides in minimal time

SCAN DOWN TO THE DETAILS

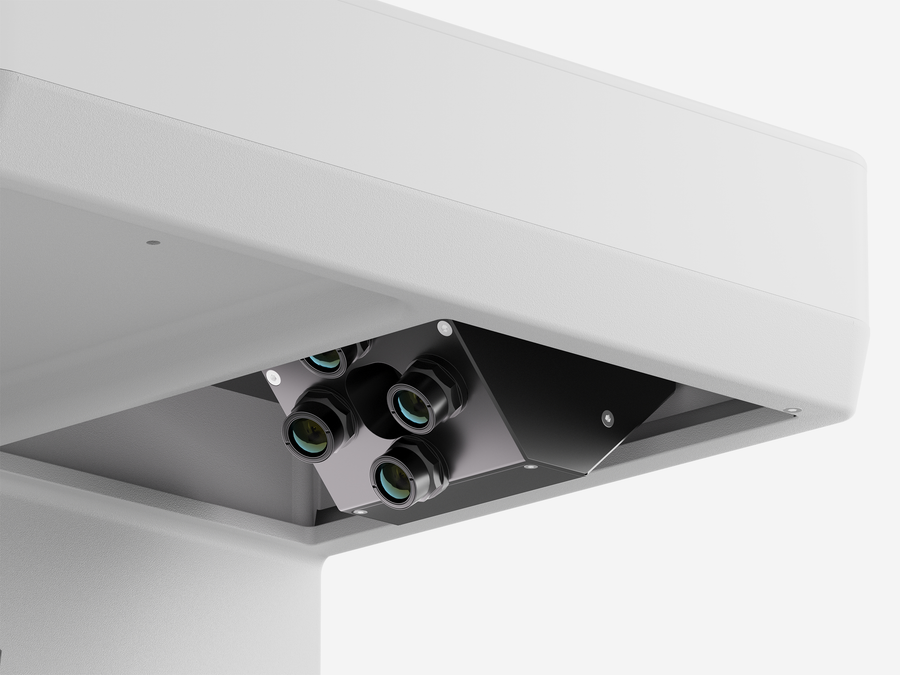

The Artec Micro II, with its four 13 MPX cameras, captures every detail, offering full coverage and deep views of small objects. Its quad-cam scanning technique ensures even the most minuscule details and hard-to-see areas are digitized with precision. Additionally, it provides full-color scanning capabilities for creating hyper-realistic 3D models, enhancing the quality and realism of your scans.

  • 4 × High-res 13 MPX cameras
  • Scans the deep nooks of your object
  • Capture objects in full color
Artec Micro II captures all the small, colorful details on small parts.
Add phototextures on models produced by Artec Micro II scans for a hyperealistic look.

SEAMLESS SCAN PROCESSING WORKFLOW

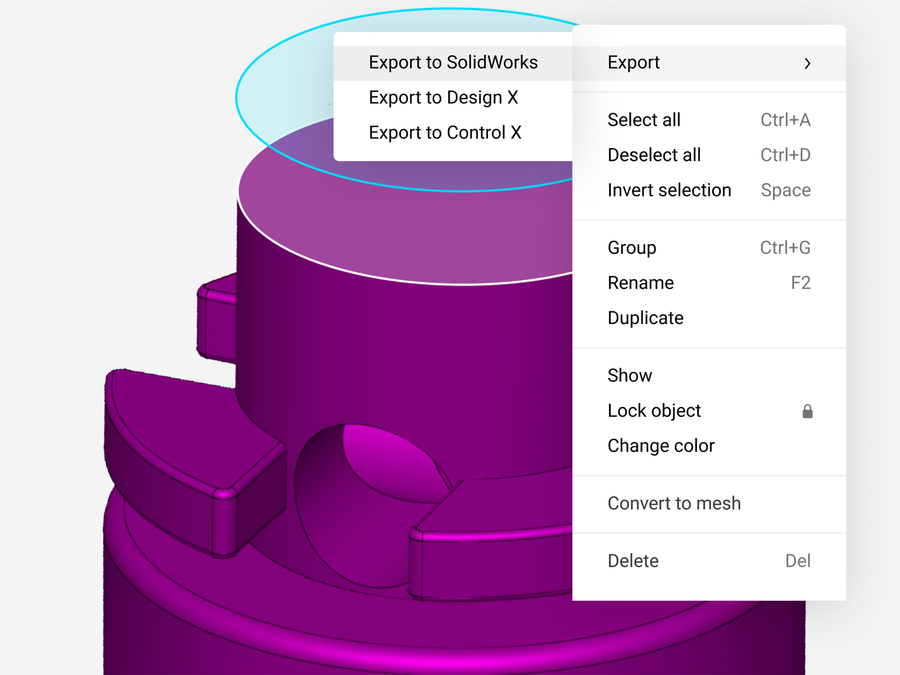

Artec Studio streamlines the 3D scanning workflow, enabling quick inspection and reverse engineering directly within the platform. It simplifies scan data processing, offering precise alignment with CAD primitives and hassle-free export to SOLIDWORKS or other CAD tools, or directly to Control X for detailed analysis. This seamless integration ensures efficient progression from scanning to final reporting or design modification.

What's Included with the Artec Space Spider?

Artec Micro II scanner Artec Micro II Premium Pack
Scanner Only Premium Pack

1 × Artec Micro II

  • 1 × Set of Mounting Bases
  • 1 × Calibration Board
  • 1 × USB Cable
  • 1 × Power Supply
  • 1 × Two-Year Warranty

1 × Artec Micro II

  • 1 × Set of Mounting Bases
  • 1 × Calibration Board
  • 1 × USB Cable
  • 1 × Power Supply
  • 1 × Four-Year Warranty

1 × Artec Studio Subscription
      License (5 Years)


Which Artec 3D Scanner is Right for Me?

Artec Eva Lite scanner Artec Eva scanner Artec Space Spider scanner
Model Artec Eva Lite Artec Eva Artec Spider II
Starting Price* $9,800 $19,800 $29,700
Scanner Type Handheld Handheld Handheld
Object Size 20 - 50 cm
(Medium)
20 - 50 cm
(Medium)
5 - 50 cm
(Small to Medium)
Accuracy, up to 0.1mm 0.1mm 0.05mm
Resolution, up to 0.5mm 0.2mm 0.05mm
Target-Free Tech
Color + Geometry
Tracking
Scanning Software Artec Studio Artec Studio Artec Studio
3D Mesh Export
Formats
OBJ, PLY, WRL, STL, AOP,
ASC, Disney PTX (PETX),
E57, XYZ, RGB, OBC
OBJ, PLY, WRL, STL, AOP,
ASC, Disney PTX (PETX),
E57, XYZ, RGB, OBC
OBJ, PLY, WRL, STL, AOP,
ASC, Disney PTX (PETX),
E57, XYZ, RGB, OBC
Features Affordable and
accurate.
Best-seller.
Fast, versatile, and
accurate.
A metrological
structured-light 3D
scanner, set apart with
its ability to render
complex geometry, sharp
edges, and fine details in
ultra-high resolution.
Artec Leo scanner Artec Micro II scanner Artec Point 3D Scanner
Model Artec Leo Artec Micro II Artec Point
Starting Price $34,800 $22,500 $29,900
Scanner Type Handheld, Tetherless Desktop Handheld
Object Size 20 - 200 cm
(Medium to Large)
<90×60×60mm - 20 cm
(Extra Small to Small)
>20 cm
(Small to Large)
Accuracy, up to 0.1 mm 0.005mm | 0.002mm
repeatability
up to 0.02mm
Resolution, up to up to 0.2mm TBC up to 0.02mm
Target-Free Tech Yes
Color + Geometry
Tracking
Yes
Scanning Software
Onboard Software Artec Studio Artec Studio
3D Mesh Export
Formats
OBJ, PLY, WRL, STL, AOP,
ASC, Disney PTX (PETX),
E57, XYZ, RGB, OBC
OBJ, PLY, WRL, STL, AOP,
ASC, Disney PTX (PETX),
E57, XYZ, RGB, OBC
OBJ, PLY, WRL, STL, AOP,
ASC, Disney PTX (PETX),
E57, XYZ, RGB, OBC
Features User-friendly portable
3D scanner with a built-
in touchscreen and
intuitive UI for easy
3D scanning.
High-accuracy desktop
3D scanner for an
automated, one-click
solution for small to
tiny objects.
High-accuracy handheld
3d scanner for reliable,
targeted accuracy to
capture metrology-grade
results every time.
Artec Metrology Kit Artec Ray II scanner
Model Artec Metrology Kit Artec Ray II
Starting Price $27,400 $88,000
Scanner Type Photogrammetry Long-Range
Object Size >20 cm
(Medium to XL)
>50 cm
(Large to XL)
Accuracy, up to 0.002mm 1.9mm @ 10m
Resolution, up to N/A 3 / 6 / 12mm
@ 10m
Target-Free Tech
Color + Geometry
Tracking
Scanning Software
Artec Metrology Kit
Plugin for Artec Studio
Onboard Software
Artec Remote App
Artec Studio
3D Mesh Export
Formats
OBJ, PLY, WRL, STL, AOP,
ASC, Disney PTX (PETX),
E57, XYZ, RGB, OBC
OBJ, PLY, WRL, STL, AOP,
ASC, Disney PTX (PETX),
E57, XYZ, RGB, OBC
Features Photogrammetry kit w/
metrology-grade
precision & volumetric
accuracy for inspection,
reverse engineering, and
other industrial
measurement
applications.
Powerful long-range
laser 3D scanner for
precise capture of
massive objects with
remarkable speed and
high accuracy.

* When comparing 3D scanners, keep in mind that price can be reflective of the number of convenient and useful features available, as well as the quality and speed of data capture. While you should consider your budget when looking at price, you should also consider if the technology has everything you need and if the workflow will serve you well in the long run.


What are the Technical Specifications of the Artec Micro II?

GENERAL
Technology 3D Scanner
Type Desktop
Product Dimensions
(W × D × H)
396×405×337mm
(15.59"×15.94"×13.27")
Product Weight 12kg (26.5lb)
ACCURACY & RESOLUTION
3D Point Accuracy 5 microns, 2 micron repeatability
Accuracy Certification ISO12836
Cameras 4 × 13 MP resolution cameras
3D Resolution TBC
ALGORITHMS
Scanning Mode Yes
HD Mode Available in Artec Studio 19 (coming soon)
FIELD OF VIEW
Volume Capture 6,000cm³ (18.5 times larger)
Field of View 20 × 20 × 15cm
Scan System 3-axis
COLOR
Ability to Capture Texture Scanner native & phototexture
Colors 24 bpp
SPEED
Data Acquisition Speed 1 mln points/s
LIGHT SOURCE
3D Light Source RGB LED
2D light source RGB LED
HARDWARE
Interface USB 3.0
COMPUTER REQUIREMENTS
Supported OS Windows 10 (x64), Windows 11
Recommended computer requirements Intel Core i7 or i9
64+GB RAM,
NVDIA GPU with at least 3 GB VRAM, CUDA 3.5+
Minimum Computer Requirements Intel Core i5, i7 or i9
32GB RAM
GPU with 2 GB VRAM
OUTPUT FORMATS
3D mesh OBJ, PLY, WRL, STL, AOP, ASC, PTX, E57, XYZRGB
CAD STEP, IGES, X_T
Measurements CSV, DXF, XML
POWER SOURCE
Power source AC power
WARRANTY
Warranty Period 2 Years;
Optional - upgrade up to 4 years total of warranty coverage

Key scanned by Artec Micro II 3D scanner

FAQ

Is there a brochure or leaflet for the Artec Micro II and all of Artec's 3D scanners?

Yes! You can download the brochure for the Artec Micro II here and the brochure for all of Artec's 3D scanners here.

Do you offer demos, training, maintenance services, etc for this 3D scanner?

Yes! Request a quote and a sales representative can provide more information on these services.

Are there any special government or educational discounts for this 3D scanner?

Request a quote and our sales representative will get back to you on any special discounts and promotions that may be available for this 3D scanner.

Does Artec Micro II have a fully automatic mode?

Yes. You can choose the automatic scanning path in the software settings before starting a scan, and let the scanner choose the optimal trajectory and number of frames needed to fully capture the object.

What is the size limit of objects that can be scanned with the Artec Micro II 3D scanner?

We recommend scanning objects that are up to 200 × 200 × 150 mm and 2 kg (4.4 lb) in size. Examples of objects suitable for scanning with the Micro are engine valves, electrical connectors, watch gears and parts, jewelry, etc.

What are the best applications for Artec Micro scanner?

Artec Micro is the best 3D scanner for reverse engineering, quality control, inspection, dentistry, jewelry, design, and any other area where you need a 3D scanner for small objects with ultra-high accuracy.

What are the repeatability results for separate scans of the same object?

Repeatability is a key characteristic for inspection, and the Micro II provides excellent results in this area. While factors such as material and surface finish of the object may slightly affect noise levels, the Micro II generally provides 2-micron repeatability.
