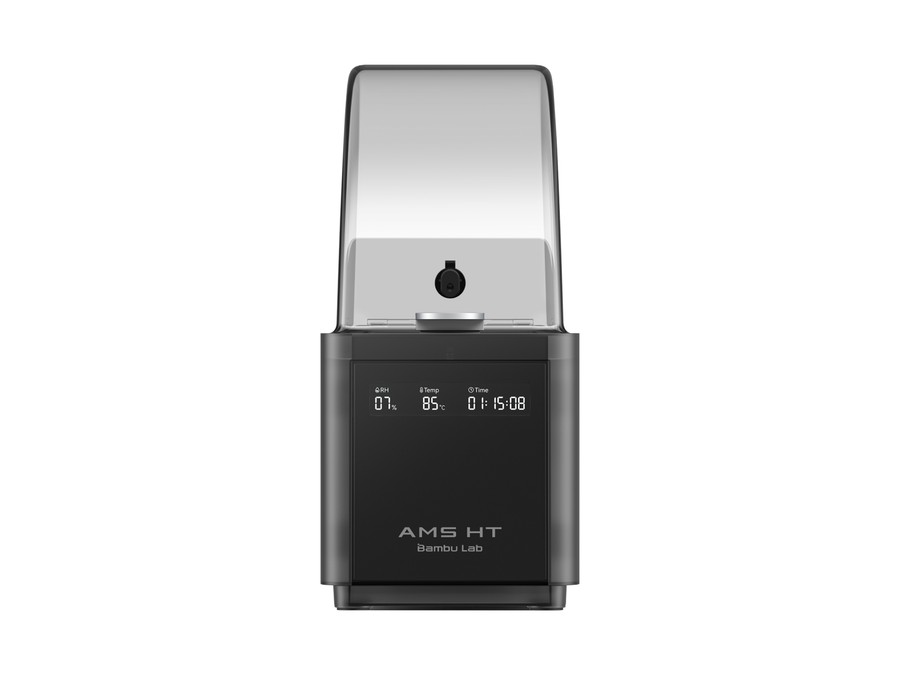

Bambu Lab Bambu Lab AMS HT
Bambu Lab AMS HT is a hi-temp filament management system that automatically feeds or dries filament at 85°C, maintaining quality with a sealed storage system. It uses brushless servos to feed material 60% faster, features electromagnetic dehumidification with digital monitoring, and supports up to 24-color printing through connected units.
- Achieve 85°C optimal filament drying performance
- Protect filaments with sealed storage design
- Accelerate feeding 60% faster via brushless motors
| List Price: | $189.00 |
|---|---|
| Price: | $189.00 |
| Price: | $... |
| Availability: | Coming soon Notify Me |
| Est. In Stock: Jun 30th | |
Bambu Lab AMS HT
SPECIALIZED HIGH-TEMP FILAMENT MANAGEMENT
Elevate your 3D printing with Bambu Lab AMS HT—a sophisticated automatic material system featuring 85°C drying capabilities for premium filaments. Its brushless motors deliver 60% faster feeding while electromagnetic vents ensure perfect dehumidification and storage. Monitor drying progress via the digital display as the system handles even soft or brittle materials through dedicated outlets. Scale up to 24-color printing with multiple connected units.
Key Features of the Bambu Lab AMS HT:
- High-performance 85°C drying system with dynamic air ventilation
- Hermetically sealed storage preserves filament quality
- Expansive capacity for 24-color/multi-material printing projects
- Advanced brushless servo technology for superior filament feeding
- Intelligent RFID system for automatic filament recognition and configuration
Note that A1/A1 mini printer compatibility is coming via over-the-air update in Q3 2025. X1/P1 Series compatibility will be arriving through an end-of-April OTA update.
BUILT FOR HIGH-TEMP & PERFORMANCE
HI-TEMP DRYING
With maximum drying capabilities of 85°C, the Bambu AMS HT is perfectly engineered to handle the specialized needs of high-temperature materials.
BYPASS OUTLET
A separate filament dispensing outlet is incorporated on the Bambu Lab AMS HT to treat delicate and brittle materials with the gentle precision they require.
SWIFT, SMART FILAMENT DRYING
ELECTRO-MAGNETIC AIR VENT
Bambu AMS HT employs automatic venting to enhance moisture removal during the drying phase. This creates an airtight environment that preserves filament quality for several weeks of printing.
AUTO-ROTATE DRYING
To achieve more consistent drying results, the Bambu Lab AMS HT features automatic rotation of filament spools during the dehumidification process.
RFID SYNC
Through RFID technology, the AMS HT automatically configures appropriate drying parameters for Bambu's official filaments, eliminating the need for user intervention.
ENGINEERED TO EVOLVE
CERAMIC INLET
Filament inlets made of ceramic material, which measure 1200 on the Vickers hardness scale, provide remarkable enhancement to the AMS HT's overall durability performance.
OVER TEMPERATURE PROTECTION
Equipped with a sensitive temperature detection system and redundant physical safety measures, the Bambu Lab AMS HT delivers exceptionally accurate heating performance without compromising on safety.
STATUS DISPLAY
Effortlessly track your drying progress with the AMS HT's bright, easy-to-read digital display screen.
WHAT COMES WITH THE BAMBU AMS HT?
AMS HT |
Desiccant |
PTFE Tube |
6-pin Bus Cable |
TECHNICAL SPECIFICATIONS
| BODY | |
|---|---|
| Dimensions (W × D × H) |
114mm × 280mm × 225mm (4.5" × 11.02" × 9.65") |
| Net Weight | 1.21kg (2.68 lbs) |
| Housing Material | PC/PA |
| Flame Retardant Grade | UL 94 V-0 |
| Screen | Supports displaying real-time temperature and humidity, and remaining drying duration. |
| PRINTING | |
| Filament Supported | PLA, PETG, ABS, ASA, PET, PA, PC, PVA (dried), BVOH (dried), PP, POM, HIPS, Bambu PLA-CF/PAHT-CF/PETG-CF/Support for PLA/PETG, and TPU for AMS. Bypass Filament Outlet: TPE, generic TPU, Bambu PET-CF/ TPU 95A, and other filament that contains carbon fiber or glass fiber. |
| Filament Not Supported | PVA (damp), BVOH (damp) |
| Filament Diameter | 1.75mm |
| Spool Dimensions | Width: 50mm - 68mm (1.96" - 2.67") Diameter: 197mm - 202mm (7.75" - 7.95") |
| RFID Identification | Supported |
| Filament Odometer | Supported |
| DRYING | |
| Highest Temperature | 85°C |
| Filament Supported | PLA, PETG, Support for PLA/PETG, ABS, ASA, PET, PA, PC, PVA, BVOH, PP, POM, HIPS, Bambu PLA-CF/ PAHT-CF/ PETG-CF, and TPU for AMS |
| Active Moisture Discharge | Supported |
| Rotating Drying Mode | Supported |
| Sealed Storage | Supported |
| Top Lid Open Detection | Supported |
| Temperature & Humidity Detection & Maintenance |
Supported Real-time temperature and humidity can be displayed on the screen, Bambu Studio, and Bambu Handy. |
| POWER | |
| Voltage | DC: 24V AC: 100V–240 V~, 50 Hz/60 Hz |
| Average Power | 150W |
FAQ
What is the difference between the two discharge ports on the back of the machine?
The port at the rear of the top cover is specifically for TPU filament. Due to the softness of the TPU filament, it is easy to fail when using the AMS 2 Pro automatic feeding function. When using the TPU, insert it into the AMS HT and ensure the material tray rotates in the correct direction. Insert the material tube into the TPU output port and manually push the filament through the PTFE tube until it is fully loaded into the extruder.
Things to Note:
- When using TPU, AMS HT cannot use the automatic feed and return function, but can be used as a drying box to prevent material moisture.
- AMS HT won't be able to run filament drying while feeding filament and initiating a print via the bypass port.
Can the X1 Series and P1 Series printers use AMS HT?
AMS HT compatibility with X1 and P1 Series printers will be added through an OTA update by the end of April.
If only connecting one AMS HT to a X or P series printer, a Filament Buffer is required (separate purchase).
If connecting multiple AMS HT units, we recommend that you purchase an AMS Hub.
AMS HT compatibility with A1 and A1 mini printers will be added through an OTA update in Q3 2025.
Can I dry filament while printing?
Printing while drying is not yet supported, including all the AMS units that are related to the ongoing print job (eg. The AMS units assigned for auto-refill).
However, you can dry filament in AMS units that aren't assigned to the ongoing print job.
How many AMS HT units can be connected to the X1 series and P1 series at most?
X1 and P1 Series printers support up to 4 AMS HT connections at the same time.
Can I get power from the printer for drying?
The H2D printer and X/P/A Series printers are connected to AMS HT and can use the drying function.
Each AMS HT requires an external 220V power supply for drying. It does not support drawing power from the printer for drying. The power adapter is pre-included with the product package.
Does it support standalone drying without connecting to the printer?
When using the AMS HT drying function, the AMS HT must be connected to the printer via a 6-pin bus cable to ensure that the printer is powered on and set to filament drying mode.
The AMS HT cannot perform standalone drying without a connection to the printer.
