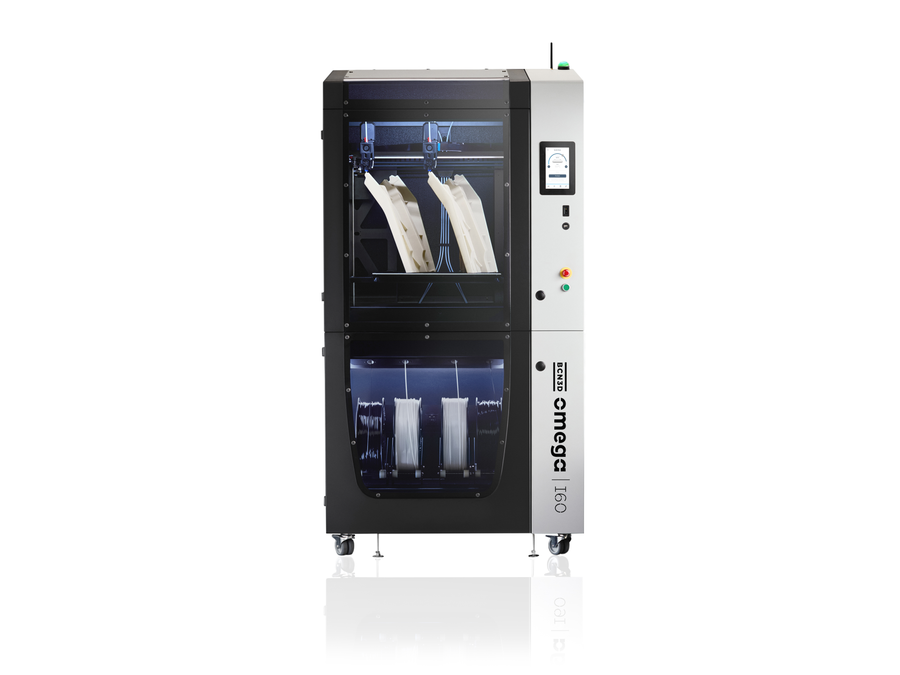

BCN3D BCN3D Omega I60 3D Printer
The BCN3D Omega I60 is a high-speed, multi-purpose industrial 3D printer crafted specifically for manufacturing environments. It boasts an IDEX system, a dynamically heated enclosure, and a massive printing capacity.
Top Omega I60 3D Printer Features:
- Powerful IDEX System
- Massive Print Volume
- Active Heated Chamber
- Advanced Material Capabilities
- High Speed Printing
BCN Printers
| List Price: | $21,995.00 |
|---|---|
| Price: | $21,995.00 Financing starts at: $405 /mo |
| Price: | $... |
| Order Now: | Ships calculating... Ships via Freight - some fees may apply. |
This item cannot be shipped to a PO Box or APO/FPO/DPO address. This item takes longer to ship due to its size and/or weight.
Qty
Request Quote
loading...
Product No. M-K5Y-3JZK
The BCN3D Omega I60
A Large-Format, High-Speed, IDEX 3D Printer
The BCN3D Omega I60 is a high-speed, multi-purpose industrial 3D printer crafted specifically for manufacturing environments. It boasts an IDEX system, a dynamically heated enclosure, and a massive printing capacity.
Here are the key features of the Omega I60 3D Printer:
- Powerful IDEX System
- Massive Print Volume
- Active Heated Chamber
- Advanced Material Capabilities
- High Speed Printing
Innovative IDEX Dual-Extrusion Design
The BCN3D IDEX system prints using two independent print heads. During multi-material prints, one head is active while the other stays out of the way.
- Cleanest solution on the market for dual extrusion 3D printing.
- IDEX System prevents drip/contamination of parts.
- Use Duplication Mode to make both tool heads perform separate tasks.
- Batch printing is now faster and easier than ever before.
- Use Mirror Mode to print two opposite parts at the same time.
Massive Build Chamber with Active Heating
The BCN3D Omega I60 enables you to confidently print the huge, sturdy parts, jigs and fixtures that have previously requires multiple print jobs, using advanced materials.
- Print Volume a staggering 450mm x 300mm x 450mm
- 17.7" x 11.8" x 17.7"
- 60 Liters
- Actively Heated Build Chamber up to 70C
- Build Plate Heats up to 120C
High Speed Printing
Churn out high-quality prints, batch after batch, using only high-speed IDEX 3D printer on the market: the BCN3D Omega I60.
- Print Speed: 300 mm/s
- Acceleration: 10 m/s^2
- Built-In Accelerometers
- 32-Bit ATSEME51 Processor
Material Operations System
The Material Operations System (MOS) is built into the foundation of the BCN3D Omega I60 and maintains multiple large filament spools through many hundreds of print-hours.
- Maintain humidity below 10%
- Automatically switches spools in case of runout
- Preheats material for highest possible print quality
User Ease and Safety
Designed from the ground up to be easy to use and maintain on a factory floor or makerspace.
- Built-In Camera
- HAQ-XY Kinematics and autocalibration
- 7" Capacitive Touchscreen
- Connect via WiFI or Ethernet
- HEPA and carbon filtration
- Andon lights tower and emergency stop button
What are the Properties of the BCN3D Omega I60 3D Printer?
- 3D Printing Technology: Fused Filament Fabrication (FFF)
- Architecture: Independent Dual Extruder (IDEX)
- Printing volume (W x D x H): 450 x 300 x 450 mm (17.7 x 11.8 x 17.7 in)
- Build chamber:
- Heated Chamber up to 70 ºC (158 ºF)
- Fully enclosed
- Air filtering:
- Category H13 HEPA filter Active
- Carbon filter
- Number of extruders: 2
- Warranty: 12 Months
- Extruder system:
- Direct drive Bondtech LGX Pro extruders
- Quick-swap Hotend Tips
- 1.75mm Filaments
- Printing modes:
- Single mode
- Duplication mode
- Mirror mode
- Dual mode
- Automatic Calibration System:
- Accurate Z homing
- Quick assisted bed leveling
- Automatic XYZ offset extruder calibration
- Automatic Mesh Mapping
- Electronics:
- Single Board Computer: Toradex ARM Compute Module
- Motion Board: BCN3D Electronics with integrated stepper drivers
- 32 bit ATSAME51N20A
- Firmware
- BCN3D Embedded Linux distribution
- BCN3D Omega - Marlin 2.1.x
- Heated bed:
- Silicone thermal pad
- Up to 120ºC (248 ºF)
- Flexible Printing Surface
- Screen: 7" IPS full color capacitive touchscreen
- Supported languages: English
- Supported files:
- Supported by the printer: .gcode
- Supported by Stratos: .3MF, .STL, .OBJ
- Operating sound: 65 dB (maximum)
- Tip/Nozzle diameter:
- Omega Hotend Tip 0.4 HR (0.4mm tip size) (Included)
- Omega Hotend Tip 0.6 HR (0.6mm tip size) (Sold separately)
- Connectivity:
- Offline printing: USB
- Online printing: WiFi or Ethernet (through BCN3D Cloud)
- Materials Operation System (MOS):
- 75 ºC (167 ºF) max temperature
- Average relative humidity <10%
- Recommended profiles: Built-in print profiles in slicer software
- Accuracy:
- +/- .200 mm (.008 in), or +/- .002 mm/mm (.002 in/in), whichever is greater
- Test conditions: 0.4mm hotend tip and 0.15 layer height
- Layer Height: 50 μm minimum, 300 μm maximum
- Operating Environment Temperature: 18 - 30 ºC (64.4 - 86 ºF), Humidity: 30 - 70% RH
- Extruder maximum temperature: 300 ºC (572 ºF)
- Heated bed maximum temperature: 120 ºC (248 ºF)
- Build chamber maximum temperature: 70 ºC (158 ºF)
What are the Electric Properties of the BCN3D Omega I60?
- Input: AC 220-240V, Single Phase, AC 10.25-8.5A, 50-60Hz
- AC Power Socket:
- USA: NEMA 6-20
- EU: Schuko
- UK: BS1363
- Australia: AS3112
- Maximum power consumption: 2050W
- UPS Topology:
- Online 1kVA
- Battery specifications: 3 batteries, each 36VDCx7Ah
What are the Software Properties of the BCN3D Omega I60?
- File preparation software: BCN3D Stratos for slicing and BCN3D Cloud for printer management
- Operating Systems:
- Windows 10 or higher, 64-bit
- Mac OSX 11 Big Sur or higher, 64-bit
- Linux, 64-bit
- Connectivity:
- Online printing: WiFi or Ethernet (through BCN3D Cloud)
- Offline printing: USB
- Supported browsers (BCN3D Cloud): Google Chrome, Mozilla Firefox, Safari
What are the Material Properties Supported by the BCN3D Omega I60?
- Filament diameter: 1.75 ± 0.05 mm
- Compatible materials:
- BCN3D Filaments (for Omega)
- Open Filament Network (for Omega)
- Custom Materials (with free license activation)
- Open filament system: Yes (with free license activation)
What are the Physical Properties of the BCN3D Omega I60?
- Overall dimensions (W x D x H): 987 x 600 x 1927 mm ( 38.86 x 23.62 x 75.87 in)
- Weight: 240 kg (530 lbs)
- Shipping box dimensions (W x D x H): 1180 x 720 x 2100 mm (46.5 x 28.3 x 82.7 in)
- Shipping weight: 260 kg (573.2 lbs)
- Minimum working area: A minimum clearance of 20 cm (8”) is required on left and rear sides of
the printer, and except for the front and right, where a clearance of 80 cm
(32”) is necessary to operate or service the printer. - Air/ventilation requirements: No additional requirements
- Shipping method: Custom pallet 1180 (W) x 720 (D) mm (46.46 (W) x 28.35 (D) in)
