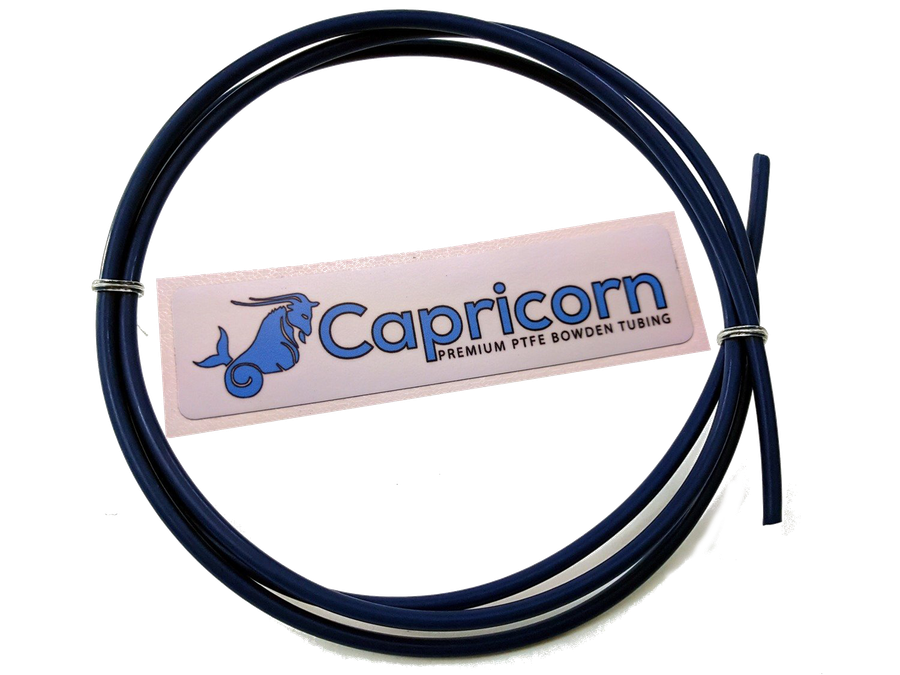

Capricorn Capricorn XS Series PTFE Bowden Tubing Cut to Length - 1.75mm (1m)
The Capricorn XS PTFE tubing is designed specifically for use in 3D printing, with tight tolerances and high-lubricity additives for easy filament sliding. This tubing is cut to length per order, up to 5 meters.
- Specifically manufactured for 3D printers
- Tight tolerance for consistent performance
- High lubricity for easier filament flow
| List Price: | $15.00 |
|---|---|
| Availability: | Currently Unavailable |
Purpose Built
Most PTFE tubing used in 3D printing is simply 'good enough' and is chosen based on the closest size available for the given filament diameter, but in the end, it's just a tube that carries your filament. Capricorn is the first company who is manufacturing PTFE tubing specifically for use in 3D printing. Whether you have 1.75mm or 3mm (2.85mm) filament the Capricorn XS tubing offers more consistent performance for your printer.
Secret Sauce
In addition to the tight tolerance of XS tubing, this PTFE also has special high-lubricity additives that makes filament slide through easier than any other tubing. Printing with rough filaments like wood or metal fills is no big deal for this slippery tubing. This lubricity combined with the tighter tolerance also allows for lower retraction settings since issues of hysteresis are effectively eliminated.
Capricorn tubing as seen featured in the E3D Gold hotend kit
Cut to Length
We understand that not everyone needs the exact same length of Capricorn Tubing and so we cut this tubing to length per order! Every 1 unit ordered is a meter of tubing, so two units will result in a single 2 meter section. If you need a specific length simply round up and we'll deliver a single length - up to 5 meters. If you require a longer section contact us at support@matterhackers.com for custom cut pricing and availability.
Technical Specifications
- Inside Diameter: 1.9mm ± 0.05mm
- Outside Diameter: 3.95mm ± 0.05mm
- Length: 1m per unit ordered up to 5m (if you need more reach out to support@matterhackers.com)
Questions
Will this work with my Ultimaker 2 Extended +?
Will this fit my Pulse purchased Aug. 2020 (Model D-231)?
what is the correct length for Fushion3 F410? Will this tube work on the Fushion3?
How do I install the bowden tube in hot end? Rebrady3@msn.com
will this work with NinjaTek Flexible filament on a Ultimaker S3?
Would it be appropriate to use this tubing to replace the PTFE in a PTFE-lined heat break in a direct-extruder system? Would there be advantage to using Capricorn tubing in this scenario over regular PTFE tubing?
what length to i order for flsun qq-s pro? how many units?
Does this come with a tool to cut the tubing?
What color is this tubing? Black or Blue? I specifically want the Black version if that’s possible.
Ender 5 Plus?
Will this work on ender 5 plus?
I've purchased Capricorn tubing from another site (Amzn) and the holes were off center which cause the filament to not slide smoothly into the hot-end. Have you noticed this issue with any of the Capricorn sold here?
will this work with the EZR extruder? The Capricorn tubing I have all ready want go all the way to the gear.
the dimensions look like it would fit Zortrax M200 hotted, can you confirm one way or another? Or is there a better fitting tube fir Z?
Would capricorn tubing offer any benefits to a direct drive printer as an alternative to the stock filament feeder that came with the machine? If so, what ID would be appropriate for a 1.75mm filament?
Will this tubing work with a Stacker S4?
How much continuous temp can he hold safely ?
What is the correct length to cut for the bowden tube for the Pulse XE.
Hi, what is the correct length for the cr10s, the cr10s4 and the Ender3, thanks
The spare tube supplied with the CR-10S is 19" long.
We do not have the exact lengths for those printers, but a length as short as possible while still offering a full range of motion without resistance is optimal. This product is long enough to be cut down to that length for any of those printers.
