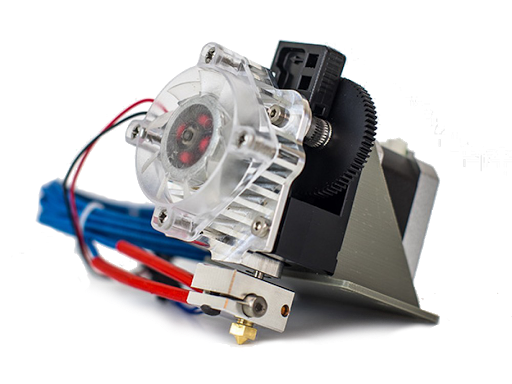

Water Jet CuttersE3D E3D Titan Aero HotEnd and Extruder Mirrored - 1.75mm (12v)
The Titan Aero is a compact and rigid hotend that is easy to install and maintain. It is built on the E3D V6 all metal hotend and can print any filament at temperatures up to 300°C.
- Slim profile allows for additional 25mm of vertical build volume
- Mounted using standard NEMA17 pattern
- Interchangeable components with any E3D parts
| List Price: | $111.49 |
|---|---|
| Availability: | Currently Unavailable |
Compact & Rigid design
The magic of the Aero is combining the hotend and extruder, producing a very slim profile. Upgrading to a Titan Aero allows for an additional 25mm of vertical (Z-axis) build volume thanks to it's small size. A compact design also makes the Aero extremely rigid and capable of printing faster than other hotends.
Easy to install and maintain
Mounted using the standard NEMA17 pattern, the Titan Aero is ready to be installed in a wide variety of existing 3D printers. Incorporating Titans engineering and proven extrusion system makes Aero a highly reliable and feature rich component. Loading and unloading filament, manual extrusion, adjusting idler tension and clearing debris are effortless with this simple design. The use of Titans 3:1 gearing allows for smaller motors and a lighter weight carriage, improving the long term reliability of your 3D printer as a whole.
All metal hotend built from the E3D V6
Built on the legendary E3D V6 all metal hotend, the Titan Aero reliably prints any filament at temperatures up to and beyond 300°C. With the V6 heatbreak, you can interchange components with any E3D parts. Choose your own temperature sensor, heater cartridge or nozzle, including any Volcano products.
The complete Titan Aero
Ultra responsive, excels with flexible material
The slim profile of the Titan Aero means the shortest possible filament path, making Aero the perfect extruder and hotend combo for printing flexible material. 3D printing flexible filament is challenging because the filament can bend and jam between the extruder and nozzle, a situation all but eliminated due to the tiny space between those two areas on the Titan Aero. This feature extends to standard filament as well, yielding improved responsiveness of the extruder. Start, stop and retract faster and with greater accuracy than any other hotend, providing more accurate, cleaner prints.
The new heat sink minimized filament path, making flexible filament easier to feed
What's in the box?
- Titan Aero Heatsink
- Heatsink Cooling Fan
- V6 Heatbreak
- V6 Heater Block
- v6 Heater Block Silicone Sock
- 30w Heater Cartridge
- Thermistor
- V6 0.4mm Nozzle
- Titan Body
- Idler Lever
- 1.75mm Filament Guide
- 2.85mm Filament Guide
- All required assembly hardware and electronics
Includes all the necessary assembly tools
Questions
Will this work with a Ender 3 V2?
Will these work with CR10 and Anycubic i3 Mega? WOuld love to change out the entire Bowden process on both. Thanks Dr D
Will this work on a Pulse xe system ?
Does this work on a ender 3 pro and if so will i need to mod or print anything for it to work
Will this work with the ender 5 plus?
Which model and voltage will work on my cr-10 v2.
if so how would I change or upgrade my firmware for an anet A8
If you want to sell me one of these you need to provide a mounting bracket for my printer or tell me where to find one.
Is this compatible with the Anet a8?
Is this extruder compatible with the Flashforge Creator Max? Do I need 12v or 24v?
Is this compatible with Ender 3 Pro printer? Do I need to modify the settings of the slicer to use it?
I have a BIBO2 touch dual-extrusion 3d printer. I would like to print Nylon and NylonX. I do not have an all-metal hot-end. I have already upgraded with spring-loaded extruders, heater socks, and newer heaters and thermistors. However, I can't print at the high temperatures. What extra modifications will I need to make to my printer to print NylonX? Do you have instructions for installing your hot-ends on my Bibo2? Is this what I'll need?
Can this be added to the Creality 3 pro series of printer?
since you are sold out of the standard version of the Titan Aero 12v can you use the mirrored version by itself just like you would the standard version? any advantage or disadvantage? Thanks
Does it work with delta style printer
You would need to print this item out to be able to mount it :https://www.thingiverse.com/thing:1521037 The wiring should not be too difficult but you will have to calibrate your esteps for the new extruder.
I would love to install this on my robo3d r1 plus,how hard is the install?? I have decent skill mechanically but I suck at electronics
Will the extruded work on a Prusa i3 mk3
For the Anycubic i3 Mega do i need the mirrored?
Would this be compatible with the Ender 3? Would there be any other mods necessary for it to work well?
Is it possible to use it with a CETUS3D?.
What stepper motor do you recommend with this extruder?
Will this work on the Sovol SV04 Idex?????? I cannot find anything that will work on this printer. If it does, is the gear a 1:3 ratio?
