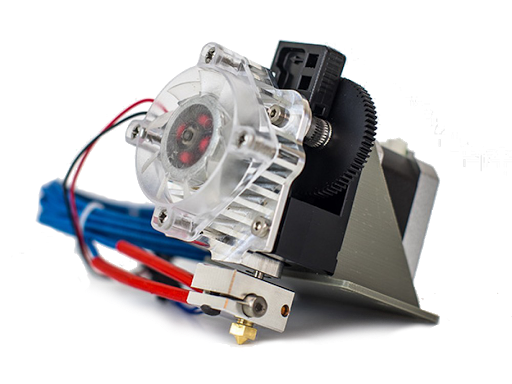

Water Jet CuttersE3D E3D Titan Aero HotEnd and Extruder - 1.75mm (24v)
The Titan Aero is an all-metal hotend that is built on the E3D V6 hotend. It is a compact and rigid design that is easy to install and maintain. It is capable of printing any filament at temperatures up to 300°C.
- Slim profile allows for additional Z-axis build volume
- Compact and rigid design improves print speed and quality
- All-metal hotend can print at high temperatures reliably
| List Price: | $95.00 |
|---|---|
| Availability: | Currently Unavailable |
Compact & Rigid design
The magic of the Aero is combining the hotend and extruder, producing a very slim profile. Upgrading to a Titan Aero allows for an additional 25mm of vertical (Z-axis) build volume thanks to it's small size. A compact design also makes the Aero extremely rigid and capable of printing faster than other hotends.
Easy to install and maintain
Mounted using the standard NEMA17 pattern, the Titan Aero is ready to be installed in a wide variety of existing 3D printers. Incorporating Titans engineering and proven extrusion system makes Aero a highly reliable and feature rich component. Loading and unloading filament, manual extrusion, adjusting idler tension and clearing debris are effortless with this simple design. The use of Titans 3:1 gearing allows for smaller motors and a lighter weight carriage, improving the long term reliability of your 3D printer as a whole.
All metal hotend built from the E3D V6
Built on the legendary E3D V6 all metal hotend, the Titan Aero reliably prints any filament at temperatures up to and beyond 300°C. With the V6 heatbreak, you can interchange components with any E3D parts. Choose your own temperature sensor, heater cartridge or nozzle, including any Volcano products.
The complete Titan Aero
Ultra responsive, excels with flexible material
The slim profile of the Titan Aero means the shortest possible filament path, making Aero the perfect extruder and hotend combo for printing flexible material. 3D printing flexible filament is challenging because the filament can bend and jam between the extruder and nozzle, a situation all but eliminated due to the tiny space between those two areas on the Titan Aero. This feature extends to standard filament as well, yielding improved responsiveness of the extruder. Start, stop and retract faster and with greater accuracy than any other hotend, providing more accurate, cleaner prints.
The new heat sink minimized filament path, making flexible filament easier to feed
What's in the box?
- Titan Aero Heatsink
- Heatsink Cooling Fan
- V6 Heatbreak
- V6 Heater Block
- v6 Heater Block Silicone Sock
- 30w Heater Cartridge
- Thermistor
- V6 0.4mm Nozzle
- Titan Body
- Idler Lever
- 1.75mm Filament Guide
- 2.85mm Filament Guide
- All required assembly hardware and electronics
Includes all the necessary assembly tools
Questions
E3D Titan Aero HotEnd and Extruder - 1.75mm (24v) I saw this response to the question about compatibility with the Ender 3 Pro, -----"Yes. You will need to print a mount though and likely do a bit of firmware tweaking. — answered by daniel.gonos January 9th, 2019 at 11:25AM"----- What mount and what firmware modifications are required? There is an upgraded mainboard that the manufacturer sells, will the 'firmware tweaking' need to be done on that as well?
Does is work on the CR-10 v3, and will I need a mount?
Does this work on an Anycubic Chiron? If so how do I mount/install it?
Will this fit the Sovol SV01 and do I need a mount?
Do I need 12v or 24v for an artillery genius printer?
I also have a ender 5plus does it work on that
I have a Ming day 3 rock can use your titan 24v
Would you recommend this for an Anycubic 4Max printer? And would I need to make an adapter for the mount to work?
do you have a hot end replacement for a xyz Davinci pro?
I didn't notice when I ordered, but this does not come with a stepper motor. Does the Nema 17 motor you sell fit the bill? https://www.matterhackers.com/store/l/nema-17-stepper-motor/sk/M1C4A52S
What mount do you suggest to put this on and Ender 3 V2? Is it just any one for the original Ender 3 or 3 Pro?
I would like to install this on my CR-10 V2. I believe I will need to print a mount, but am having difficulty finding one to print. Also, would I need to do a firmware update? I am running the TinyMachines firmware on my printer right now.
Is the included heatsink fan a quiet fan? If not, is it possible to replace it with a quiet fan? What replacement fan dimension will be compatible?
Hello, I want to know what type of Titan Aero is compatible with the Ender 3, what voltage to order? I appreciate your help
Want to use this on an artillery sidewinder V4. It has a volcano nozzle. Will the volcano nozzle work on this heater block or will I need to get a different one. And what parts will in need to get with this setup. Thanks James.
Can you use this on the Snapmaker 2.0? Or are other there any high performance hot end kit setups that will?
Can i fit this on my ender 5 pro?
Will this work on the Prusa printers?
Hi, Any chance I could install this on the two trees sapphire s? Regards Chris
Looking at 1 of these for a Ender 5.. what will I need to make this work? Direct bolt on? Will my stepper motor work? Any info will help . Thanks!
Will this work with the ender 3 pro?
Will this work on a flashforge finder?
What is the difference between the standard and mirrored model and what are the benefits of one over the other?
There are many different models to choose from. Which one will fit on my ender 3?
Two questions: 1. Can/should I put this on a Anycubic Chiron? I know it has a titan extruder but I don’t think it’s direct drive. 2. If I can what voltage do I need?
What size is nozzle?
I see that, besides this item, I would need a mount to install it into my ender 3. Do you sell that mount?
Will this work with the ANET A8?
It is kind of confusing that your product photos for the aero extruder are identical for the standard and mirrored products. (By the way, the version in the photo is the standard.) I had to go to e3d's website to find an accurate photo before I was sure what to order. Any chance you can update the images on your site? Thanks!
I would like to buy this for my Ender 3, would a carrier be the only thing I need to make to mount this? Does this come with a carrier mount at all?
Do you have parts for the aero
Will this work on the cr10s and if so what all do I need to do
HELLO GOOD AFTERNOON I HAVE A QUESTION I WANT THE AIR TITAN FOR AN ENDER 3 PRO THE TITAN IS ALREADY READY TO ASSEMBLE OR LACK ANOTHER PART TO BE ABLE TO ASSEMBLE IT
This item does require some assembly but it should also be worth noting that you may have to do some modification to your machine for it to function properly as this is not a direct drop-in replacement.
