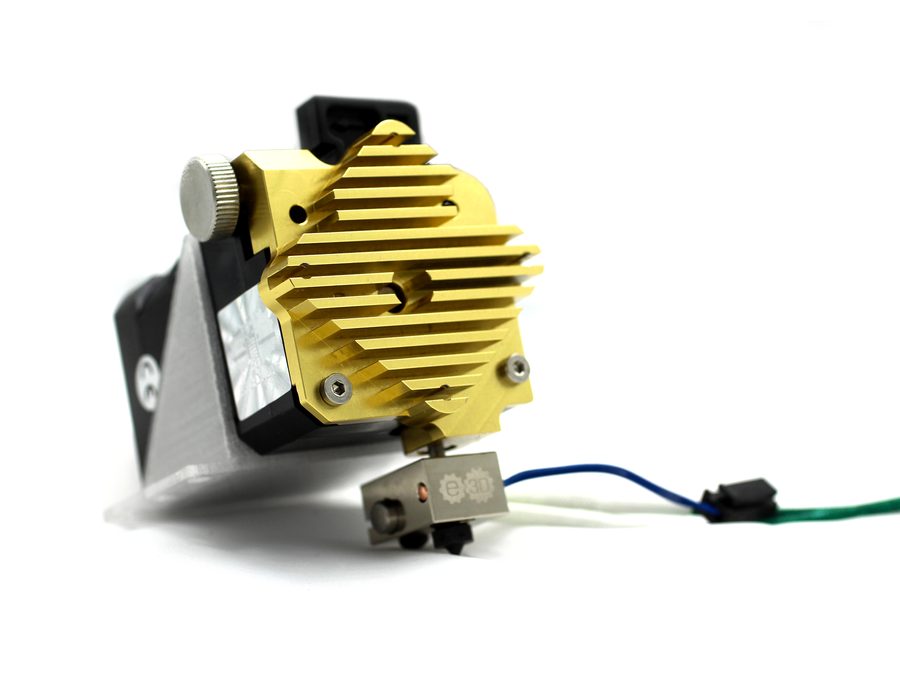

e3d CLEARANCE - E3D Titan Aero Gold Hotend and Extruder Kit - 1.75mm (24v)

The E3D Titan Aero combines the Titan Extruder and the V6 Hotend into one super-compact package. Available in 1.75mm and 3mm, 12v and 24v varieties, the Titan Aero is a great way to convert to direct drive. This Gold Edition Aero comes with some amazing upgrades like a Plated Copper Heater Block, Hardened Steel Nozzle, High Precision Heater Cartridge, and beautiful gold anodized heat sink.

List Price: $225.00
Availability: Currently Unavailable
Add to wishlist
Available Add-ons (1)
Price: $38.00 View Addon »
Show More Add-ons
Product No. M-NM0-Q38S
Please note, all Clearance Item purchases are final and are not covered by the MatterHackers Return Policy - this excludes Refurbished 3D printers and machines which have at least a 6-month warranty.

Reason for Clearance:  This item is being discontinued.

The E3D Titan Aero, Perfected

The Titan Aero is an incredible direct drive hotend thanks to it's compact design and constrained filament path. From high-speed printing to superior performance with flexible material, the Titan Aero is a great platform. The Gold Edition brings further upgrades along that normally are post-purchase changes. First off, your hotend will stand out thanks to the beautiful gold-anodized aluminium heat sink that not only performs, but adds a great flare to any 3D printer.

Genuine Noctua Fan

Moving air across your heat sink is crucial for consistent performance and avoidance of heat creep. The Gold Edition Titan Aero has the standard fan replaced by a premium Noctua fan for great airflow with virtually zero sound. The Noctua upgrade is the same size as the standard fan, so no changes to the design were required to make use of this component. If your printer can accommodate the standard Titan Aero, the Gold Edition will also fit perfectly.

High Temperature Components Where you Want Them

On Titan Aero Gold, everything below the heat break is upgraded to allow for day one printing of advanced materials like NylonX and NylonG. The standard heater block is replaced by the more durable plated copper variant which allows for printing temperatures upwards of 500°C. This high temperature component is further complimented by upgrading to a High Precision Heater Cartridge that has both more accurate machining and electrical components over the standard variant. The increased thermal conductivity of the plated copper block is maximized by pairing it with this heater and enabling quick heat-up times or higher speed printing.

Abrasion resistant components where you need them

The extruder hobb gear, which directly interfaces with and drives the filament, has been upgraded to Hardened Steel for an extended lifetime when dealing with abrasive materials. No matter how abrasive the material, this hobb will ensure a steady stream of filament heading towards the nozzle. On that note, the standard brass nozzle is left out of Gold Edition, and is instead replaced by the tried and true Hardened Steel v6 nozzle. From everyday printing with PLA to Carbon Fiber reinforced materials like NylonX and NylonG, the hardened steel v6 nozzle will not disappoint.

Technical Specifications

  • Extruder Type: Direct Drive
  • Extruder Gearing: 3:1
  • Extruder Hobb Material: Hardened Steel
  • Filament Diameter: 1.75mm
  • Electronics Voltage: 24v
  • Nozzle Size: 0.40mm
  • Nozzle Material: Hardened Steel
  • Heat Sink Color: Gold

What's in the box?

  • Gold Anodized Titan Aero Heat Sink
  • Noctua Heat Sink Cooling Fan
  • v6 Heatbreak
  • v6 Plated Copper Heater Block
  • 30w High Precision Heater Cartridge
  • Thermistor Cartridge
  • Hardened Steel v6 0.4mm Nozzle
  • Titan Body
  • Idler Lever
  • 1.75mm Filament Guide
  • 2.85mm Filament Guide
  • All required assembly hardware and electronics

Questions View All Responses

I bought this product from you on May 9 2020 and just broke the heat break. It would seem that my unit does not accept standard v6 heat breaks. I've ordered multiple, including 3 directly from E3D - none fit. The Aero side on my unit has the exact same size and thread as the heater block side. I can flip a v6 around and it threads perfectly into the Aero side. How can I get this resolved?

Add Response

how hot can you print with this thermistor/setup?

Add Response

Will this be a direct bolt on for an Ender 5 Pro? Thanks.

View 1 Response

I have a Artillery sidewinder X1 - looking for upgrades will the e3D titan work on the X1?

View 1 Response

Will this work on a Creality CR-10 V2?

View 1 Response
