Elegoo Elegoo OrangeStorm Giga High-Speed Large-Format 3D Printer Kit Starter Bundle
The OrangeStorm Giga by Elegoo is a large-scale industrial-grade 3D printer with an 800mm x 800mm x 1000mm build volume, fast printing up to 300 mm/s, and supports up to 4-nozzle simultaneous printing. It requires assembly, with optional Starter Bundle assistance. Bundles available: Starter (includes 2 hours of Tech Time), Enterprise (includes extra printhead and spool holder kits), and Deluxe (combines both extras and Tech Time).
- Massive 800mm x 800mm x 1000mm build volume
- Prints up to 300 mm/s speed
- Supports 4-nozzle simultaneous printing
To learn about available discounts, training, and maintenance options, please use the form below and a MatterHackers Expert will contact you within one business day. Alternatively, you can always feel free to give us a call at +1 (800) 613-4290 or email sales@matterhackers.com.
To get an instant quote, add everything you need to your cart, and click "Download as quote".

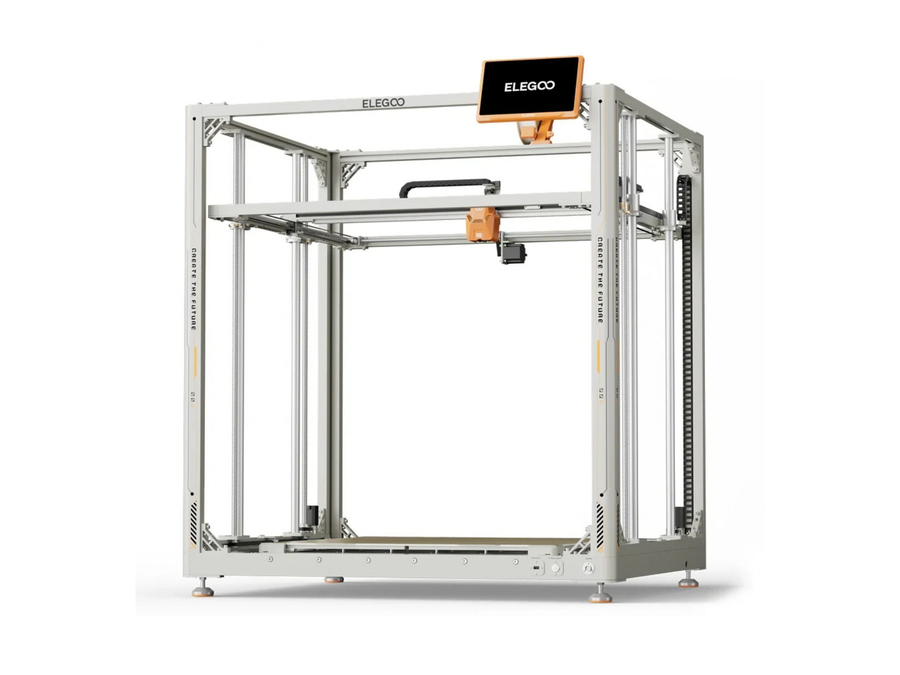

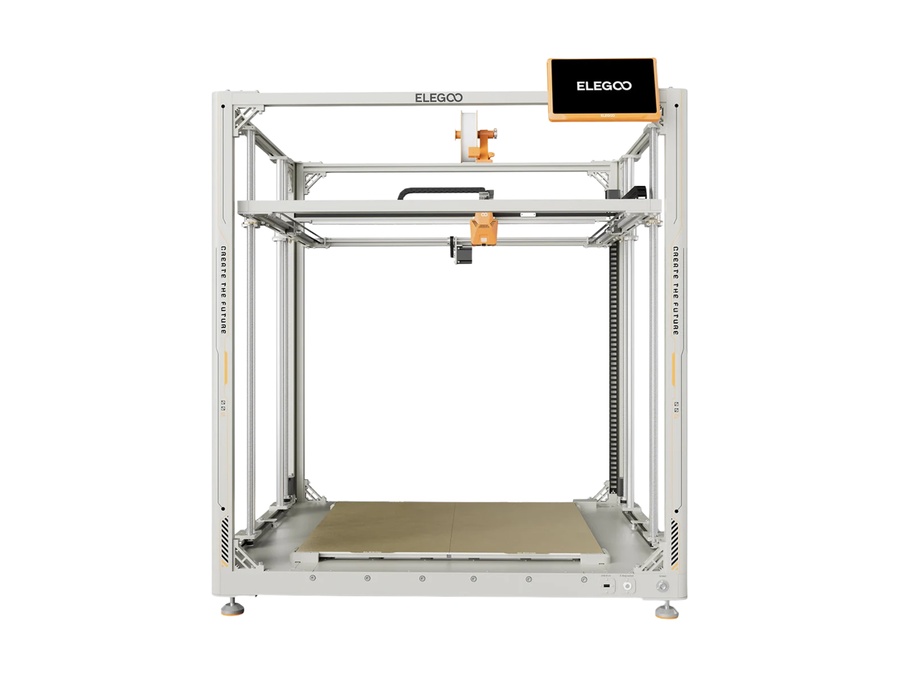

The OrangeStorm Giga by Elegoo
The OrangeStorm Giga by Elegoo is a behemoth of a 3D printer that's ready to stomp across the world of large-scale printing. This industrial-grade FDM powerhouse boasts a colossal build volume of 800mm x 800mm x 1000mm, combining lightning-fast printing speeds with multi-nozzle capabilities to turn your most gigantic ideas into reality. This is a large kit that requires assembly, so if you want any help, the Starter Bundle includes 2 hours of assembly assisted and calibration guidance, to get you started, right out of the box.

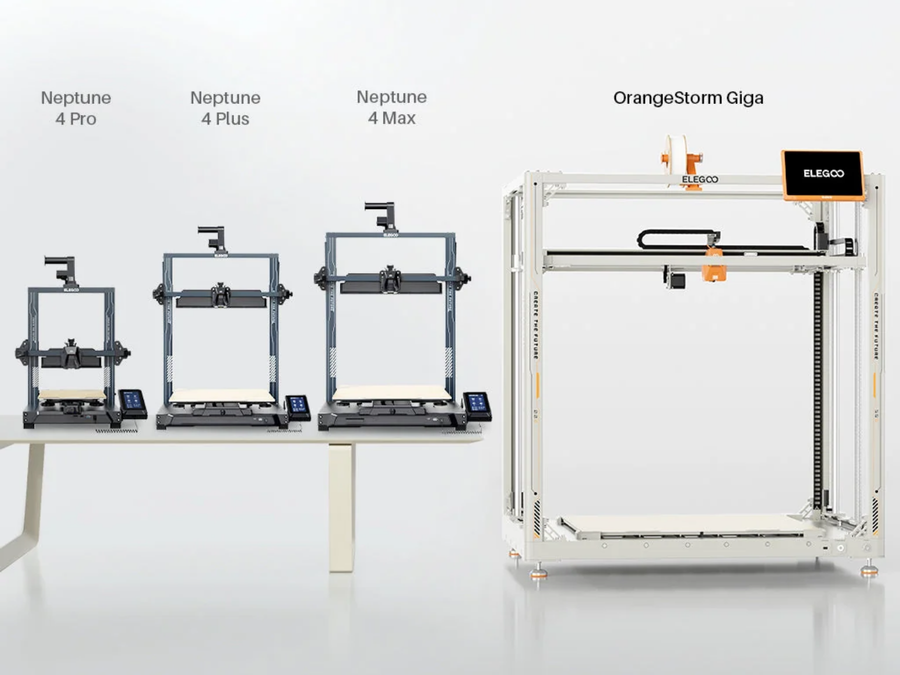

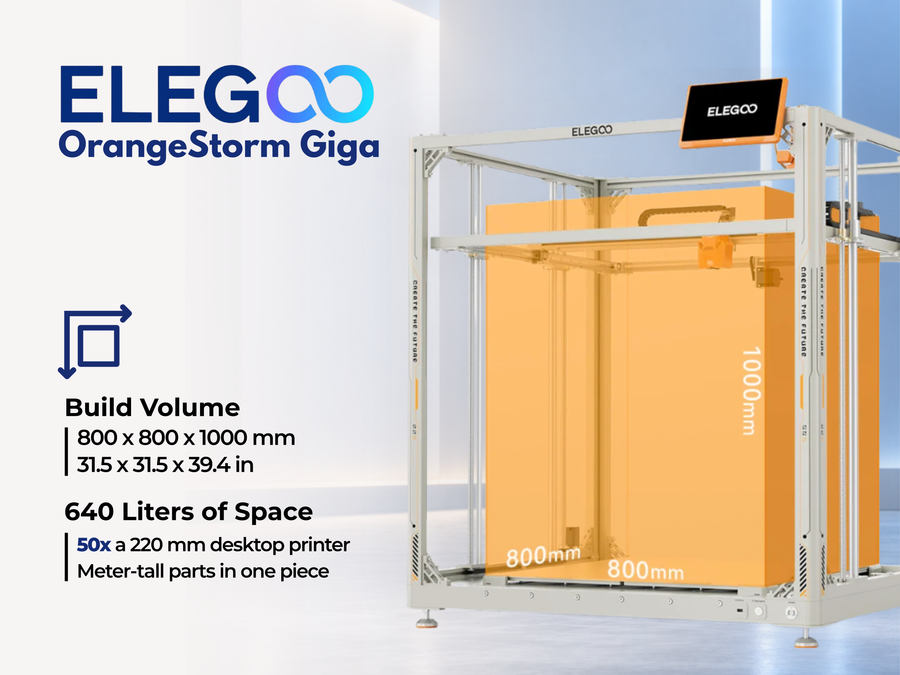

Gigantic build volume: 800mm x 800mm x 1000mm (31.5" x 31.5" x 39.4")

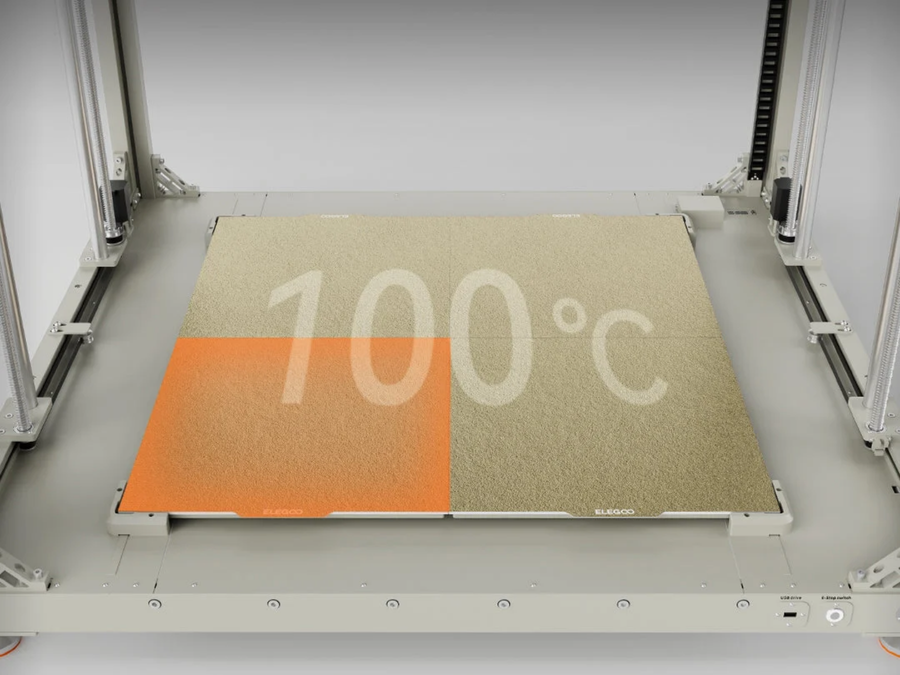

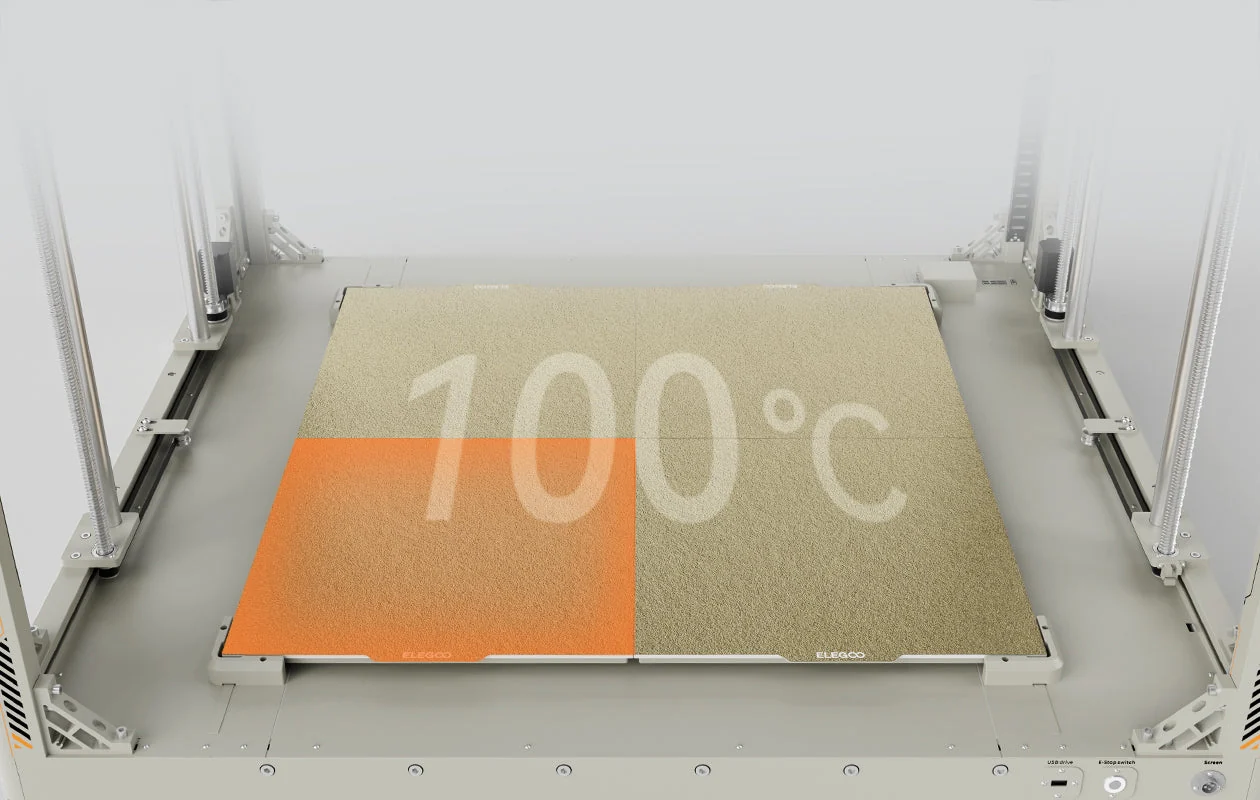

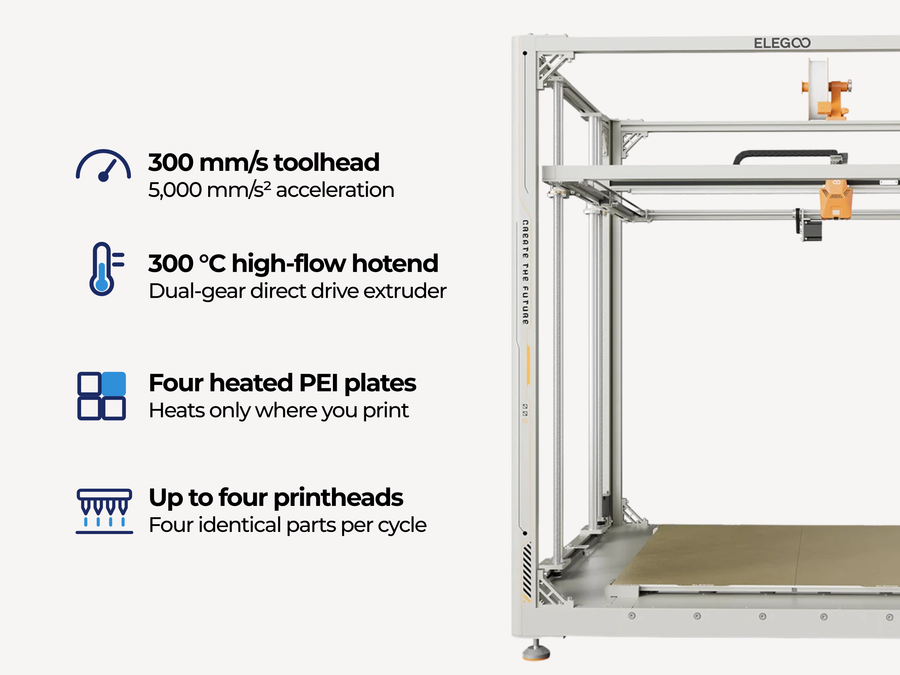

Efficient heat bed activates where you're printing

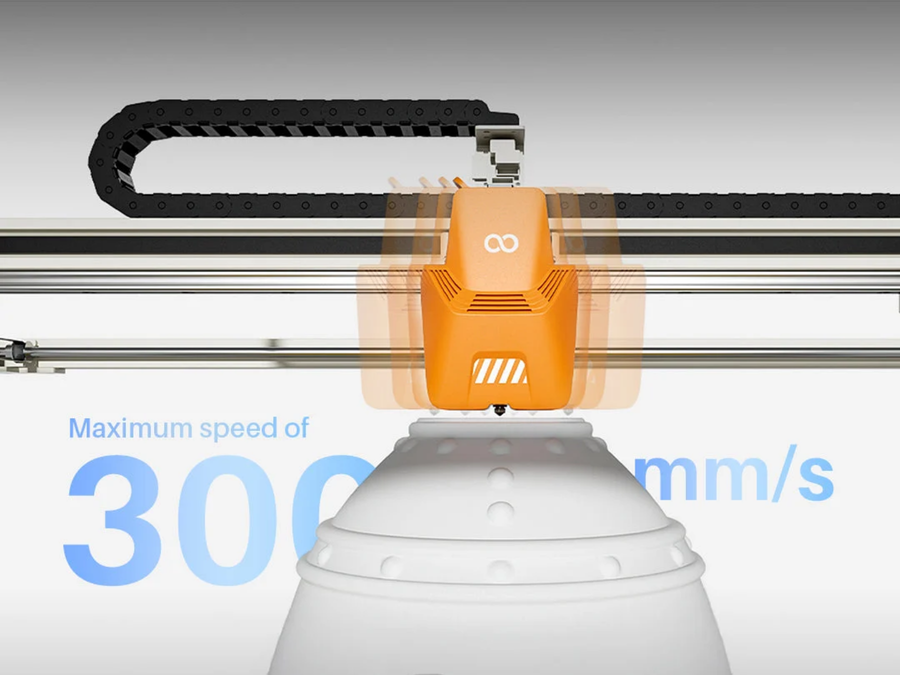

Fast printing up to 300 mm/s

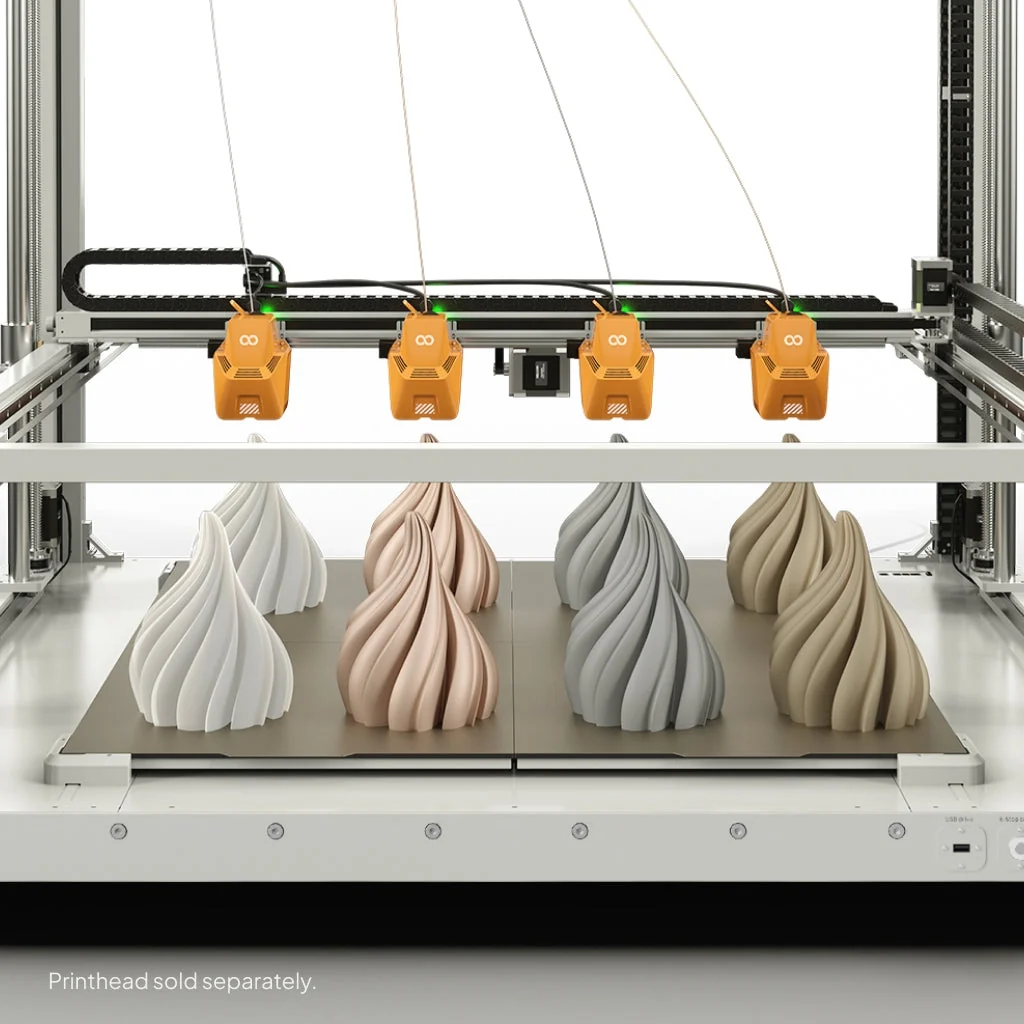

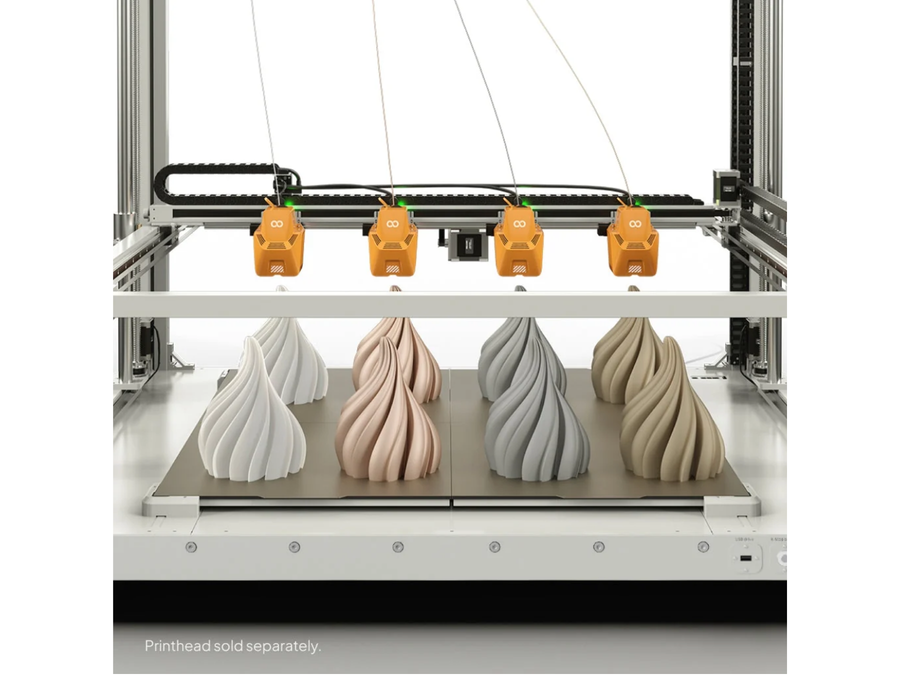

Supports up to 4-Nozzle simultaneous printing

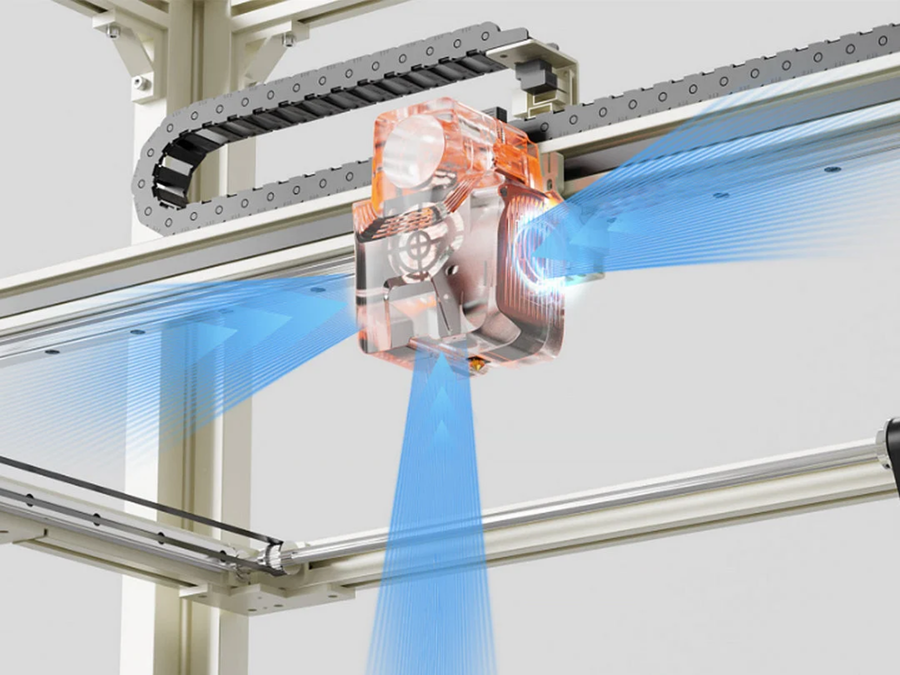

Powerful, intelligent cooling fan
What's Included In Each OrangeStorm Giga Bundle?
- Starter Bundle:
- Elegoo OrangeStorm Giga x1
- MatterHackers Tech Time - One Hour x2
- Enterprise Bundle:
- Elegoo OrangeStorm Giga x1
- OrangeStorm Giga Printhead Kit x3
- OrangeStorm Giga Large Spool Holder Kit x3
- Deluxe Bundle:
- Elegoo OrangeStorm Giga x1
- OrangeStorm Giga Printhead Kit x3
- OrangeStorm Giga Large Spool Holder Kit x3
- MatterHackers Tech Time - One Hour x2

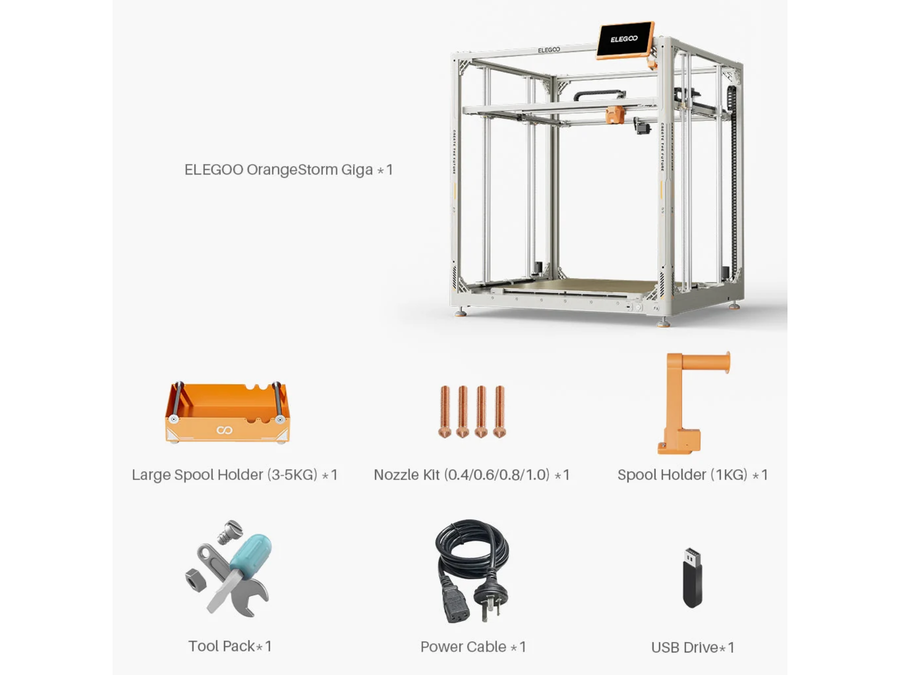

What's Included With the Elegoo OrangeStorm Giga?
- OrangeStorm Giga 3D Printer Kit x1
- PrintHead x1
- LCD Screen x1
- Leveling Plate x2
- Filament Breakage Detector x2
- Filament Guide Assembly x1
- Z-Axis Caterpilar Cable Clip x1
- Z-Axis Endstop x2
- Profile Corner Bracket x8
- Fastener Set x1
- Spool Holder Kit
- Arm x1
- Holder x1

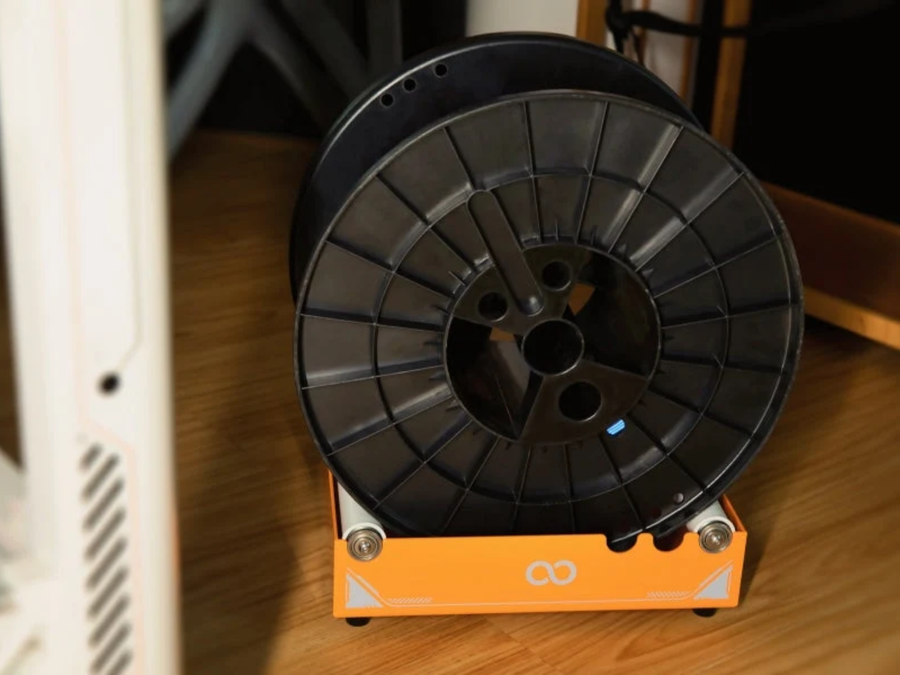

- Large Spool Holder Kit (External) x1
- Tool Set x1
- Power Cable x1
- Leveling Card x1
- Grease x1
- Users Manual x1
What Are the Technical Specifications of the Elegoo OrangeStorm Giga?
- Printing Technology: FDM
- Build Volume: 800mm x 800mm x 1000mm (31.5" x 31.5" x 39.4")
- Build Plaform Size: 820mm x 820mm (32.3" x 32.3")
- Comprised of: 4x PEI Plates, each 410mm x 410mm (16.1" x 16.1")

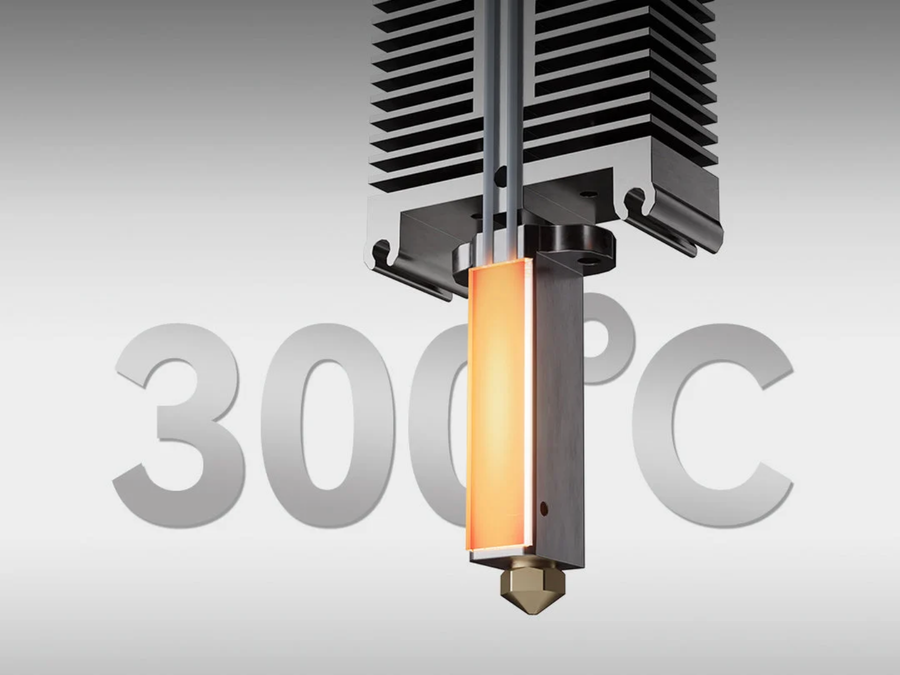

- Max. Nozzle Temp.: 300C
- Max Hotbed Temp.: 100C
- Filament Diameter: 1.75mm
- Max Print Speed: 300 mm/s
- Max Acceleration Speed: 5000 mm/s
- Filament Capability: PLA, PETG, TPU, Nylon
- Resume Print Functionality: Yes
- Filament Detection: Yes
- Voltage: 100 - 120V / 220 - 240V
- File Transfer Method: USB, LAN, WiFi
- File Format: .stl, .obj
- UI Languages: English, French, German, Russian, Spanish, Italian, Japanese, Chinese
- Printer Size: 1224mm x 1164mm x 1425mm (48.2" x 45.8" x 56.1")
- Net Weight: 104kg (229 lbs)
- Working Footprint: 1224mm x 1520mm x 1570mm (48.2" x 60" x 62")
- Package Sizes:
- Box 1: 1350mm x 1215mm x 420mm (53.1" x 47.8" x 16.5")
- Box 2: 1350mm x 1215mm x 350mm (53.1" x 47.8" x 13.8")
- Gross Weight: 145kg (320 lbs)
