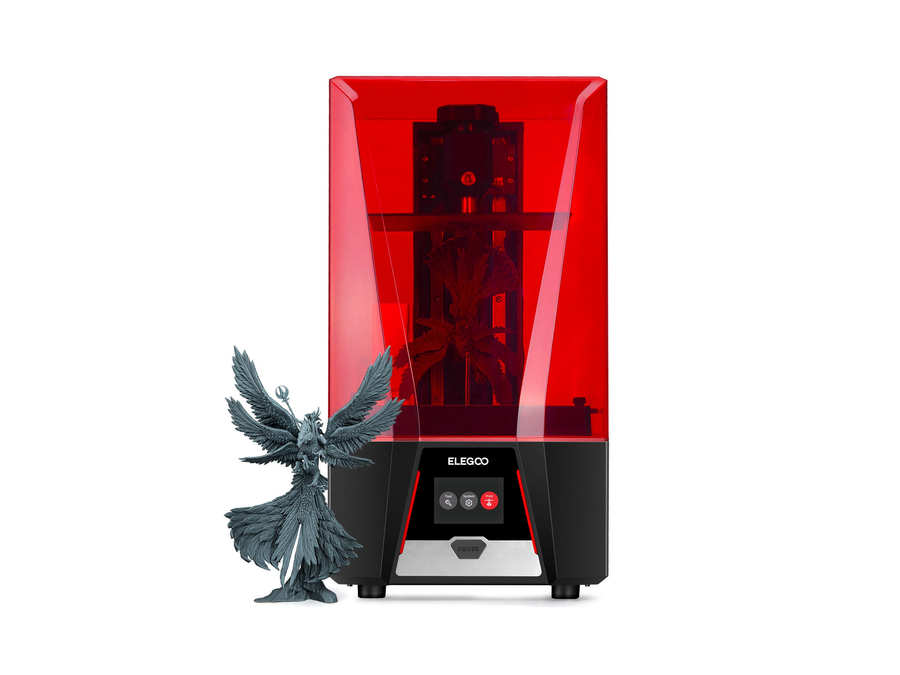

Elegoo Elegoo Saturn 2 8K Mono LCD Resin 3D Printer

Elegoo Saturn 2 is an mSLA 3D printer with a 10" 8K monochrome LCD screen, a large printing volume of 219mm x 123mm x 250mm, and a fast cure time of a second per layer. It features a scratch-resistant tempered glass, Fresnel collimating light source, dual linear rails, sandblasted surface build plate and an air filtration system with an activated carbon filter for a pleasant resin 3D printing environment.

  • 8K 10" Mono LCD screen with HD resolution
  • Build volume of 219 x 123 x 250mm (8.6" x 4.8" x 9.8")
  • XY Resolution of 28 microns
  • Air filtration system with activated carbon filter
List Price: $600.00
loading...
Available Add-ons (2)
Price: $36.00 View Addon »
Price: $25.99 View Addon »
Show More Addons
Product No. M-Y65-WJE5

ELEGOO SATURN 2 8K

INCREDIBLY DETAILED RESIN 3D PRINTING

The Elegoo Saturn 2 is an mSLA resin 3D printer that produces high-resolution parts thanks to its 10" 8K resolution screen.

Key Features of the Elegoo Saturn 2 8K Resin 3D Printer:

  • Build volume of 219 x 123 x 250mm
  • 10" 8K Mono LCD, 405nm Wavelength
  • XY Resolutions of 28 microns
  • Air Purifier Included
  • Tempered Glass Screen Protector
  • Sandblasted Build Plate
  • Double Z-Axis Linear Railway
  • Proprietary FCLS lighting


ULTRA-HIGH RESOLUTION PRINTS

Elegoo's Saturn 2 utilizes an 8K HD LCD Screen with their patented FCLS technology to render the tiniest of features for consistently outstanding results.

  • 8K 10" Mono LCD
  • XY Resolution: 28.5 microns
  • Patented FCLS (Fresnel collimating light source) technology
High-detailed fantasy dragon model by Dragon Trappers printed on an Elegoo Saturn 2 8K Resin 3D Printer

FCLS technology on the Elegoo Saturn 2 8K Resin 3D Printer

DESIGNED FOR CONSISTENT RELIABILITY

The Saturn 2 is engineered to reliably deliver consistent fantastic results with every print from features like a double-axis linear rail for stable build platform movement to its patented FCLS that uniformly redistributes light towards the platform.

  • Sturdy Stable Movement w/ Double-Axis Linear Rails
  • 92% Light Uniformity w/ FCLS
  • Strong Adhesion w/ Sandblasted Build Plate
  • Better Print Release w/ PFA Liner
  • Scratch & Spill Protection w/ Tempered Glass Protector

PLEASANT RESIN 3D PRINTING

The Elegoo Saturn 2 8K Resin 3D Printer has a plug-in activated carbon filter to reduce the unpleasant odor that comes with some resin materials.

  • Included Air Purifier
  • Improve Resin 3D Printing Environment
  • Exhaust System Optional w/ Removable Panel on the UV Cover
Air Purifier being plugged into an Elegoo Saturn 2 8K Resin 3D Printer

What Are the Main Differences between Elegoo's Top-of-the-Line Resin 3D Printers?

Elegoo Mars 3 Pro 4K Elegoo Saturn 2 8K Elegoo Jupiter 6K
Model Mars 3 Pro 4K Saturn 2 8K Jupiter 6K
Price $299.99 $549.99 $1299.99
Build Volume 143 x 89 x 175mm
(5.6" x 3.5" x 6.9")
219 x 123 x 250mm
(8.6" x 4.8" x 9.8")
278 x 156 x 300mm
(10.9" x 6.1" x 11.8")
LCD Screen 6.6" Mono LCD 10" Mono LCD 12.8" Mono LCD
High Definition 4K (4098x2560 px) 8K (7680x4320 px) 6K (5448x3064)
XY Resolution 35µm 28µm 51µm
Max Print Speed 50 mm/h 70 mm/h 70 mm/h
Double Axis
Linear Rails
No Yes Yes
Display 3.5" Touchscreen 3.5" Touchscreen 5" Touchscreen
Free Chitubox Pro 1 Year
Auto Resin Feeder ✔️
LED Light Strip ✔️
All-Metal Structure ✔️
Aluminum Handles ✔️
UV-tinted Glass Door ✔️
UV-tinted Cover ✔️ ✔️

What Comes with the Elegoo Saturn 2 8K Resin 3D Printer?

1 x Elegoo Saturn 2 3D Printer (main body w/ resin tank)
1 x Red UV Cover
1 x Build Platform
1 x Mini Air Purifier
1 x Set of backup screws
1 x Set of wrenches
1 x USB Disk
1 x Adapter & cable
1 x Flush cutters
1 x Set of scrapers (2 pcs)
1 x Metal Scraper
1 x Plastic Putty Knife
5 x Disposable funnel
2 x Disposable mask
1 x Pair of disposable gloves
1 x Leveling Paper
1 x Instructions Manual

*Please refer to the included packing list/manual included with your printer for the most up-to-date list.


What are the Technical Specifications of the Elegoo Saturn 2 8K Resin 3D Printer?

GENERAL
Technology mSLA
Assembly Fully-Assembled
Made in China
Dimensions
(W × D × H)
305.9 x 273 x 567.3mm
(12.04" x 10.75" x 22.33")
Weight 11kg (24.3lbs)
LIGHT
Light Source UV LED
Light Source Design FCLS (Fresnel Collimating Light Source)
Light Source Wavelength 405nm
LCD Screen 10" Monochrome LCD
LCD Screen XY Resolution 8K HD, 28µm (0.0285mm)
7680x4320 pixels
PRINTER PARAMETERS
Build Volume
(W × D × H)
218.88 x 123.12 x 250mm
(8.62" x 4.85" x 9.84")
Layer Height 0.01 – 0.2 mm (10µm - 200µm)
Print Speed 30 - 70mm/h
Z Axis Positioning Accuracy 0.00125mm (1.25µm)
FEP PFA Release Liner
PRINTER FEATURES
LCD Screen Protector 9H Tempered Glass Protector
Build Plate Sandblasted surface
Air Purifier Included activated carbon filter
Material Compatibility 405nm UV resins
SOFTWARE
Slicer Software CHITUBOX
Supported File Export Format STL, OBJ, CBDDLP, ZIP, SLC, WOW, FHD,
CWS, CTB, PHZ, SVGX, LGS, CFG, etc.
OS compatibility Windows, macOS, Linux
COMMUNICATION
Display 3.5" LCD Touchscreen
Connectivity USB
POWER REQUIREMENT
Operating Voltage 100–240V, 50/60Hz, 24V 4A
WARRANTY
Warranty Period 12 Months
