Full Spectrum Laser FSL Pro Series PS24 Laser System - 90W
The P-Series 24" x 16" 90W Laser System comes standard with the industry-leading RetinaEngrave software and is designed for heavy use, and can even handle industry-scale production. The P-Series is perfect for business use, but it is also a great tool for home users who want to take their creations to the next level.
Top PS24 Laser SystemFeatures:
• Browser-based software — no internet required
• 7" LCD touchscreen
• Rotary attachment upgrades available
• Pass through doors for large sheets of material
• Auto Focus
• Technical support and 2-year warranty
| List Price: | $8,995.00 |
|---|---|
| Price: | $7,995.00 |
| Price: | $... |
| Order Now: | Processed Immediately Ships via Freight - some fees may apply. |
THE FSL PRO SERIES PS24 LASER SYSTEM - 90W
A POWERFUL TOOL FOR BUSINESSES OR AT-HOME USERS
Designed for heavy use, and can even handle industry-scale production. The P-Series is perfect for business use, but it is also a great tool for home users who want to take their creations to the next level.
Here are some key features for the PS24 Laser System:
- Browser-Based Software - no internet required. (Windows, Mac and Linux compatible).
- 7" LCD Touch Screen - allows users to control major functions right from the machine.
- Rotary attachement - (optional) allows for cylindrical objects such as cups to be engraved.
- Motorized Z-table - enables users to fit larger objects inside the work area.
- Pass-Through Doors - large sheets of material are no problem with this feature.
- Autofocus - makes workflow faster and more precise.
- 2 Year Warranty
Professional Grade Laser System
The next step in precision, power, and performance. Designed for industry-scale production and heavy usage output. Now featuring LCD Touchscreen controls and the powerful, easy-to-use RetrinaEngrave v2.0 laser control software.
- Engraving Area: 24" x 16" (610mm x 406mm)
- Laser Classification: Class 3R
- Laser Power: 90W
- Focus Lens Included: 2.5"
Feature-packed LCD Touchscreen controls
Professional Grade Laser Systems include exclusive innovations such as feature-packed LCD touchscreen controls and the powerful, easy-to-use RetinaEngrave v3.0 laser control software, highlighting a full design suite and compatibility with Mac, PC or Linux. The new era of professional grade laser systems has arrived!
- File import options include: JPG, PNG, BMP, TIFF, SVG, DXF, DWG
- Ability to Connect Through Local Network (Ethernet or Wireless) without Internet Connection
802.11n - Operation Modes: Precision Raster, Vector or Combined Modes
EASY TO USE LASER CONTROL SOFTWARE
RetinaEngrave v3.0 is a powerful, browser-based software lives right on your laser and is accessed using your favorite browser and operating system. Simply input the IP address of your machine into your browser address bar and you are ready to go. Best part? There's nothing to download, ever
- Compatible with PC, Mac & Linux
- Browser compatibility: Google Chrome (recommended), Safari, Firefox, Edge
- Minimum Screen resolution of 1024 x 768 Pixels
Compatible with a wide range of accessories
The PS24 Laser System is compatible with a wide range of accessories

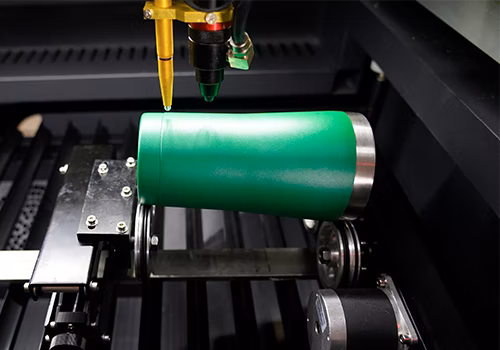

- Engrave curved objects with a rotary attachment. Work with tumblers, glassware and more.
- Upgrade your cooling system for peak performance of the laser.
- Increase your laser tube power to accelerate cutting speed and marking ability.
What Comes with the FSL Pro Series PS24 Laser System - 90W?
ACCESSORIES
- Radiator Water Chiller
- Exhaust Fan
- Air Compressor
- Honeycomb Table
- Knife Edge Table
- 2.5" Focus Lens
- 2-year Standard Warranty
TOOLS
- Tool Box
FSL Pro Series PS24 Laser System - 90W Technical Specifications
What are the Dimensions for the PS24 Laser System?
- Engraving Area: 24" x 16" (610mm x 406mm)
- Machine Dimensions: 56" x 31.5" x 36.5" (1420mm x 800mm x 843mm)
- Weight: 260 lbs (110 kg)
- Z-Table Range: 8"
What are the PS24 Laser System's properties?
- Laser Classification: Class 3R
- Laser Type: Sealed CO2 Laser Tube
- Laser Power: 90W
- Focus Lens Included: 2.5"
- Power Supply: AC 110V native (220V option available)
- Gross Power: < 1000W
- Operation Modes: Precision Raster, Vector or Combined Modes
- Motion Control: High-Speed Stepper Motors
- Operating Temperature: 0C - 45C
What is Materials is the PS24 Laser System compatible with?
- Acrylic: Cuts & Engraves
- Coated Metals: Engraves
- Fabric: Cuts & Engraves
- Glass: Engraves
- Leather: Cuts & Engraves
- Paper: Cuts & Engraves
- Rubber: Cuts & Engraves
- Stone: Engraves
- Wood:Cuts & Engraves
What is the Software for the PS24 Laser System?
- RetinaEngrave v3.0
- Compatibility: PC, Mac & Linux
- Browser Compatibility Browser Compatibility: Google Chrome (recommended), Safari, Firefox, Edge
- File Import Options File Import Options: JPG, PNG, BMP, TIFF, SVG, DXF, DWG
- Minimum Screen Resolution Minimum Screen Resolution: 1024 x 768 Pixels
- Wireless Compatibility Wireless Compatibility: Ability to Connect Through Local Network (Ethernet or Wireless) without Internet Connection
802.11n
