IGUS iglidur l180-PF Tribo-Filament - 1.75mm (0.25kg)

iglidur I180-PF is the first filament to be optimized for repetitive movement, is up to 50 times more abrasion resistant than other 3D printing materials, and creates an extremely low amount of friction. These characteristics, found nowhere else in the 3D printing world, make it possible to print functional bearings that are self-lubricating.

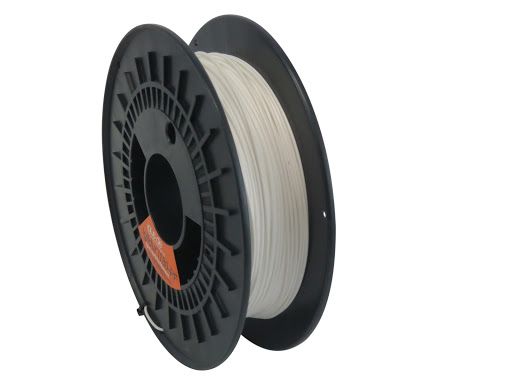

Spool :

• Diameter : 200 mm
• Center hole diameter : 55 mm
• Width : 54 mm

iglidur® I180-PF technical specifications :

• Hot-end : 220 – 250 °C
• Bed : 90 – 110 °C
• Density : 1.21 g/cm3
• Shore D : 66
• Saturation with moisture absorption at 23°C / 50% r. h. : 0.3 weight %
• Saturation with water : 0,9 weight %
• Flexural modulus: : 1000 MPa
• Flexural strength : 44 MPa

Thermal Properties :

• Highest long term service temperature : 80°C
• Highest short term service temperature : 90°C
• Highest short term ambient temperature : 105°C
• Lowest service temperature: -40°C

Electrical Properties :

• Specific volume resistivity  : > ^{10^12} Ω / cm
• Surface resistivity  : > 10^11 Ω
