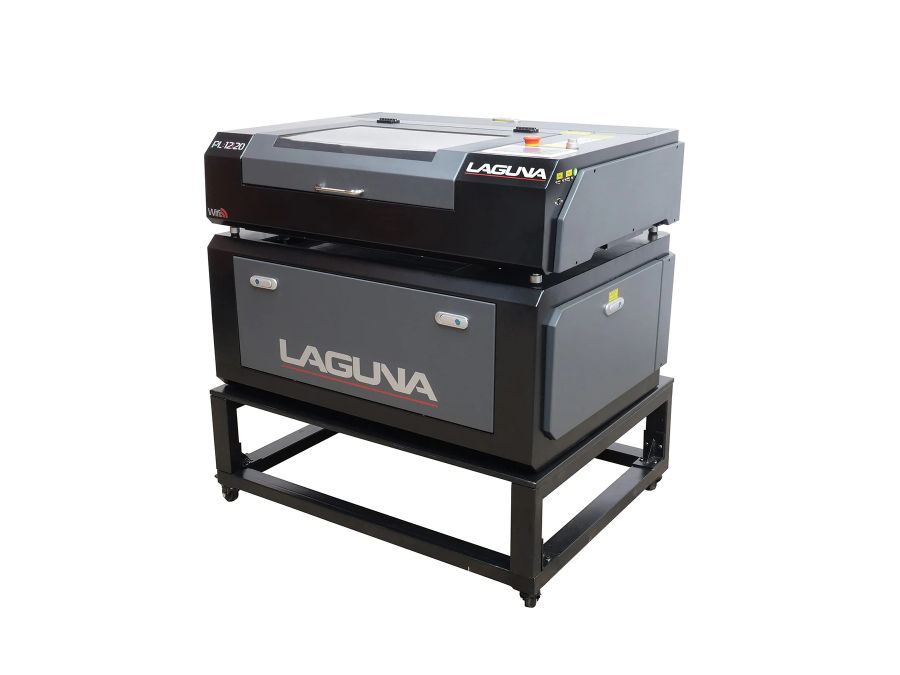

Laguna Tools Laguna Tools PL 12|20 40W CO2 Laser - 12 x 20
the Laguna PL12|20 laser is a cutting-edge tool that opens up a world of opportunities in design, engineering, and material sciences. This 40-watt CO2 laser offers a hands-on experience with its 12" x 20" work area, allowing for intricate projects and collaborative learning, while the advanced features like autofocus and a bottomless design inspire innovation and creativity.
- 40-watt C02 Laser
- 12" x 20" work surface
- Auto adjusting work table and Automatic focusing
| List Price: | $5,999.00 |
|---|---|
| Price: | $5,999.00 |
| Price: | $... |
| Order Now: | Processed Immediately Ships via Freight - some fees may apply. |
Qty
Request Quote
loading...
Available Add-ons (3)
Price: $7,327.00
Price: $199.00
Price: $130.00
Product No. M-726-TP50
Laguna Tools PL 12|20 Features:
- 12″ x 20″ workspace, perfect for a variety of projects.
- Equipped with a 40-Watt CO2 laser for precise cutting and engraving.
- Features a 12″ Z-axis depth to accommodate thicker materials.
- Comes with an industrial-grade water chiller for optimal laser performance.
- Includes an air pump and exhaust fan to maintain a clean and safe operating environment.
- Offers multiple work surfaces including steel, honeycomb, and a unique bottomless option for oversized items.
What's included with the Laguna Tools PL 12|20 Laser
- PL12|20 Laser Machine: 12" x 20" work surface
- 40-Watt CO2 Laser
- Industrial Water Chiller
- Air Compressor
- Blower
- Honeycomb Table Included
- Knife Table Included
- Z-Axis Base; 12" Capacity
- Air Pump
- Exhaust Fan
- Multiple Work Surfaces: Steel, Honeycomb, Bottomless
- Ruida RDWorks Laser Software for Windows / Lightburn
*Laguna Tools warrants its products and parts against defects in materials or workmanship for two (2) years from the original date of receipt. This does not include the laser tube which is warranted for one (1) year. Focal lenses are warranted for 30 days.
Technical Specifications
Power
- Voltage: 115V
- Hertz: 60Hz
- Phase: 1Ph
- Running Amperage: 9.6A (14.4A with all components)
- Recommended Breaker: Dedicated 15A on power strip for all components
CO2 Laser
- Optics: U.S. II-VI Focusing lens & Beam Combiner
- Drive System: Leadshine Motors & 3PH Drivers
- Linear Rails: Hiwin HG Resin Capped
- Work Envelope: 12″ x 20″
- Table Lift: 12″
- Control Software: RUIDA RDWorks, Lightburn option
- Engraving Speed: 0-500mm/s
- Cutting Speed: 0-500mm/s
- Laser Output Control: 0-100% Software controlled
- Exhaust: 300CFM
- Working Environment: 32° – 104°F, Humidity 5-95%
Dimensions
- Net Weight: 300 Lbs (all components)
- Ship Weight: 325 Lbs
- Assembled Height: 10″/27″/40″ (top unit, with base, with base and stand)
- Assembled Width: 40″
- Assembled Depth: 30
Chiller CW-3000DG
- Voltage: 115V
- Hertz: 60Hz
- Phase: 1Ph
- Running Amperage: 0.9A
- Net Weight: 21Lbs
- Ship Weight: 26Lbs
- Tank Capacity: 9L (2.3 Gal)
- Flow: 10L/min (2.64 Gal/min)
Air Pump
- Voltage: 115V
- Hertz: 60Hz
- Phase: 1Ph
- Running Amperage: 1.3A
- Air Flow: 5 CFM
- Net Weight: 9.9 Lbs
- Ship Weight: 10 Lbs
Exhaust Fan
- Voltage: 115V
- Hertz: 60Hz
- Phase: 1 Ph
- Running Amperage: 2.6A
- Horse Power: 1/3HP
- Air Flow: 300 CFM
