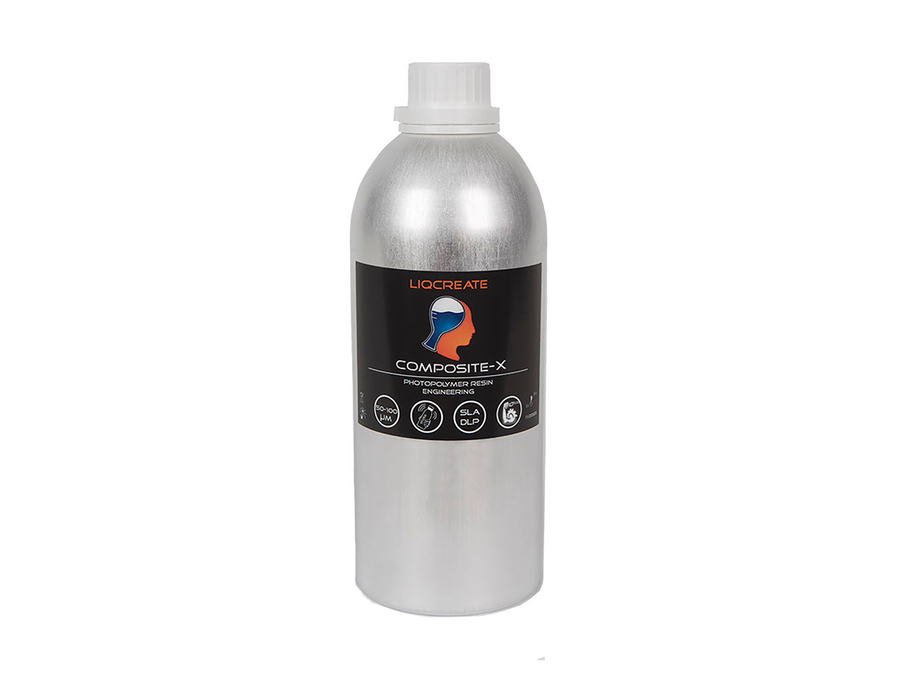

Liqcreate Liqcreate Resin for SLA, DLP & MSLA 3D Printers - Composite-X (375g)
Liqcreate Composite-X is an ultra-rigid ceramic-reinforced resin with a flexural modulus over 9000 MPa, ideal for automotive and aerospace components. It offers 3D printer compatibility (385-420nm), high chemical resistance, low shrinkage, and increased strength after UV curing. Applications include aerospace, rapid tooling, and industrial parts. Use with protective measures and follow safety guidelines.
- Ultra-rigid ceramic-reinforced composite
- Flexural Modulus over 9000 MPa
- High chemical resistance
| Price: | $75.00 (with add-ons) |
|---|---|
| Availability: | In Stock |
| Order Now: | Ships Today Free U.S. Shipping |
LIQCREATE COMPOSITE-X RESIN
Ultra-rigid ceramic-reinforced composite resin
Liqcreate Composite-X, is engineered to be the most robust within its range, boasting an impressive flexural modulus exceeding 9000 MPa. Upon curing, this ceramic-infused resin can further enhance its stiffness, making it suitable for potential applications in crafting heavy-duty components for the automotive or aerospace industries.
MAIN FEATURES:
- 385 – 420nm wavelength 3D Printer compatibility
- High chemical resistance
- Low shrinkage
- Flexural Modulus of over 9000 MPa
- Flexural Strength of 150-170 MPa (after post-UV curing)
- Increased tensile and compression strength (after post-UV curing)
- Reduced water sorption (after post-UV curing)
APPLICATIONS:
- Aerospace & other aerodynamic applications
- Rapid tooling
- Industrial parts
- Functional parts
HOW TO USE:
- Shake the bottle for at least 60 seconds before use.
- Allow the resin to rest for 10 minutes after shaking to let air bubbles escape before pouring into resin vat.
Note: This resin can be poured back into the bottle after use, however, it is important to check for residual pieces of polymer before doing so. Always take protective measures when handling Liqcreate resins. For more details on safety please check the attached Technical Data Sheet.
TECHNICAL SPECIFICATIONS:
- Container: Bottle
- Net weight: 1.5kg
- Wavelength: 385 - 420nm
- Density: 1.52 g/cm3
COMPATIBLE WITH:
The following compatible 3D printers and settings are available for Liqcreate resins, which are internally tested by Liqcreate and industrial partners:
- atum3D DLP Station 5
- Shining3D AccuFab-L4K
- Ackuretta Freeshape 120
- Prusa SL1
- 3DWare Zeta 4K
- Anycubic Photon
- Anycubic Photon Mono
- Anycubic Photon Mono 4K
- Anycubic Photon Mono SE
- Anycubic Photon Mono X
- Anycubic Photon M3
- Anycubic Photon M3 Plus
- Anycubic Photon D2
- Elegoo Mars
- Elegoo Mars 2
- Elegoo Mars 3
- Elegoo Saturn
- Elegoo Saturn 2
- Elegoo Saturn 3
- Phrozen Sonic Mini 4K
- Phrozen Sonic Mighty 4K
- Phrozen Sonic Mini 8K
- Peopoly Phenom L
- Zortrax Inkspire
- Zortrax Inkspire 2
- Peopoly Phenom Prime
- Creality Halot-Sky
- Creality LD-002H
- Nexa3D XiP
- Asiga Freeform PICO
- Asiga Max UV & Pro 4K
- 385 – 420nm MSLA, SLA & DLP printer
