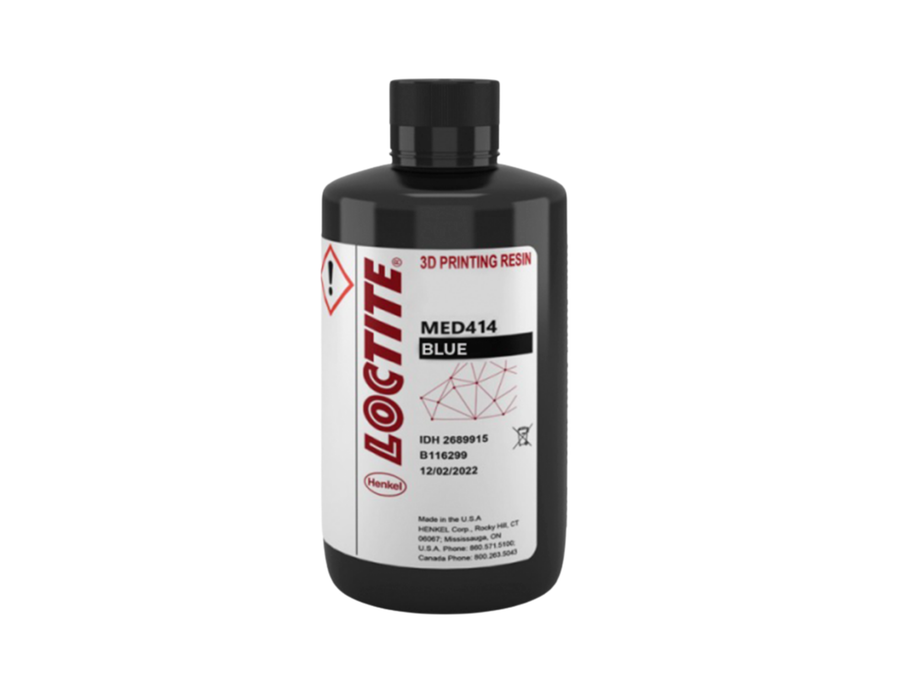

LOCTITE LOCTITE 3D MED414 Resin - (1kg)
LOCTITE 3D MED414 Resin is a medical-grade, soft photopolymer resin designed for elastomeric medical devices and skin contact applications. It offers true elastomeric behavior, exceptional tear strength, and torsional flexibility. With a TPO-free composition, it meets ISO 10993-5 & -10 biocompatibility standards. Features include a balance of strength and elongation, excellent tear resistance, and a vibrant blue color option with high print resolution. Ideal for durable and flexible healthcare applications.
- True elastomeric behavior, flexible and comfortable.
- Meets ISO 10993-5 & -10 biocompatibility standards.
- Exceptional tear resistance, torsional flexibility.
| List Price: | $450.00 |
|---|---|
| Price: | $450.00 |
| Price: | $... |
| Order Now: | Ships calculating... Free U.S. Shipping |
LOCTITE 3D MED414 RESIN
Medical Resins Designed for Durability

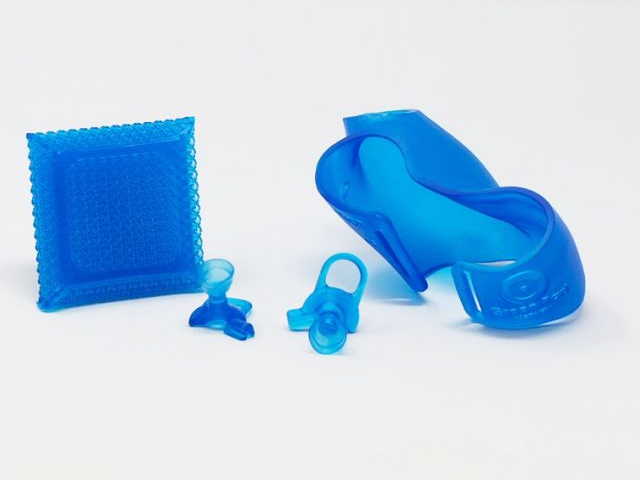

LOCTITE MED414, a cutting-edge medical-grade soft photopolymer resin designed for optimal performance in elastomeric medical device and skin contact applications. This innovative material boasts exceptional elongation and tear strength properties, providing a true elastomeric behavior with superior torsional flexibility and a balanced mix of strength and elongation. Its TPO-free composition ensures compliance with ISO 10993-5 & -10 standards for biocompatibility, making it a trusted choice for healthcare settings.
Key Features of the PRODUCT:
- True elastomeric behavior for flexible and comfortable applications
- Exceptional balance of strength and elongation for durability and performance
- Excellent tear resistance and torsional flexibility for versatile usage
- TPO-free composition meeting ISO 10993-5 & -10 standards for biocompatibility

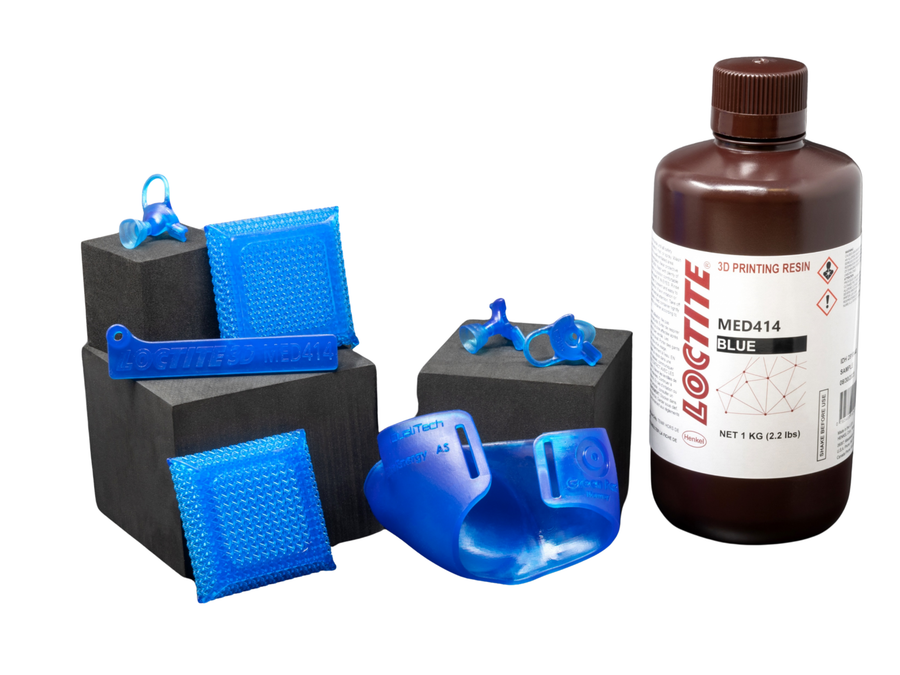

- Vibrant blue color option and high print resolution with low shrinkage for aesthetic appeal and precision craftsmanship
Technical Specifications
- Cytotoxicity: Passed ISO 10993-5 standard
- Irritation & Skin Sensitization: Passed ISO 10993-10 standard
- Tests for Irritation: Passed ISO 10993-23 standard
- Stress at Break: 4 MPa
- Elongation at Break: 240%
- Tear Strength: 16 kN/m
- Shore A Hardness: 50
Note: ISO & ASTM standard results are valid when using an approved Henkel-validated workflow.
| Mechanical Properties | Measure Method | Green | Post Processed (Broad Band UV) |
|---|---|---|---|
| Stress at 50% Strain (MPa) | ASTM D412 | 0.7-0.9 [1] | 1.6-1.7 [1] |
| Stress at 100% Strain (MPa) | ASTM D412 | 1.1-1.3 [1] | 2.1-2.2 [1] |
| Stress at 150% Strain (MPa) | ASTM D412 | 1.4-1.7 [1] | 2.7-2.8 [1] |
| Elongation at Break (%) | ASTM D412 | 215-230 [1] | 220-240 [1] |
| Stress at Break (MPa) | ASTM D412 | 2.3-2.6 [1] | 3.5-4 [1] |
| Tear Strength (kN/m) | ASTM D624 | 7.5-8.5 [1] | 13.5-16 [1] |
| Young’s Modulus (MPa) | ASTM D638 | 3-5 [1] | 9-15 [1] |
| Tensile Stress at Break (MPa) | ASTM D638 | 1.2-1.5 [1] | 2.5-2.8 [1] |
| Tensile Elongation at Break (%) | ASTM D638 | 160-170 [1] | 170-190 [1] |
| Tensile Stress at Yield (MPa) | ASTM D638 | N/A | N/A |
Workflow:
Validated workflows need to be followed to achieve properties as provided in the TDS. Examples of validated workflow steps are listed below. Users should defer to the most current workflow information for the best results which can be found here
Printer Settings:
LOCTITE 3D MED414 BL is formulated to print optimally on an industrial DLP printer. Read the safety data sheet carefully to get details about health and safety instructions. Recommended print parameters:
- Shake resin bottle well before usage
- Temperature: 20°C to 35°C
- Intensity: 3 mW/cm², higher intensities can result in reduced surface quality and mechanical properties
