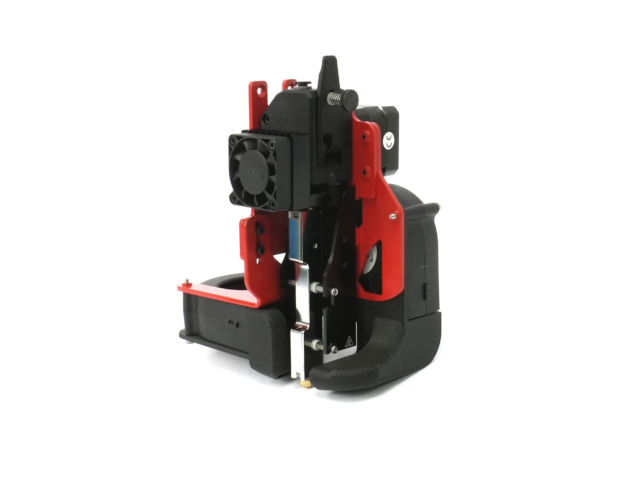

Modix Modix Griffin Ultra Print Head

The Modix Griffin Ultra Print Head, a breakthrough in 3D printing, features a super high-flow hotend capable of extruding over 500g per hour with 1.75mm filament. It has a doubled length for enhanced performance, includes dual cooling fans, and is compatible with various Modix BIG printers and Gen4 IDEX. It significantly reduces print times, maintains consistent z-axis dimensions, reduces the X-axis by 50mm, and is lightweight (900g). It supports 1.6mm nozzle diameters with a layer height range of 0.3-1.2mm.

  • Super high-flow, extrudes over 500g/hr
  • Doubled length, dual cooling fans
  • Compatible with Gen4 & Gen3, lightweight design
List Price: $1,000.00
Price: $1,000.00
Price: $...
Order Now: Processed Immediately MatterHackers Shipping Truck Ships via Freight - some fees may apply.
Request Quote
loading...
Product No. M-0A6-FTMP

Modix Griffin Ultra Print Head

A True Game-changer

Introducing the Griffin Ultra Print head, the latest innovation from Modix, designed to revolutionize 3D printing capabilities. With its super high-flow hotend, the Griffin Ultra boasts an impressive extrusion capacity of over 500 grams per hour using 1.75mm filament. This powerhouse features double the length of the Griffin High-Flow, quadrupling the standard Griffin, along with dual massive cooling fan blowers, ensuring optimal performance. Say goodbye to lengthy print times, as what once took 12 hours can now be completed in just 2 with the Griffin Ultra.

Key Features of the Modix Griffin Ultra Print Head:

  • Super high-flow hotend capable of extruding over 500 grams per hour
  • Doubled length compared to the Griffin High-Flow, with dual massive cooling fan blowers
  • Compatible with Gen4 & Gen3 Modix BIG printers, as well as Gen4 IDEX configurations
  • Maintains nozzle height for consistent print dimensions on the z-axis, while reducing X-axis by 50mm
  • Lightweight design at 900 grams, supporting nozzle diameters of 1.6mm and offering a layer height range between 0.3-1.2mm

Technical Specifications:

  • Compatibility: Compatible with both Gen4 & Gen3 Modix BIG printers, as well as Gen4 IDEX configurations (including IDEX upgraded Gen3).
  • Nozzle Height: Due to higher mounting, the nozzle is at the same height as Griffin, ensuring no reduction in print dimensions on the z-axis.
  • Axis Reduction: Reduces X-axis by 50mm; Y-axis is affected only in IDEX configuration and is reduced by 50mm.
  • Print Head Weight: 900 grams (including motor, BMG, etc.).
  • Nozzle Diameters: 1.6mm, compatible with standard Griffin (volcano) nozzles.
  • Layer Height Range: Between 0.3mm to 1.2mm.
  • Print Speed: Up to 250mm/sec (with thin layers of 0.3mm).
  • Flow Rate: 160mm³/s @ 1.6mm nozzle with 1.2mm layer height.
