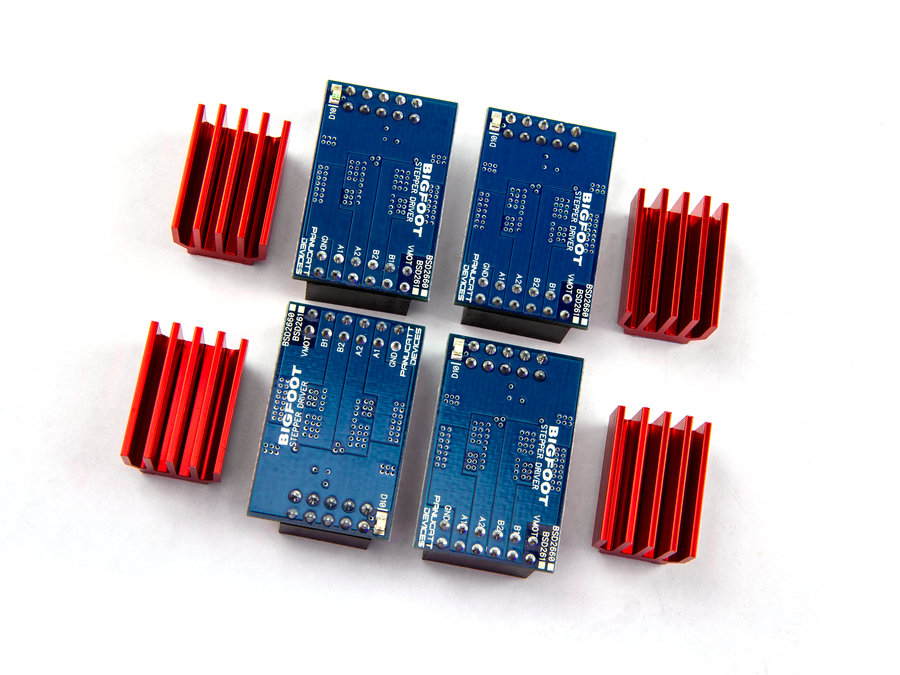

Water Jet CuttersPanucatt Panucatt SureStepr BSD2660 Stepper Driver 4 Pack
The Bigfoot stepper motor driver is based on the Trinamic TMC2660 chip and allows for greater power output to control larger machines easily and with precision by leveraging up to 1/256th microstepping. A perfect pairing with the Panucatt X5 GT controller board, these large form factor stepper drivers can handle a wide range of applications, and even take over some work from the host controller itself.
| List Price: | $55.00 |
|---|---|
For heavy-duty applications needing precision microstepping, meet the BSD2660
When building a 3D Printer for precision printing or high-torque operations, the Bigfoot stepper driver is ready to deliver the best of both worlds. Capable of driving stepper motors up to 3 Amps and microstepping down to 1/256th, the Bigfoot BSD2660 is the perfect pair for the Azteeg X5 GT 3D Printer controller board. While 1/256th microstepping is technically possible with other driver boards, the BSD2660 can be configured to interpolate microstepping directly on the chip, taking that load off the main controller's processor and freeing up valuable processor cycles. This method is recommended for performance reasons with any microstepping above 1/16th. Due to the higher current these boards can accommodate, they are physically larger, have larger heat sinks, and are only compatible with the X5 GT.
Features and Specs:
- Up to 3 Amps max peak output
- Low RDSon Mosfets, runs cool
- 28V max supply input
- SPI communication with host controller
- 1, 1/2, 1/4, 1/8, 1/16, 1/32, 1/64, 1/128 and 1/256 microstepping modes
- Highly customizable driver profiles
- Bottom mounted components for better heat dissipation
- 4 Layer 2oz PCB
- Comes with large red anodized heatsink
