UltiMaker UltiMaker S5 Air Manager

Fully Enclose the build area of your UltiMaker S5 for more consistent prints

Ideal for all materials and required for advanced composites, having a fully enclosed build area is recommended due to more consistent air temperature, and therefore more repeatable, higher quality, and stronger prints. Materials like ABS and Nylon can warp and come off the print bed if the temperature isn't controlled properly, so the UltiMaker S5 Air Manager receives fan settings specific to these and other materials from the material profile. If the fan should be off to keep the warm air inside, the UltiMaker S5 will automatically do so.

Designed for use exclusively with the UltiMaker S5 for enhanced features

When creating a 3D printer enclosure, the main goal is stopping the flow of colder, outside air into the build area. A generic enclosure can do an ok job of this by closing off the top of the machine, but this official Ultimaker accessory connects directly to your printer and pulls settings from the material profile in Cura. In addition to ideal fan settings, the UltiMaker S5 keeps track of how much the fan has been used to alert you when it's time to change filters, making sure you always keep your workshop smelling fresh without the need to track it yourself. The UltiMaker S5 Air Manager takes the work of maintaining build area temperature and filter quality off your plate, letting you focus on the application.

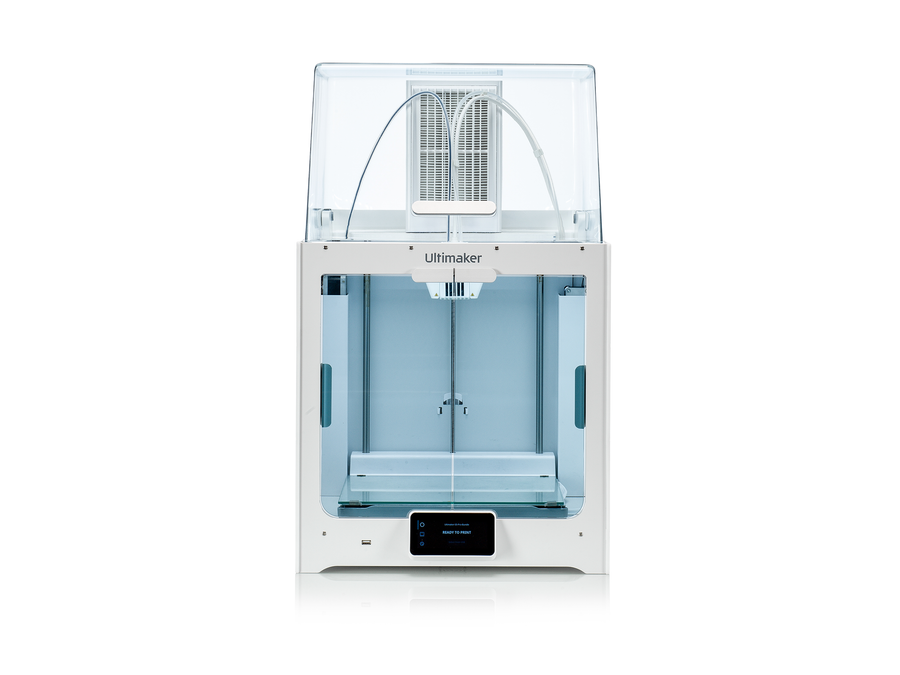

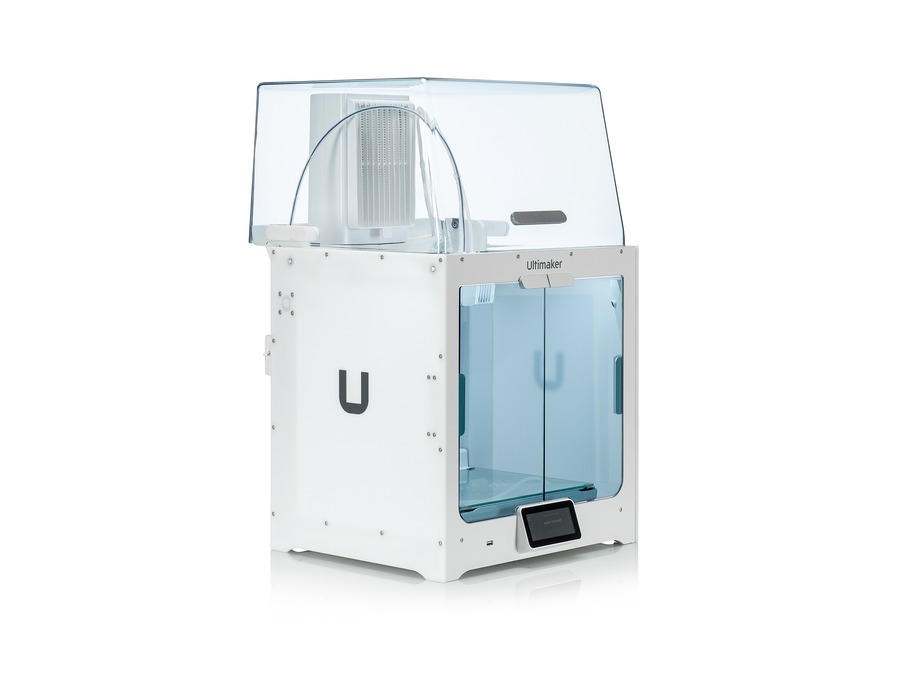

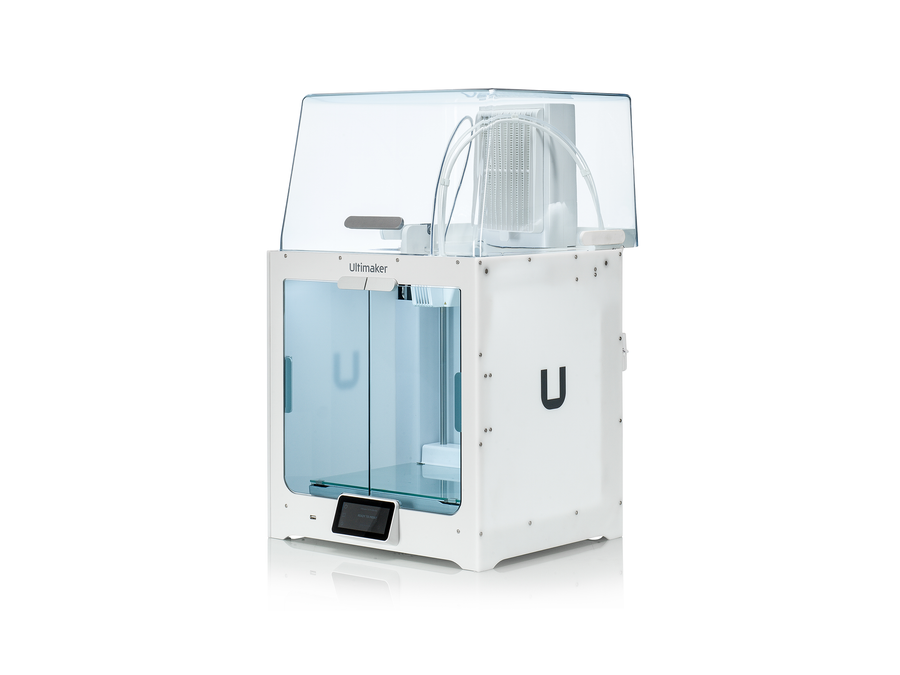

The UltiMaker S5 3D Printer with the Air Manager on top

Hinged action and clear material allow for unrestricted access to your UltiMaker S5

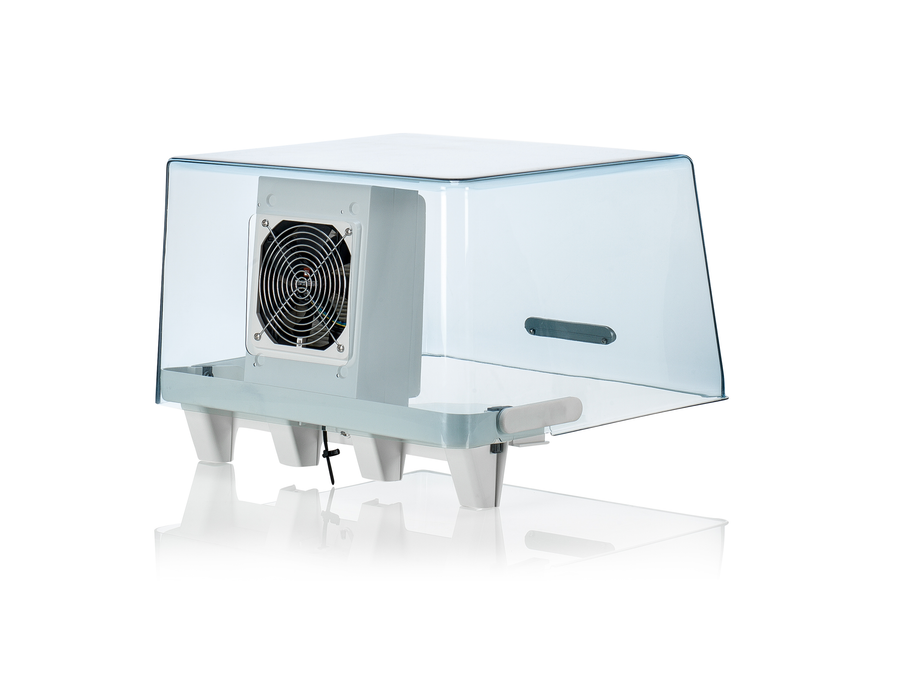

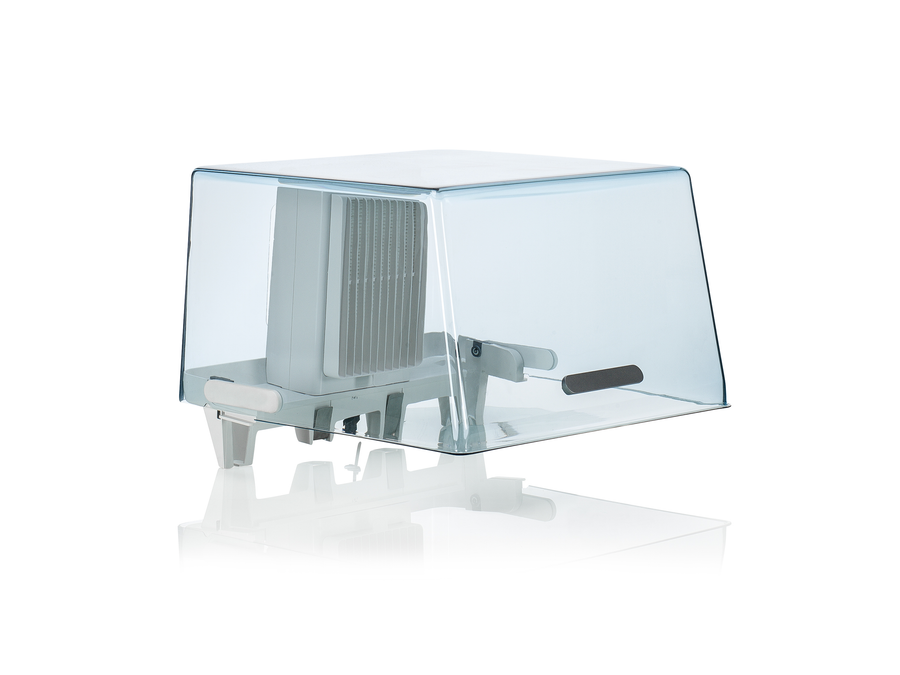

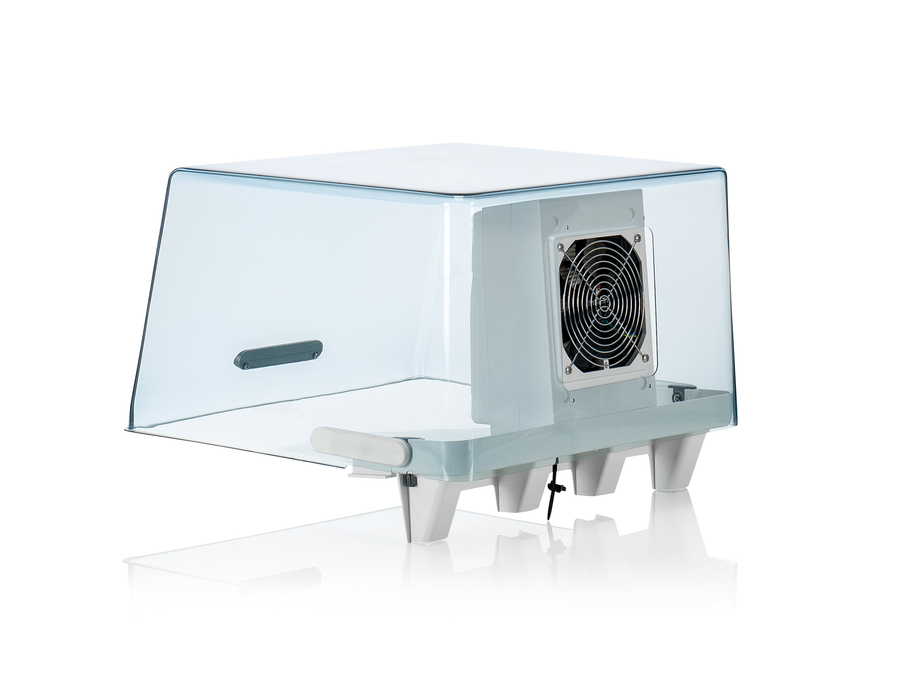

The UltiMaker S5 Air Manager adds a top mounted enclosure to the 3D printer, but still provides a clear view of the print head and build area from above thanks to the clear material used. In the event you need to access the print head from above, and for filter changes, the entire cover has a hinge that allows for easy lifting and maximizes availability to any part of the UltiMaker S5 even with the Air Manager installed. Created by Ultimaker specifically for the Ultimaker S5, the Air Manager blends seamlessly into the machine, creating a truly upgraded experience by adding features without sacrifice.

Technical Specifications

• Dimensions: 490 x 503 x 350mm (19.3 x 19.8 x 13.8in)
• Weight: 3.6kg (7.9lbs)
• Printer Compatibility: Ultimaker S5
• Material Compatibility: Anything supported by the Ultimaker S5
• Filter Type: EPA
• Filter Life: Estimated 1500 print hours
• Warranty Period: 12 months

What's in the box?

• UltiMaker S5 Air Manager
• Mounting Bracket
• Filter Housing
• Filter
• Cover
• Air Manager Cable (UMB Cable)
• Cable Clips x3
• Removal Tools
• Hex Key 2.5mm
• Hex Bolts M4 x 16mm 4x

The Hex Key and bolts are for the attachment of a hose mount, for optional attachment of an external filter or air management system.
