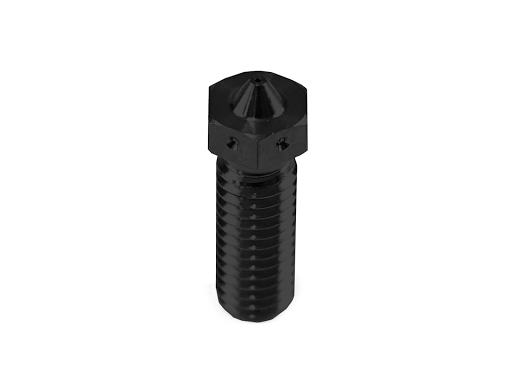

E3D E3D Volcano Nozzle - Hardened Steel - 1.75mm x 0.60mm

E3D Volcano nozzles are designed with speed in mind. They excel at large layer heights with extremely high flow rates in order to reduce print time. E3D offers an excellent selection of 3D printer nozzles, and these hardened steel units are a must have! They've post-processed their steel 3D printer nozzles with a combination of thermal and chemical treatments to keep you printing in carbon fiber, metal, and other abrasive filaments without fear of wear and tear. All volcano nozzles are marked so that you know exactly what size you are working with.

List Price:	$25.49

Product No. M-U8R-TWYQ

If you prefer printing with larger layer heights, the Volcano is the hotend/nozzle combo that you've been waiting for!

The nozzle has a longer heated zone when compared to most hotend nozzles. This means that the filament is heating slightly faster, therefore it has accelerated melting speeds.

If you've been printing carbon fiber, metal, or other abrasive filaments with a brass nozzle, you might have noticed they accumulate some pretty significant wear and tear after printing for awhile. E3D decided to do some testing to get a better idea of what the wear rate is on their standard brass nozzles.

The nozzle on the left is a new, un-used nozzle, and the nozzle on the right printed 250g of ColorFabb XT-CF20 filament. As you can see, the results are striking. The tip is worn down from abrasion, and even worse is the diameter of the nozzle being opened up.

E3D has been offering stainless steel nozzles for some time, and while they are naturally wear resistant (tested to be around 30% of the wear rate of brass nozzles), they weren't specifically designed with abrasive materials in mind.

The solution? Material science! By post-processing steel nozzles with a combination of thermal and chemical treatments, E3D created an extremely hard and wear resistant nozzle to tackle all of your specialty prints.

The nozzle on the right is the previously pictured brass nozzle after printing 250g of carbon fiber filament. E3D's "Hardened Nozzle" on the left is pictured after printing 2.5 KG of not only carbon fiber filament, but glass filled filament as well. That's ten times the amount of material that the brass nozzle was put through, with no observable wear!

The dark, sometimes uneven looking coloration is normal, and is caused by the thermal and chemical treatments.

You can easily identify all the nozzles in the series by looking at the markings on the flats of the hex head. See below to help you identify what each set of markings means in relevance to size.
