LDO Systems LDO Voron Tap Probe Kit
The LDO Voron Tap Probe Kit is an advanced Z-probe sensor upgrade for Voron 2.4R2 and Voron Trident 3D printers. It offers precise Z position measurement (0.4 μm), compatibility with any build surface, and reliable performance up to 100°C. The kit includes a tap photosensor, stainless steel linear rail, and a comprehensive hardware kit. Printed parts are NOT included.
- High precision Z-probing (0.4 m accuracy)
- Compatible with any build surface
- Breakaway protection for extreme crashes
| List Price: | $23.90 |
|---|---|
| Price: | $23.90 |
| Price: | $... |
LDO Voron Tap Probe Kit
NOZZLE-BASED Z-PROBING
The Voron Tap Kit upgrade is an alternate Z-probe sensor method for the Voron 2.4R2 and Voron Trident. Using a rail, magnets, and sensor, the entire toolhead moves to trigger an optical switch. With quality parts produced by trusted industry-leaders LDO, the Voron Tap Probe Kit offers the following benefits:
- Can measure your Z position with a precision of 0.4 μm (0.0004mm)
- Compatible with any build surface, minimizing need to recalibrate after changing nozzles or build plates
- Safely operates at up to 100°C and will not degrade over time like a contact switch or inductive probe
- Uses a single ‘activate_gcode’ macro in the [probe] config to provide consistent probing temperatures
- Breaks away on extreme crashes, saving you from hidden breakage elsewhere
- The nozzle and bed are protected from minor crashes
- No need for a separate Z endstop

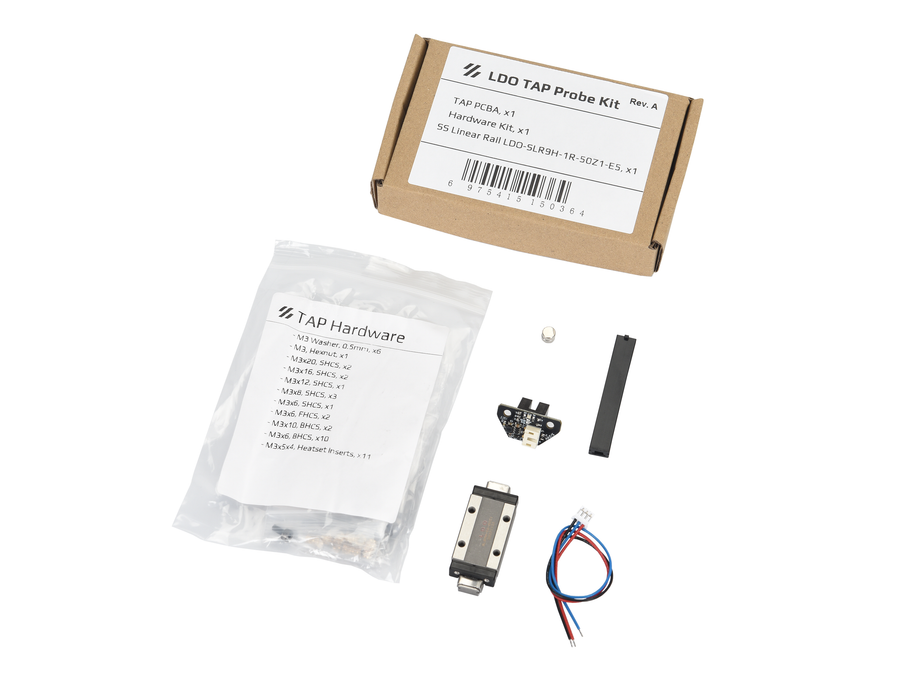

What's Included in the LDO Voron Tap Probe Kit?
| QTY | Item | |
| 1 | × | Tap Photosensor V2.4.1 (OPB971N51, 5-24V) |
| 1 | × | Linear Rail Stainless Steel SLR9H-1R-50Z1-E5 |
| 1 | × | Hardware Kit |
| 1 x M3 hex nut 6 × M3 washers 2 × M3x20 SHCS 2 × M3x16 SHCS 1 × M3x12 SHCS 3 × M3x8 SHCS 2 × M3x10 BHCS 1 × M3x6 SHCS 2 × M3x6 FHCS black oxide fully magnetic screws 10 × M3x6 BHCS 11 × Heatset inserts 2 × 6x3mm N35 Magnets |
*Note: Printed parts are NOT included and will need to be self-sourced/produced.
WHAT ARE THE COMPATIBILITY REQUIREMENTS TO USE THE VORON TAP KIT?
Please Ensure Your Voron 2.4R2 / Voron Trident meet the following requirements:
- Fix known mechanical issues on your printer BEFORE attempting Tap
- Have a MGN12 based X-Axis
- (MGN9 based X-axis is NOT compatible)
- Use ClockWork2 (CW2) Style Mounted Extruder
- Will NOT work with ClockWork1 (CW1)
- Mounts for LGX and Galileo are available
- Bed Mount must be secured
*For additional context and notes, see Page 9 of the Voron Design Tap Upgrade Assembly Manual.
Additional Resources
- Voron Design Tap Upgrade Assembly Manual
- Voron Tap STL's
- Voron Tap GitHub
- Voron Discord
- Voron Design Forum
- Voron Design Reddit
- Voron Tap Livestream
Please note that assistance from our Customer Service and Technical Support teams is limited to assisting with the nature of the order and providing links from the creators that may help you with your inquiry.
Return Policy
Please note that returns are not accepted on opened kits. Only new, unopened kits may be returned within 30 days of purchase. If a part from the kit is determined to be defective or missing during the warranty period, a replacement part or store credit of equal cost to the defective/missing unit will be provided.
If there is a problem with the packaging or damage during shipment, please return the product immediately. Otherwise, a return will not be offered after assembly.
